Circuit Diagram

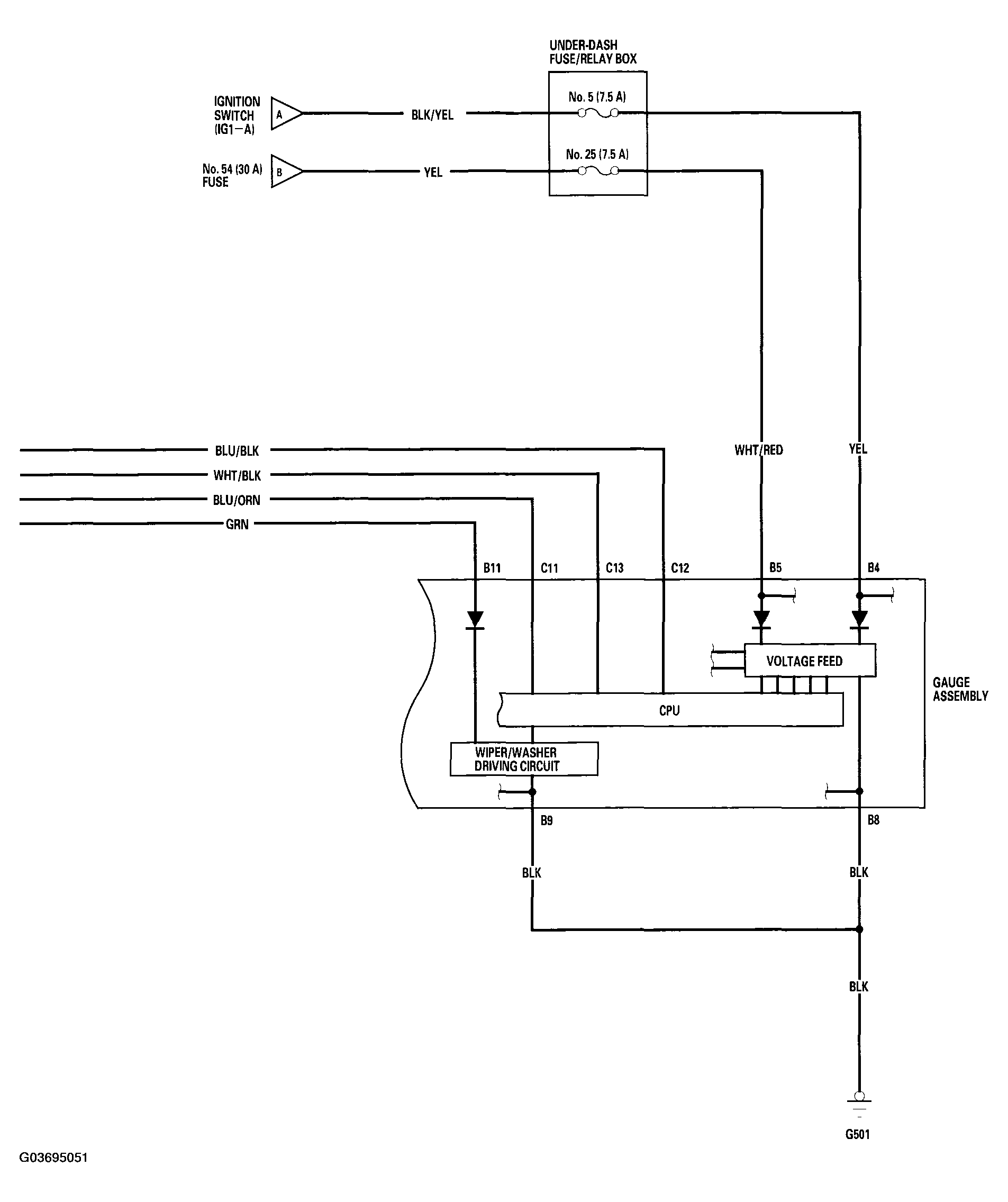

Fig 1: Identifying Wipers/Washers Circuit Diagram (00-03 Models) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

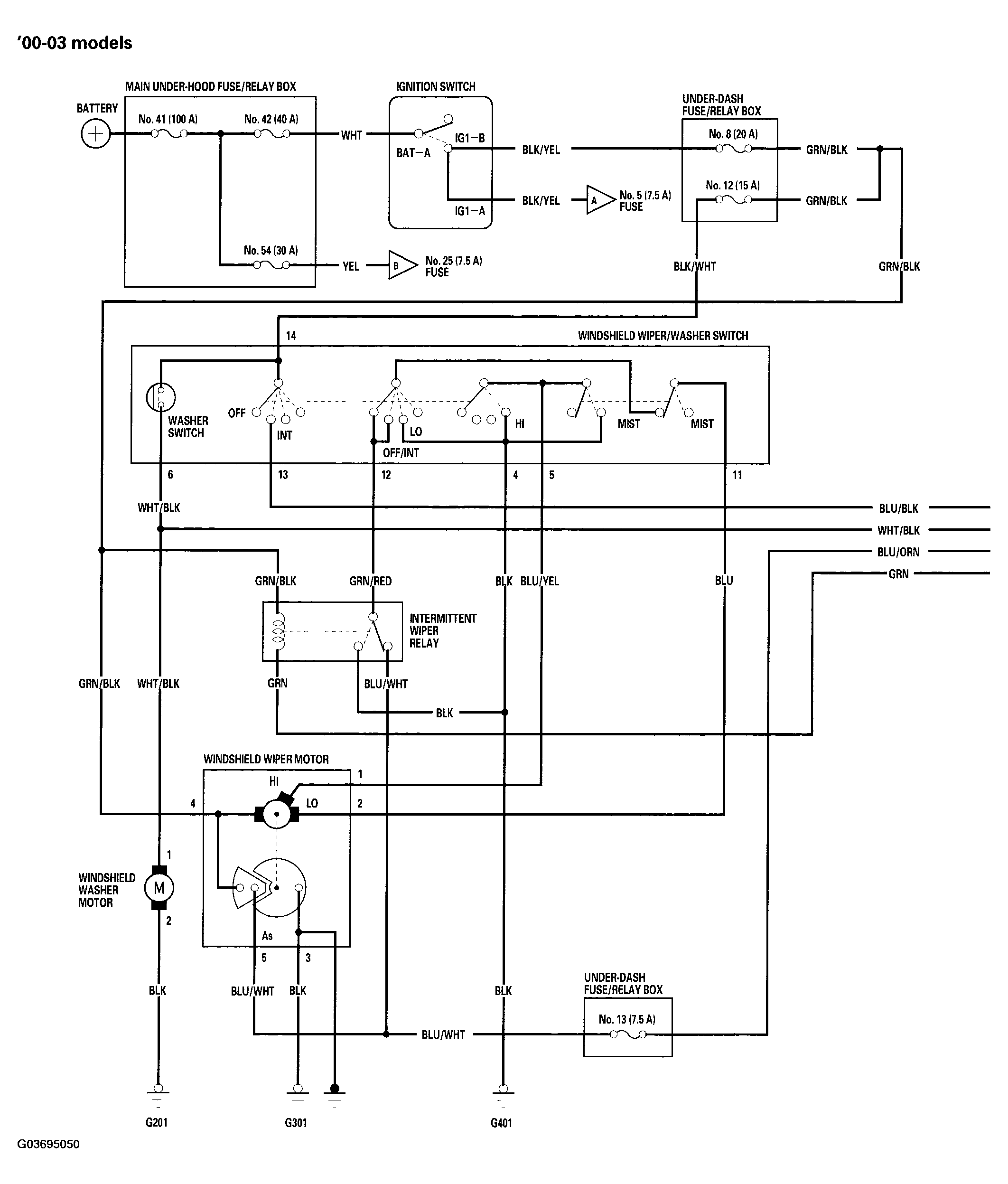

Fig 2: Identifying Wipers/Washers Circuit Diagram (00-03 Models) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

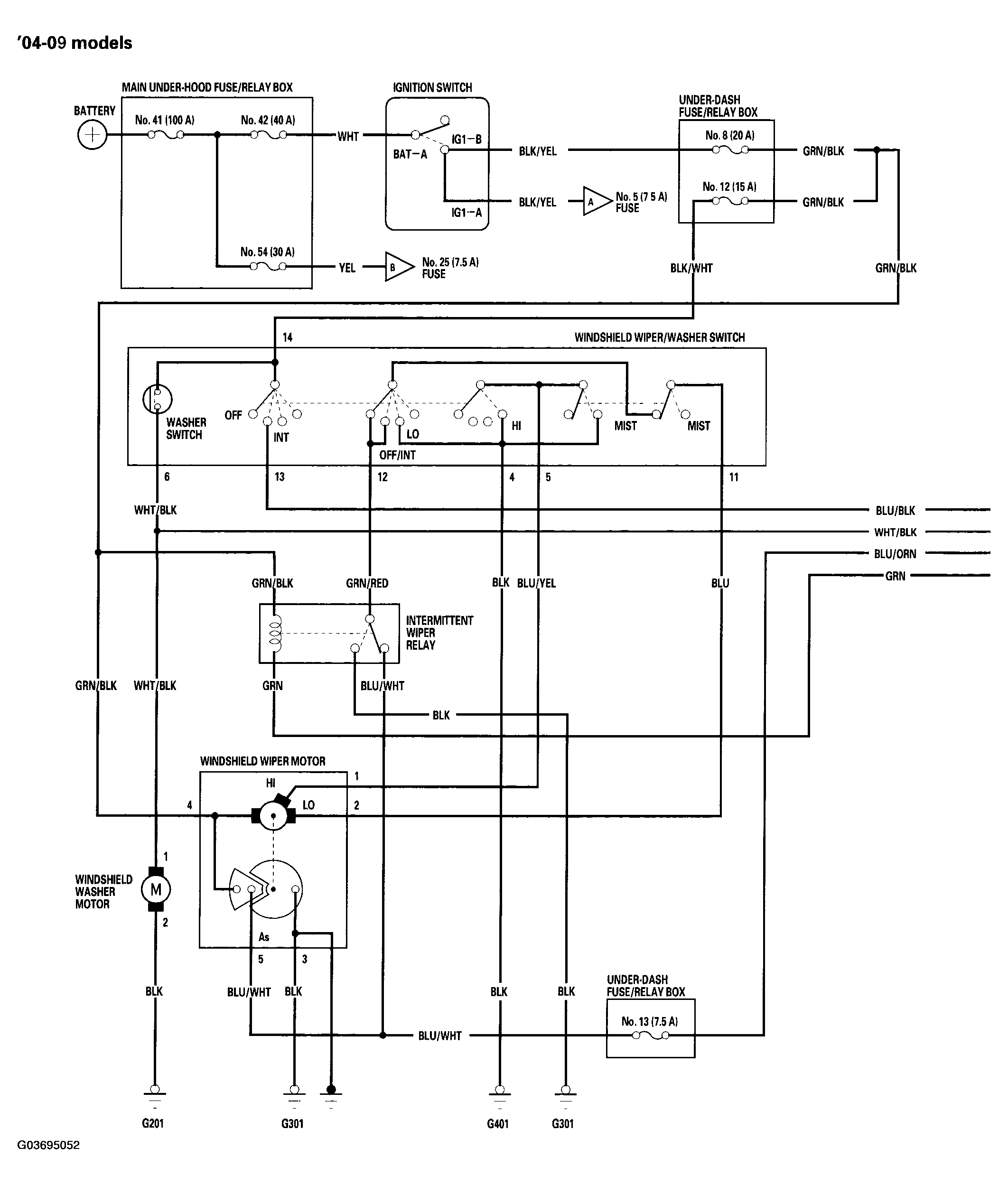

Fig 3: Identifying Wipers/Washers Circuit Diagram (04-09 Models) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

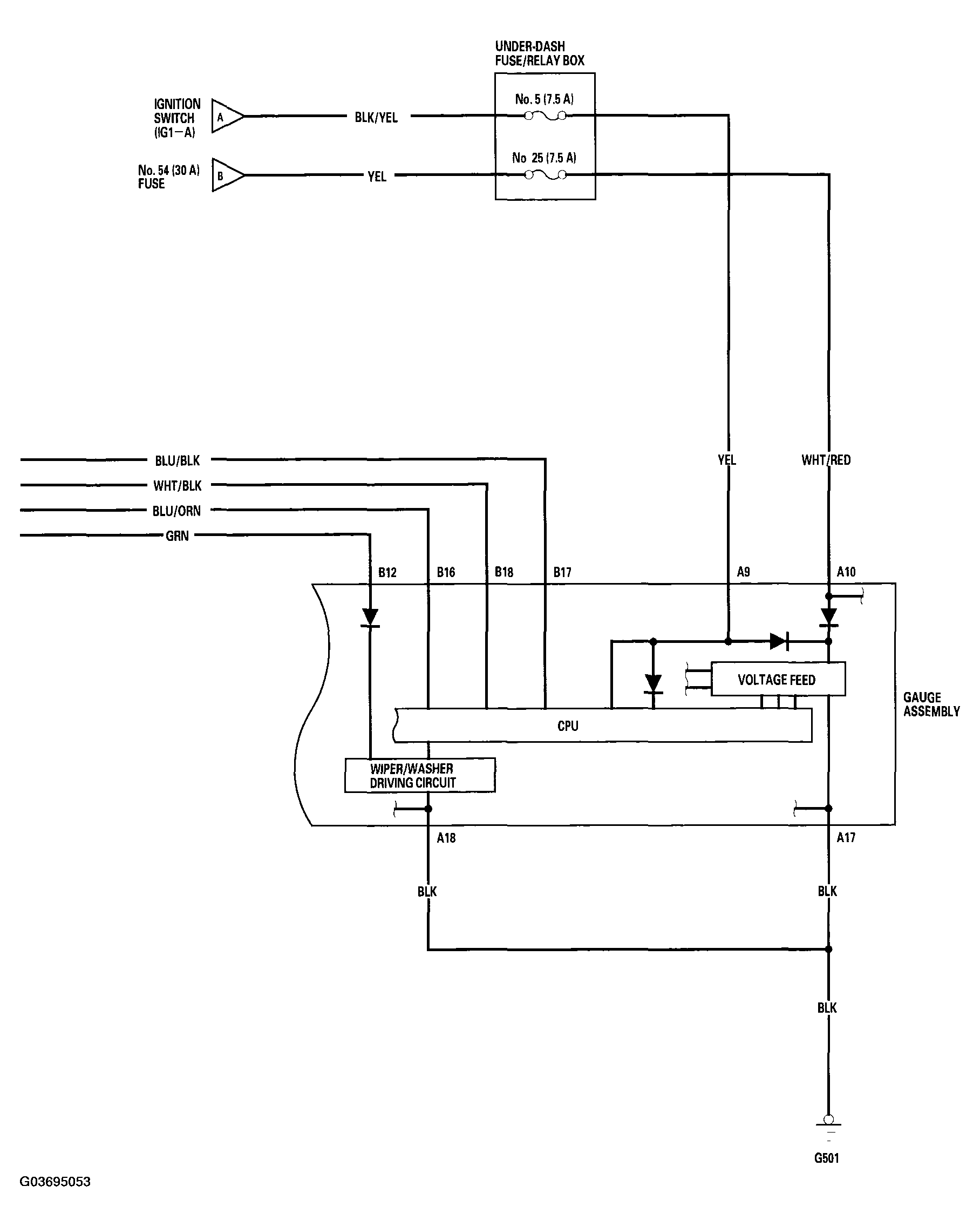

Fig 4: Identifying Wipers/Washers Circuit Diagram (04-09 Models) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
