Circuit Diagram

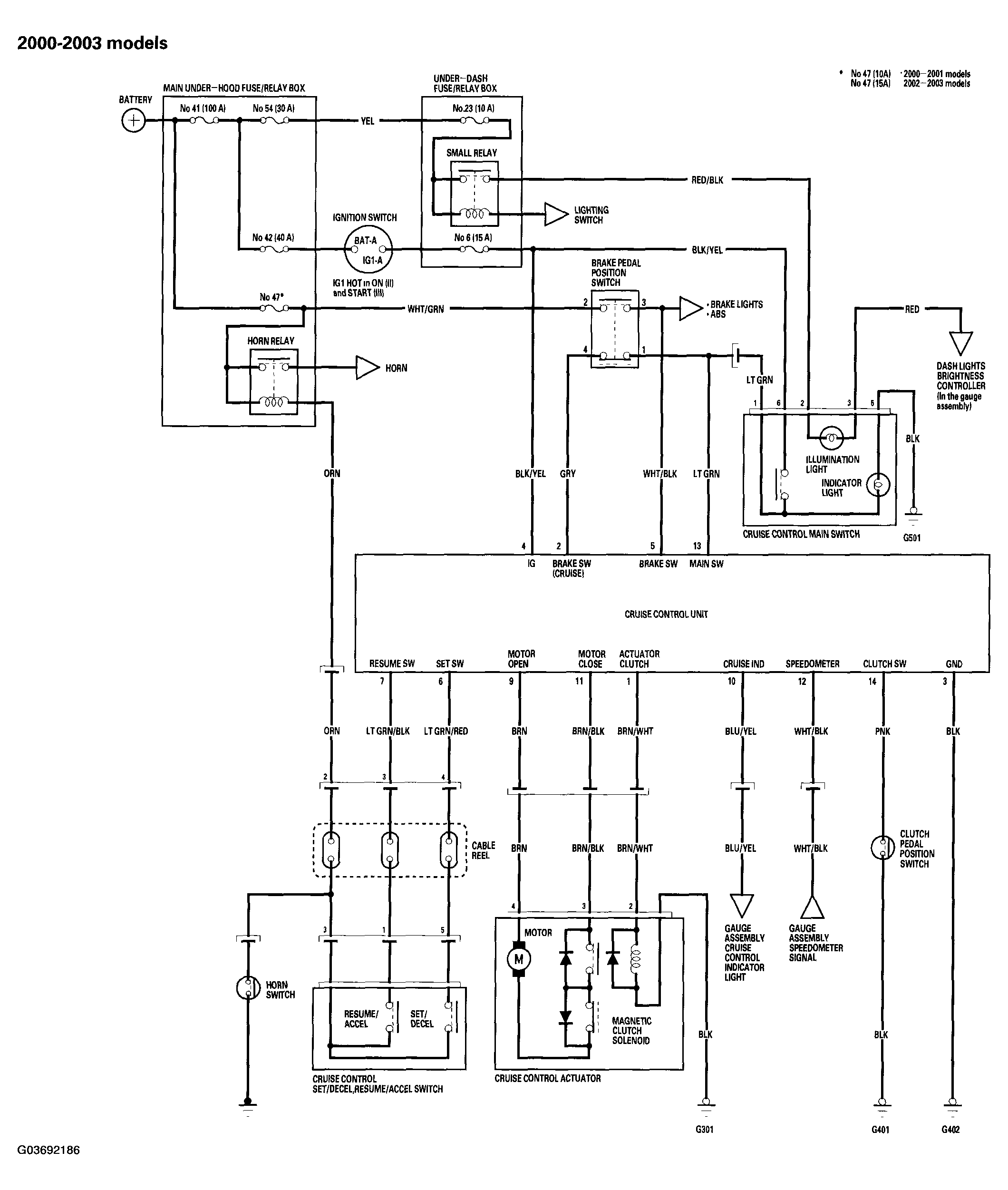

Fig 1: Circuit Diagram - Cruise Control System (2000-03 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

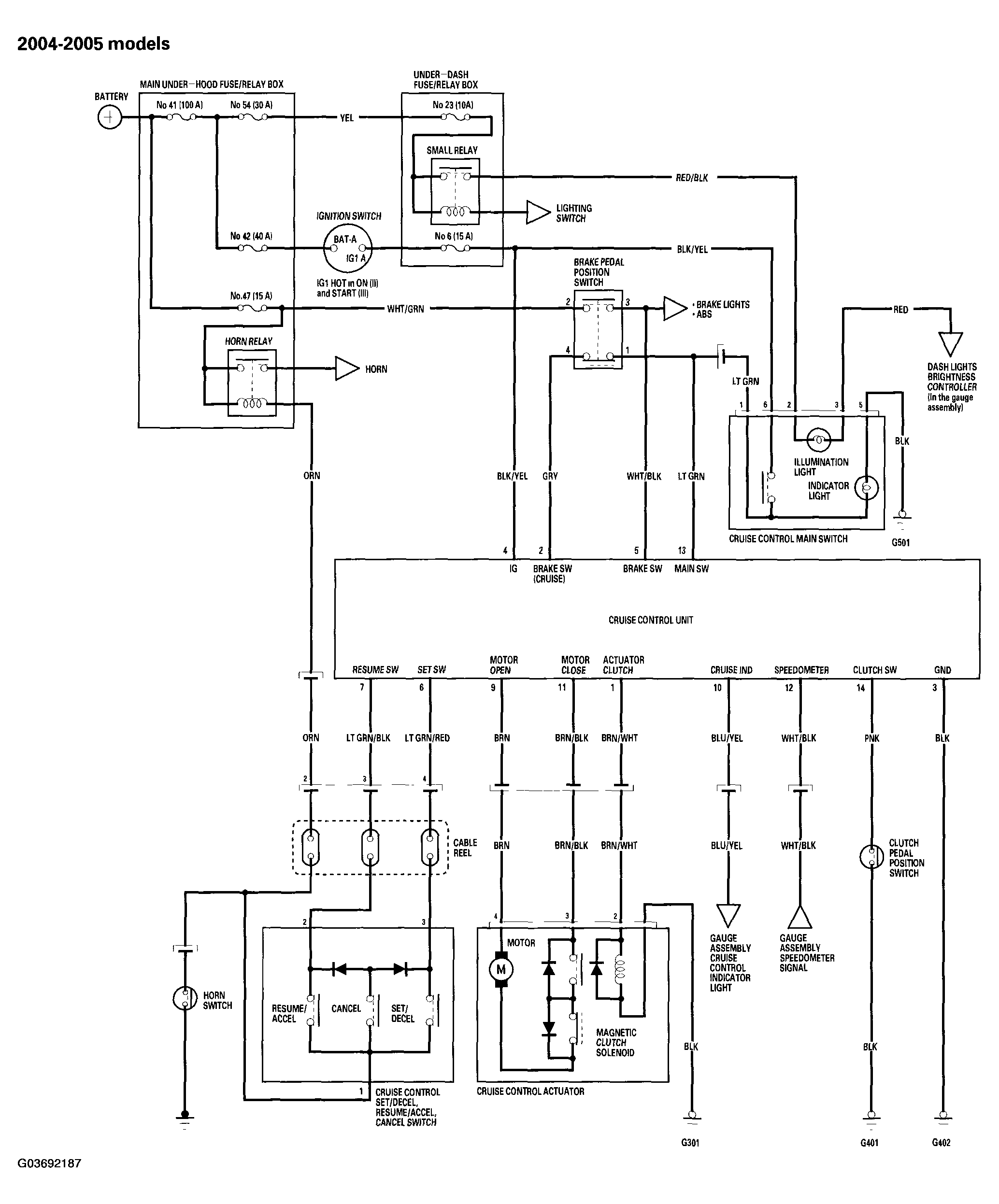

Fig 2: Circuit Diagram - Cruise Control System (2004-05 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

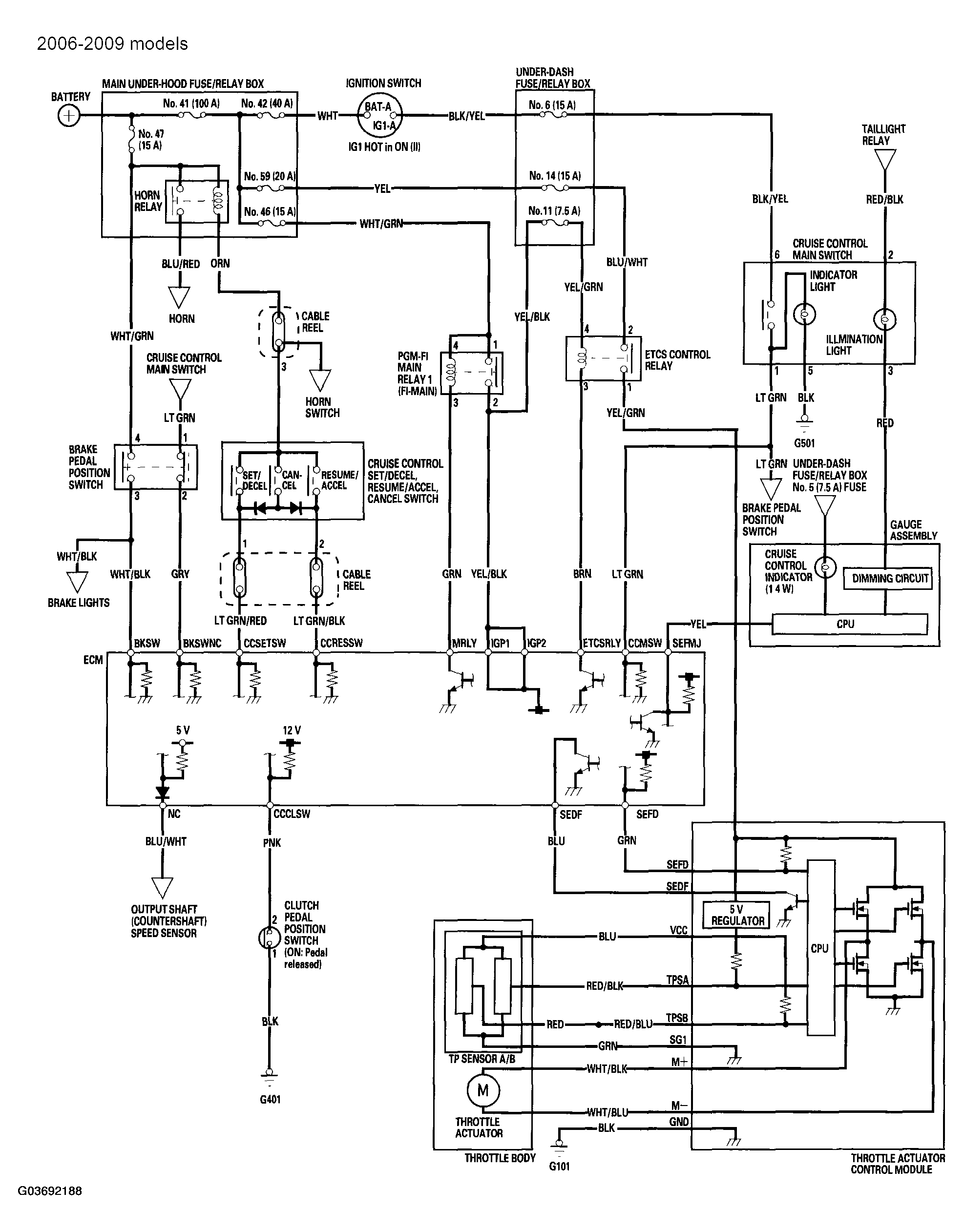

Fig 3: Circuit Diagram - Cruise Control System (2006-09 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
