Wiring Diagrams
WARNING: This page is about a different car, the 2000 Honda Civic, 1999 Honda Civic, 1998 Honda Civic, 1997 Honda Civic, and 1996 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

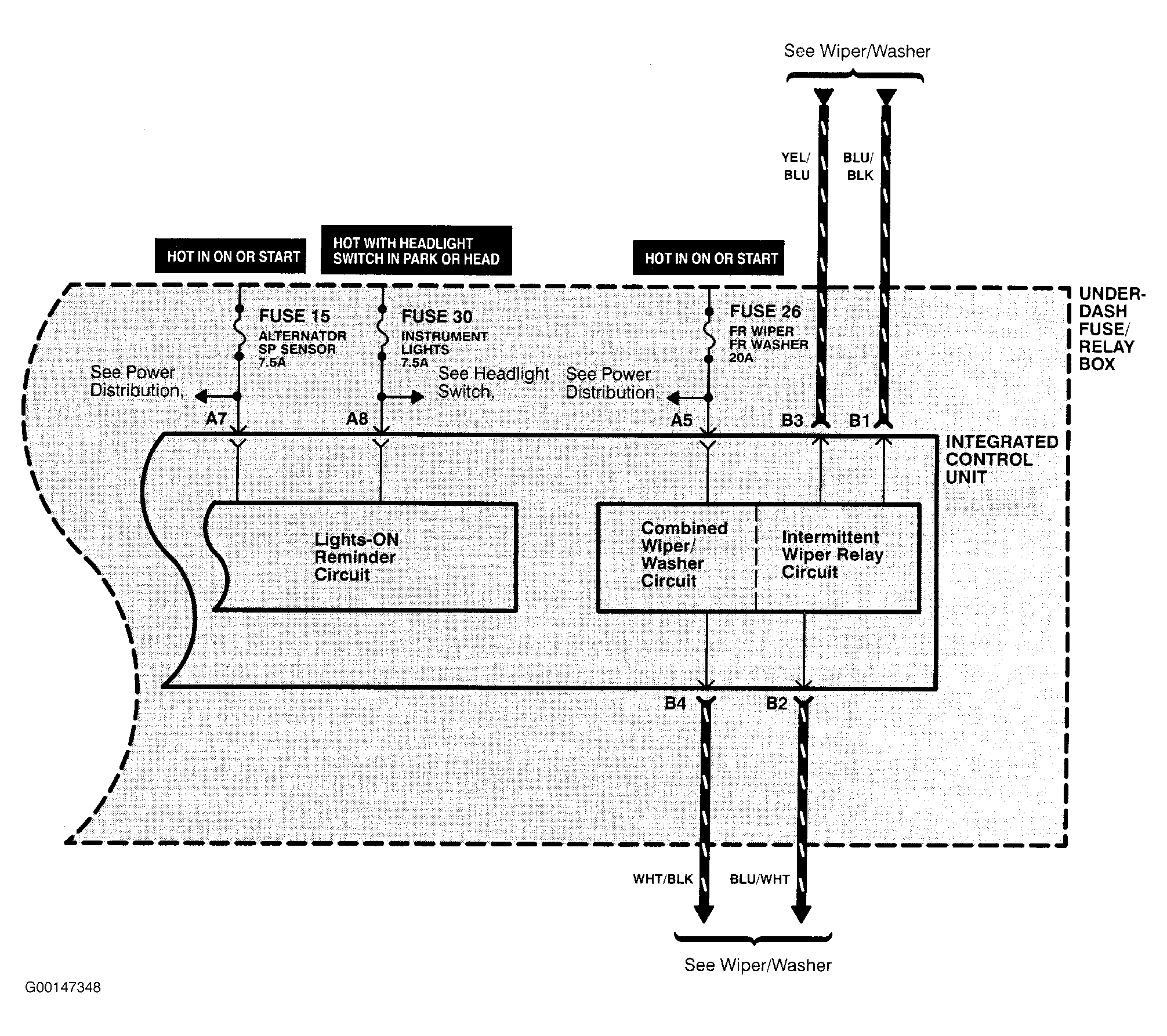

Fig 1: Identifying Integrated Control Unit Wiring Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

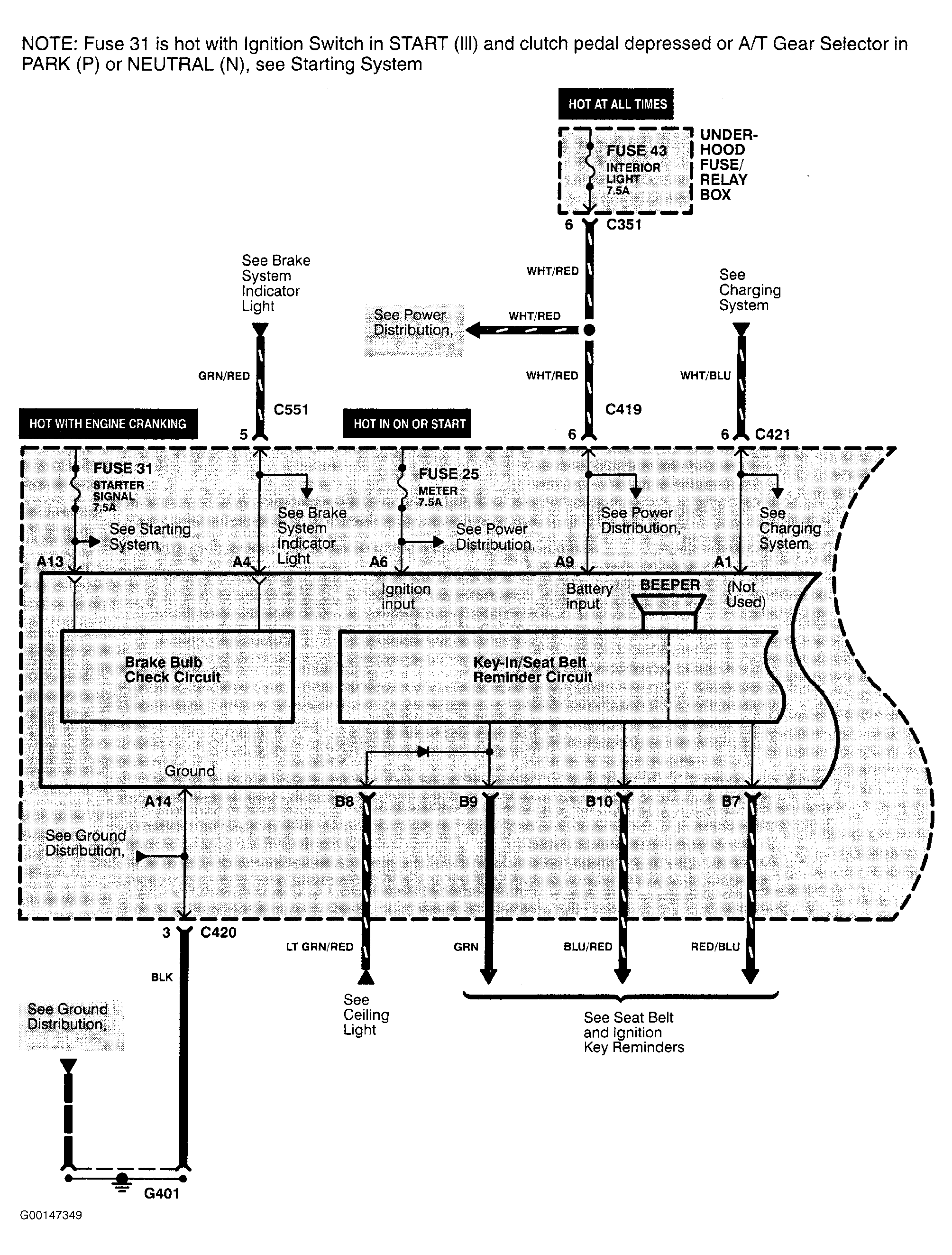

Fig 2: Identifying Integrated Control Unit Wiring Diagram (2 Of 2)
