Interior Fuse Box

NOTE: Interior fuse box is located under driver's side of instrument panel. See Fig 1 .

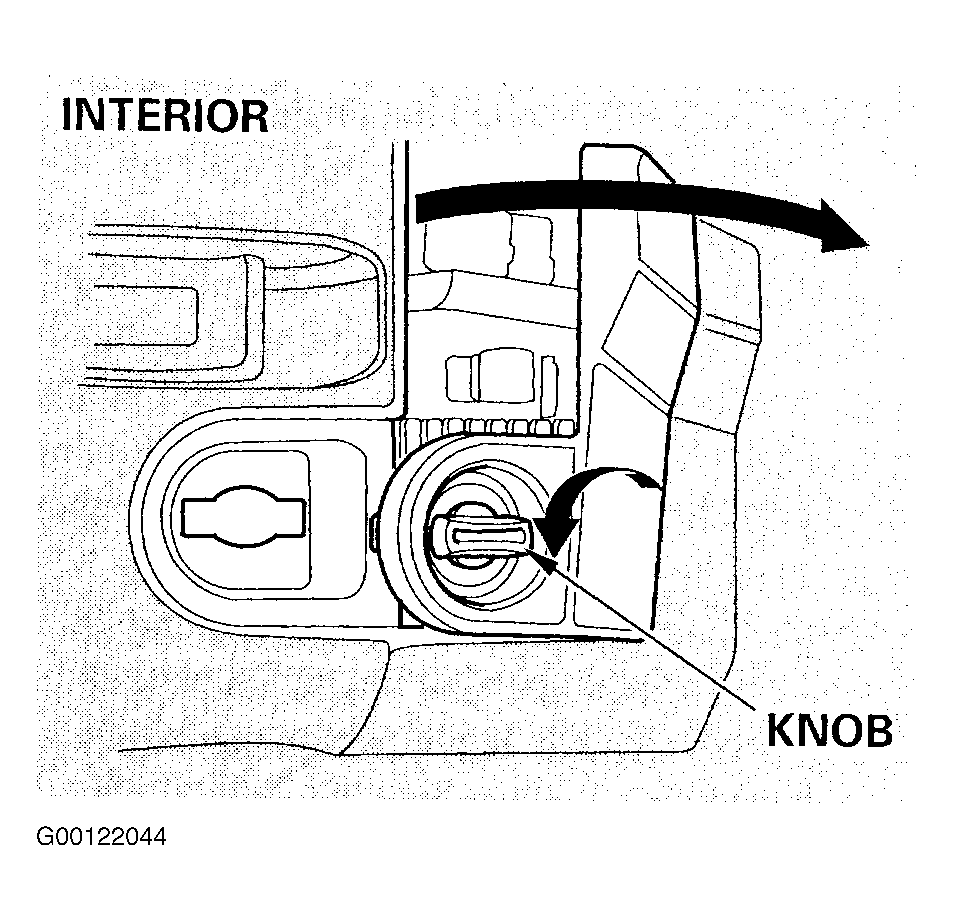

Fig 1: Locating Interior Fuse Box (2000-01)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

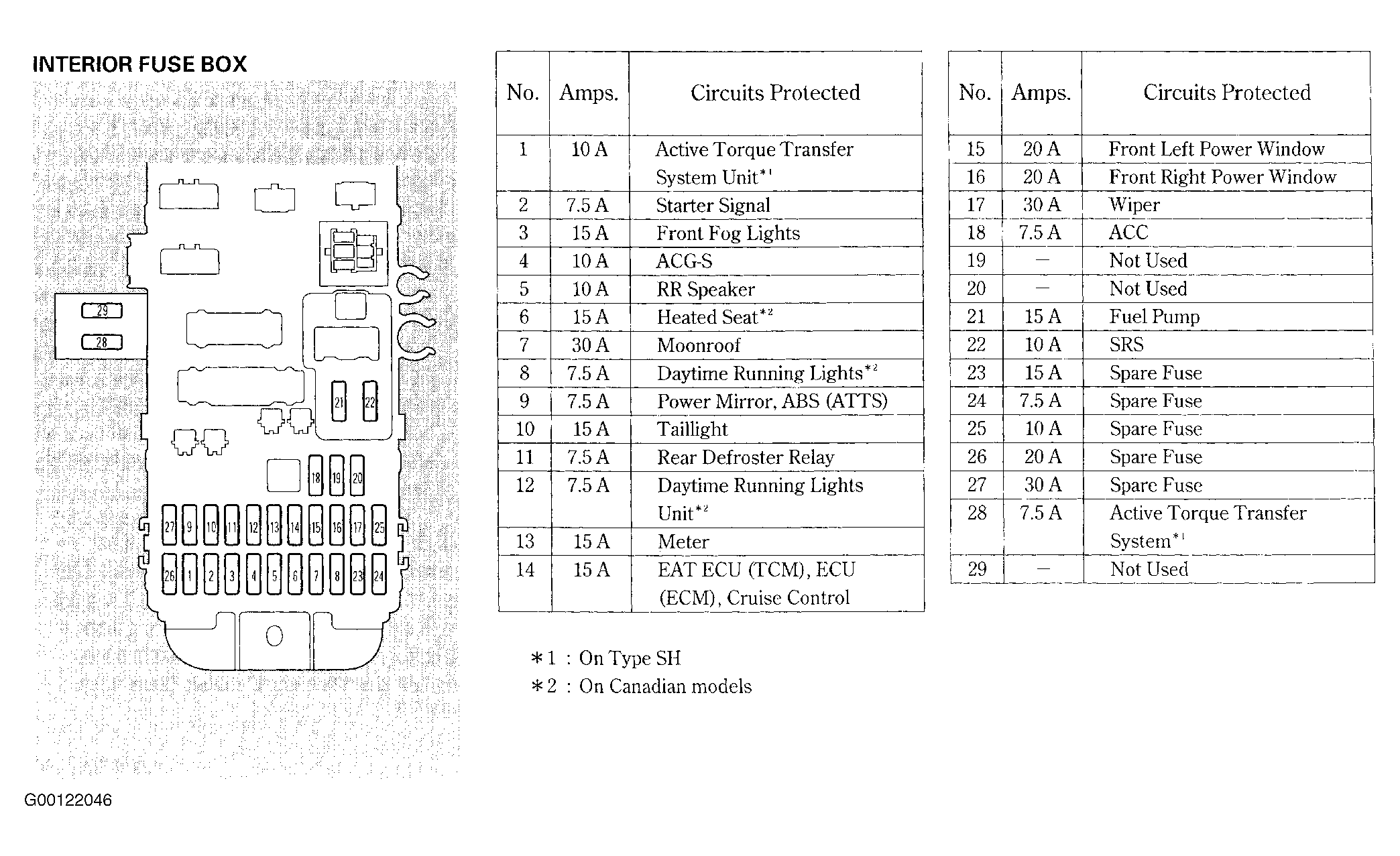

Fig 2: Identifying Interior Fuse Box Components & Legend (2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

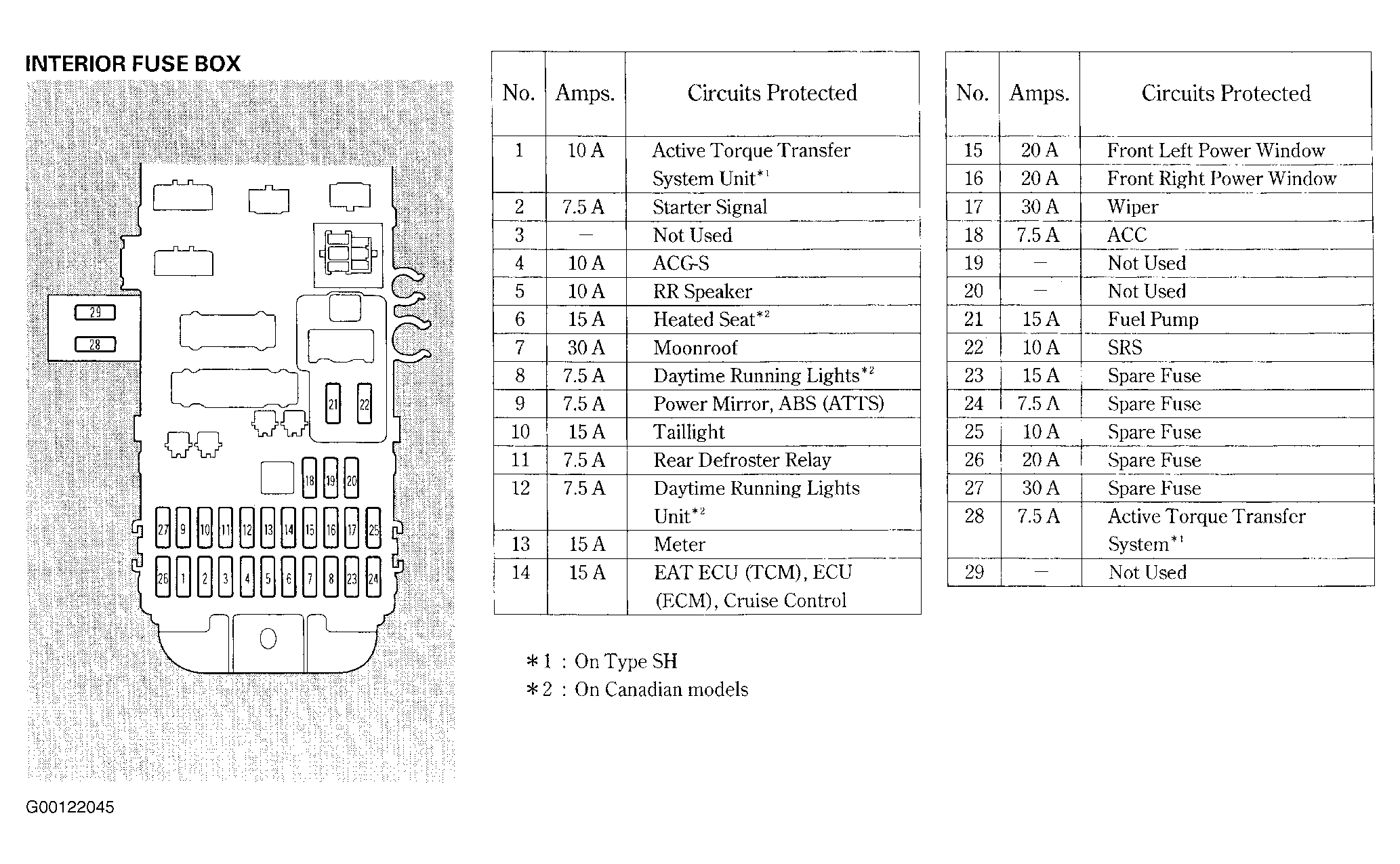

Fig 3: Identifying Interior Fuse Box Components & Legend (2001)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
