Electric Load Sensor: Locations

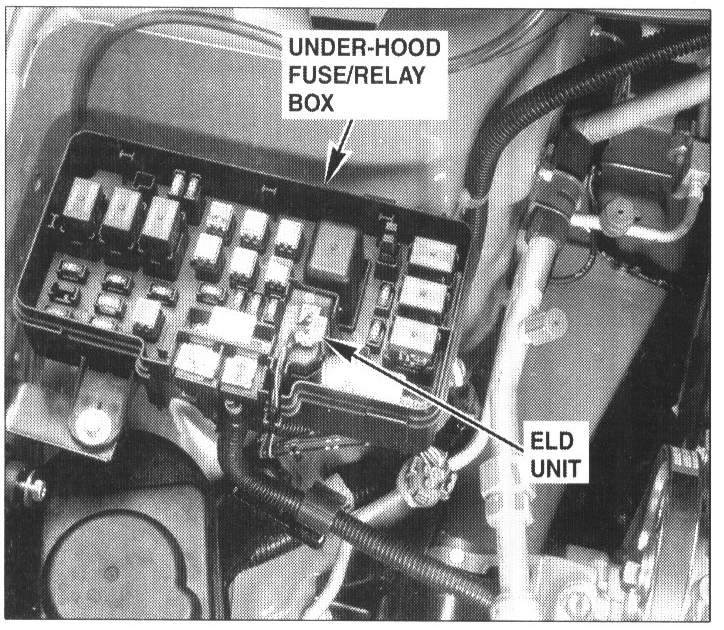

Right Side Of Engine Compartment:

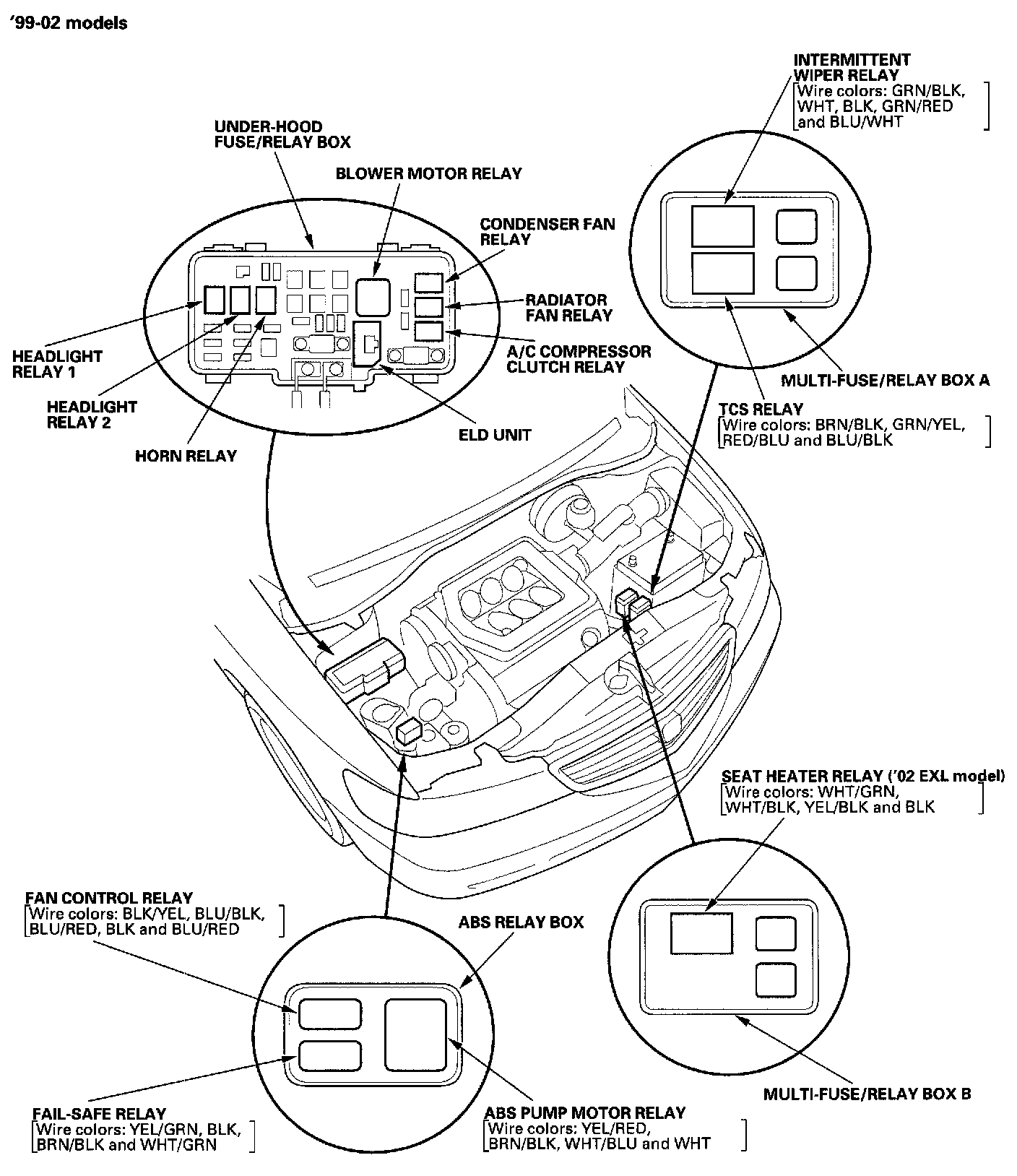

Relay And Control Unit Locations - Engine Compartment:
