Connector Locations

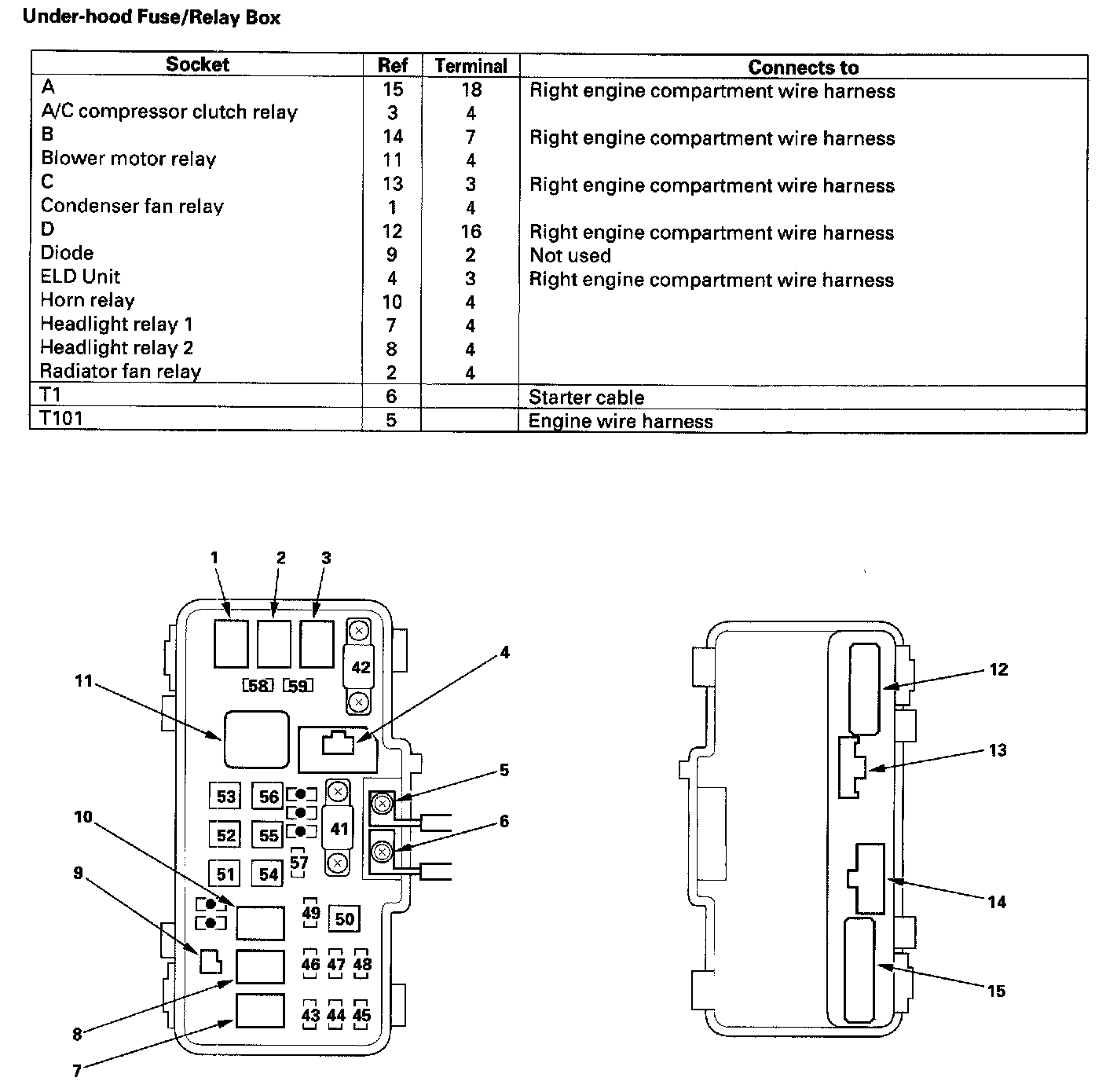

Under-hood Fuse/Relay Box:



Driver's Under-dash Fuse/Relay Box:

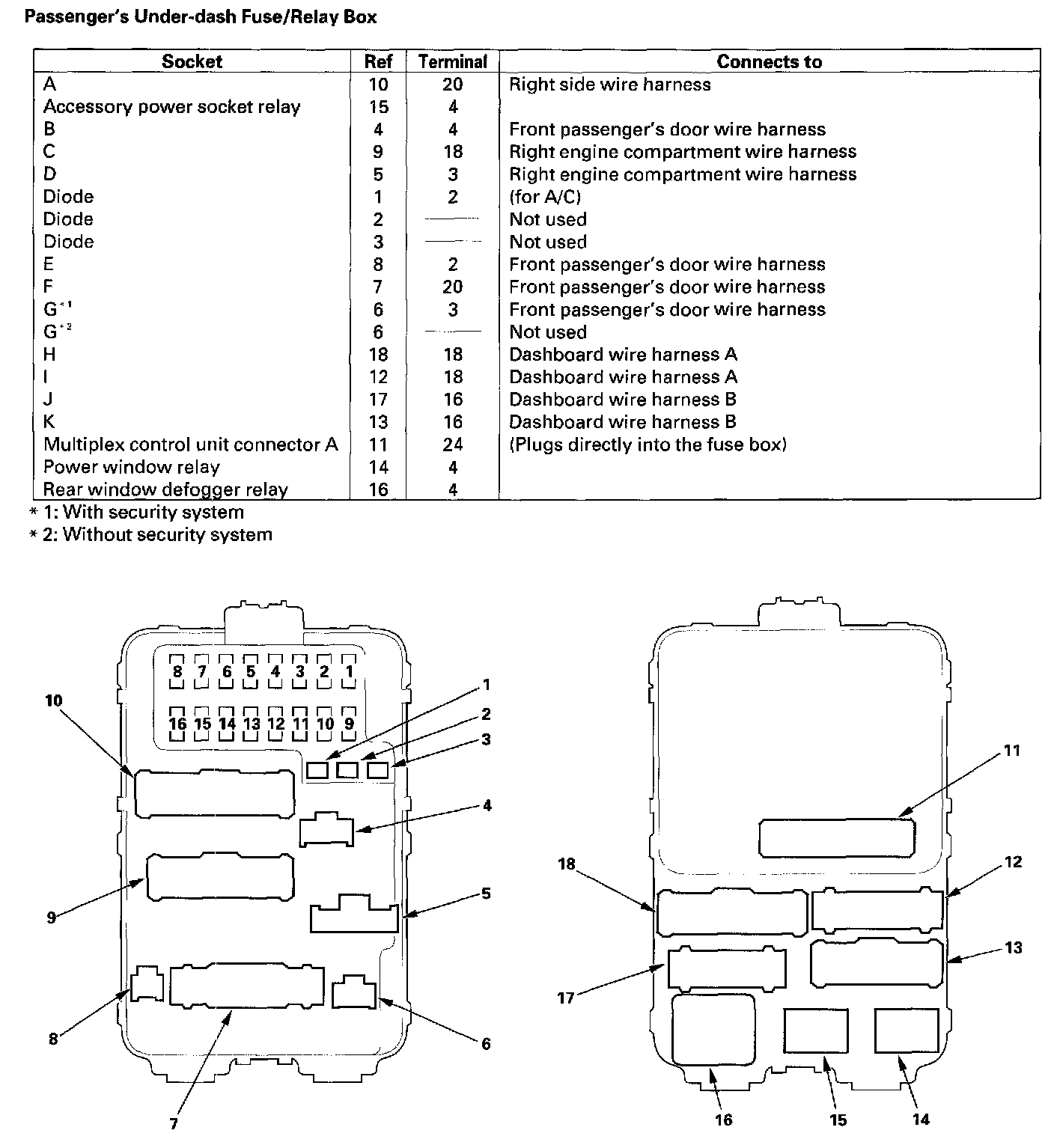

Passenger's Under-dash Fuse/Relay Box:



Multi-Fuse/Relay Box A ('99-02 Models):
