Connector Locations

Connector-to-Fuse/Relay Box Index:



Connector-to-Fuse/Relay Box Index:



Connector-to-Fuse/Relay Box Index:

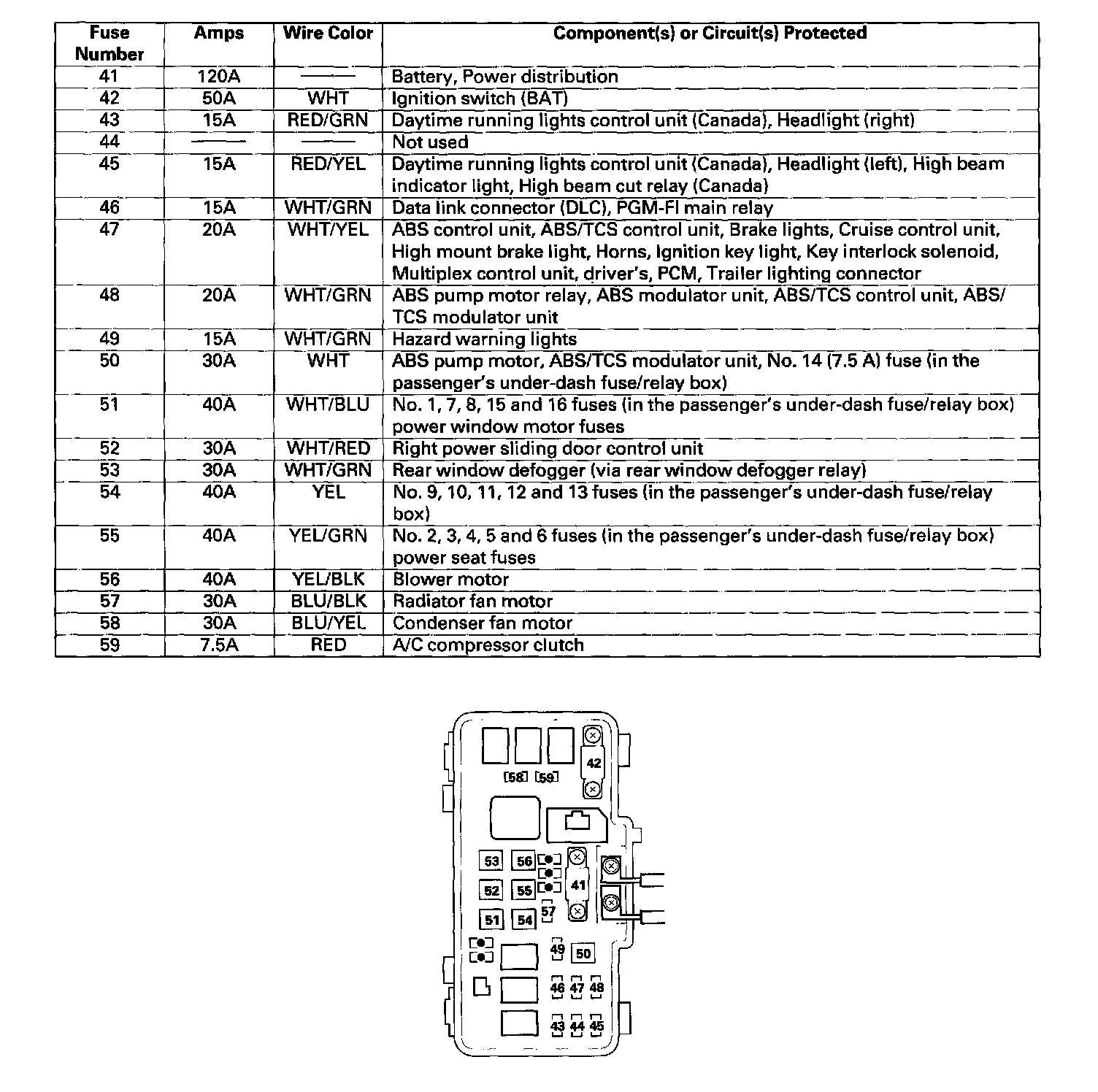

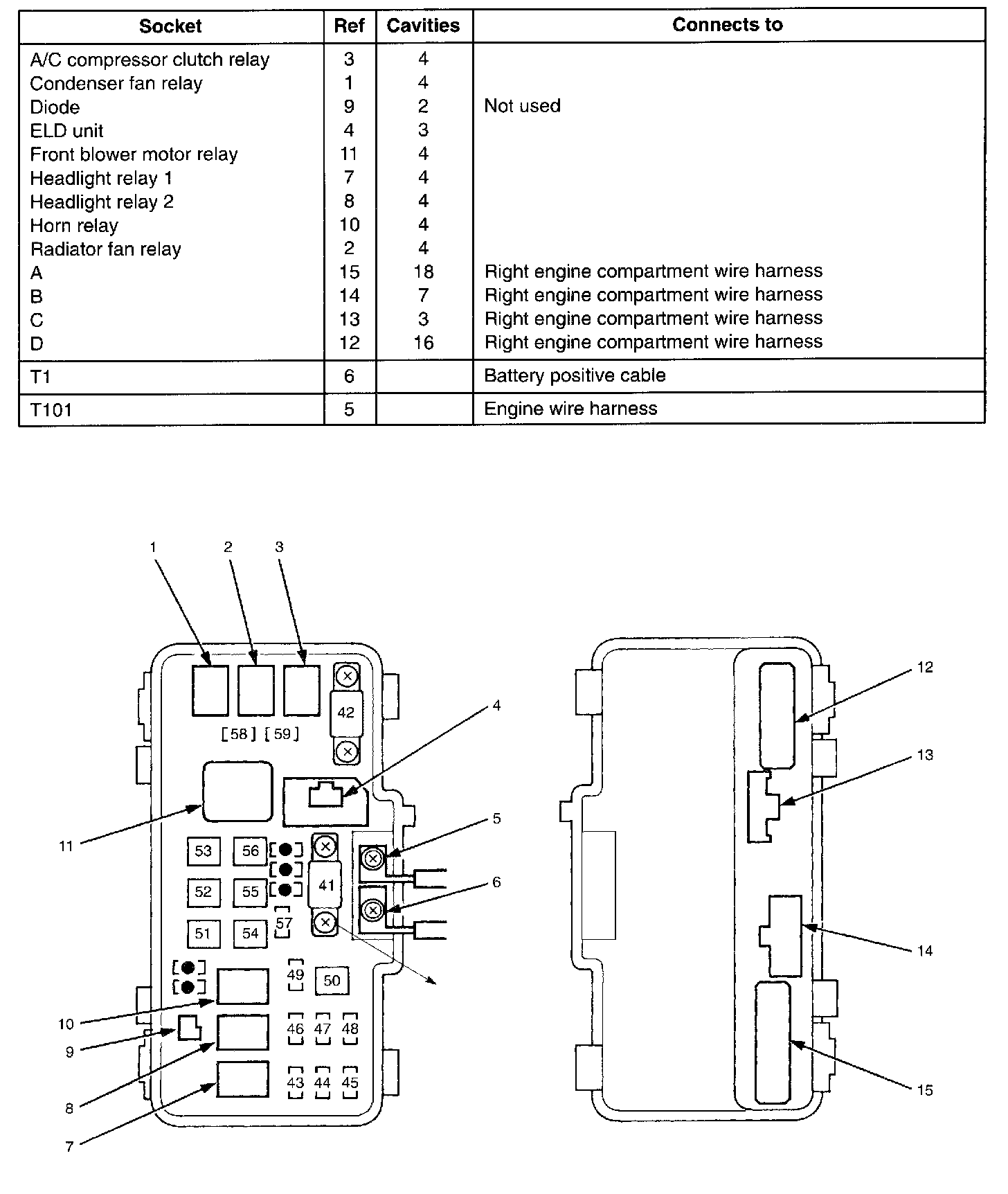

Under-hood Fuse/Relay Box:

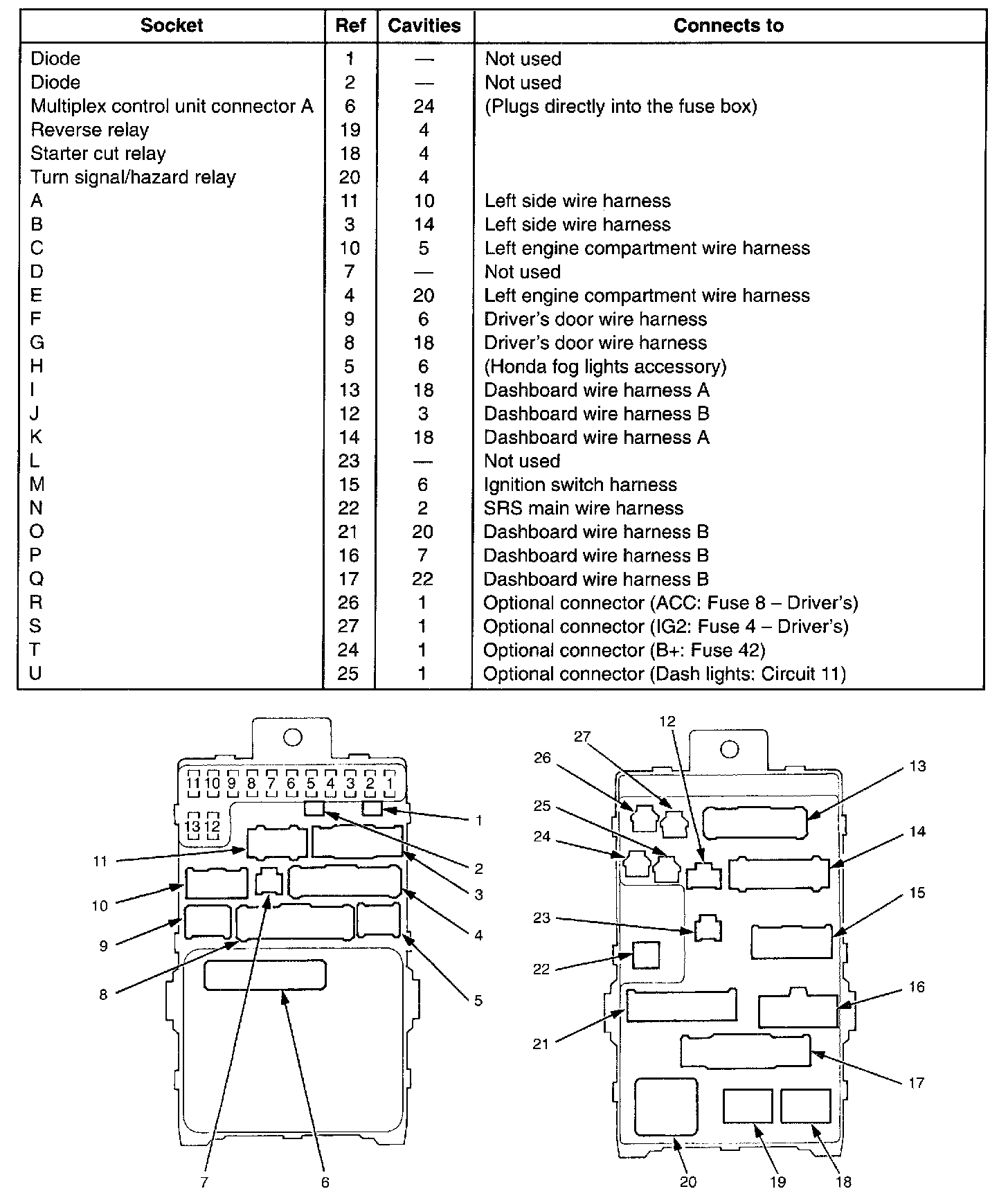

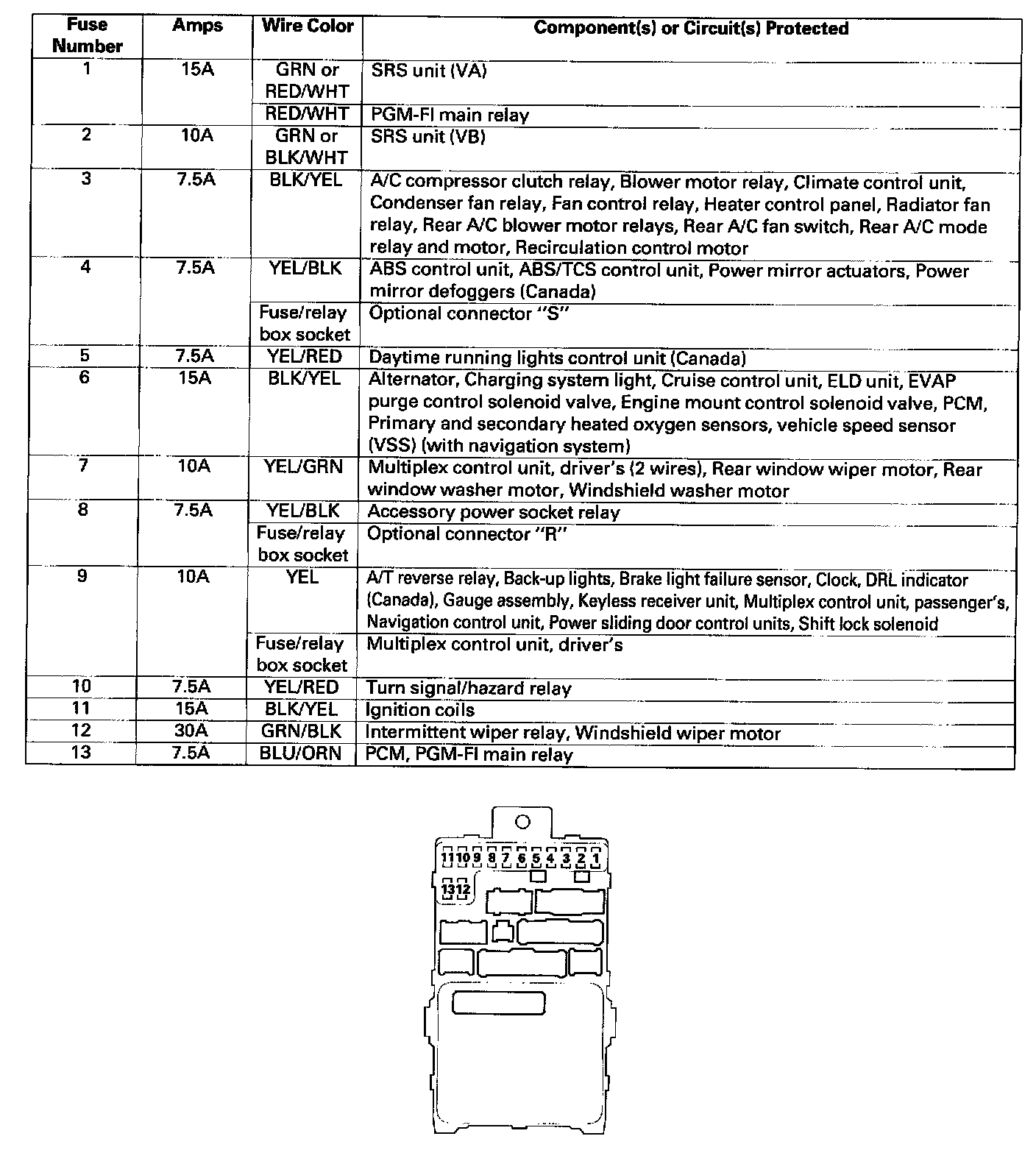

Driver's Under-dash Fuse/Relay Box:

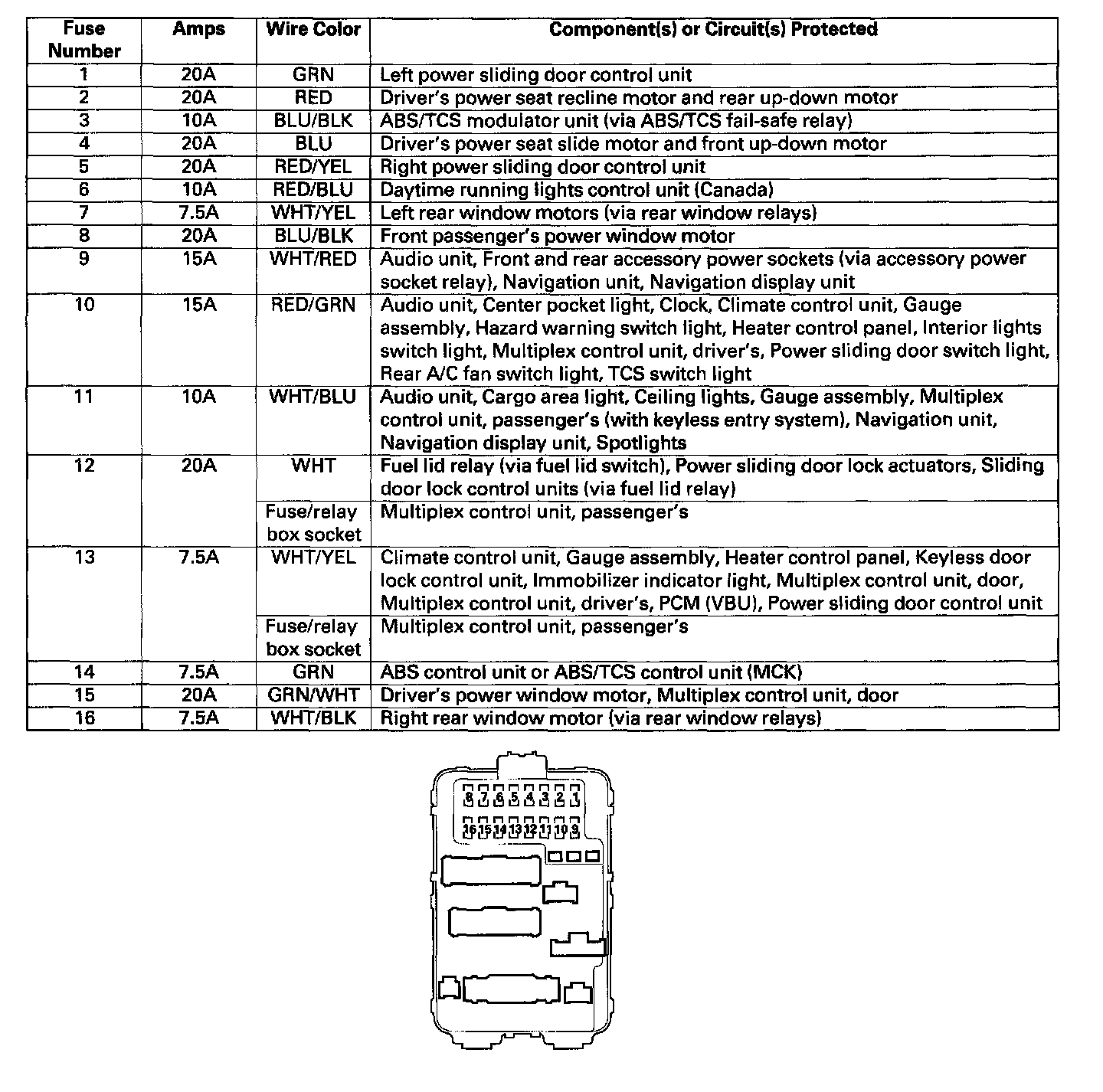

Passenger's Under-dash Fuse/Relay Box:

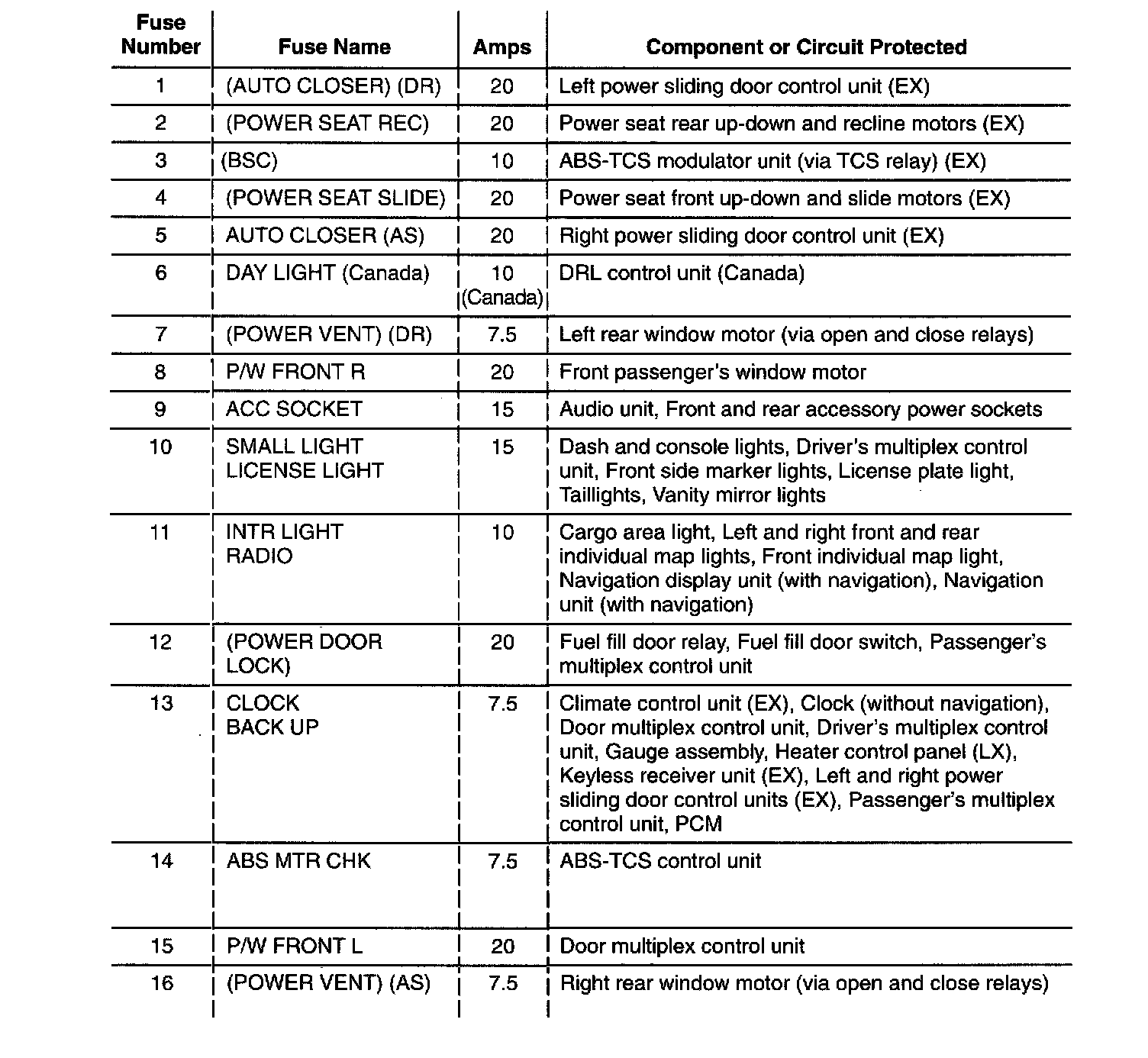

Multi-fuse/Relay Box:
