Fuse: Application and ID

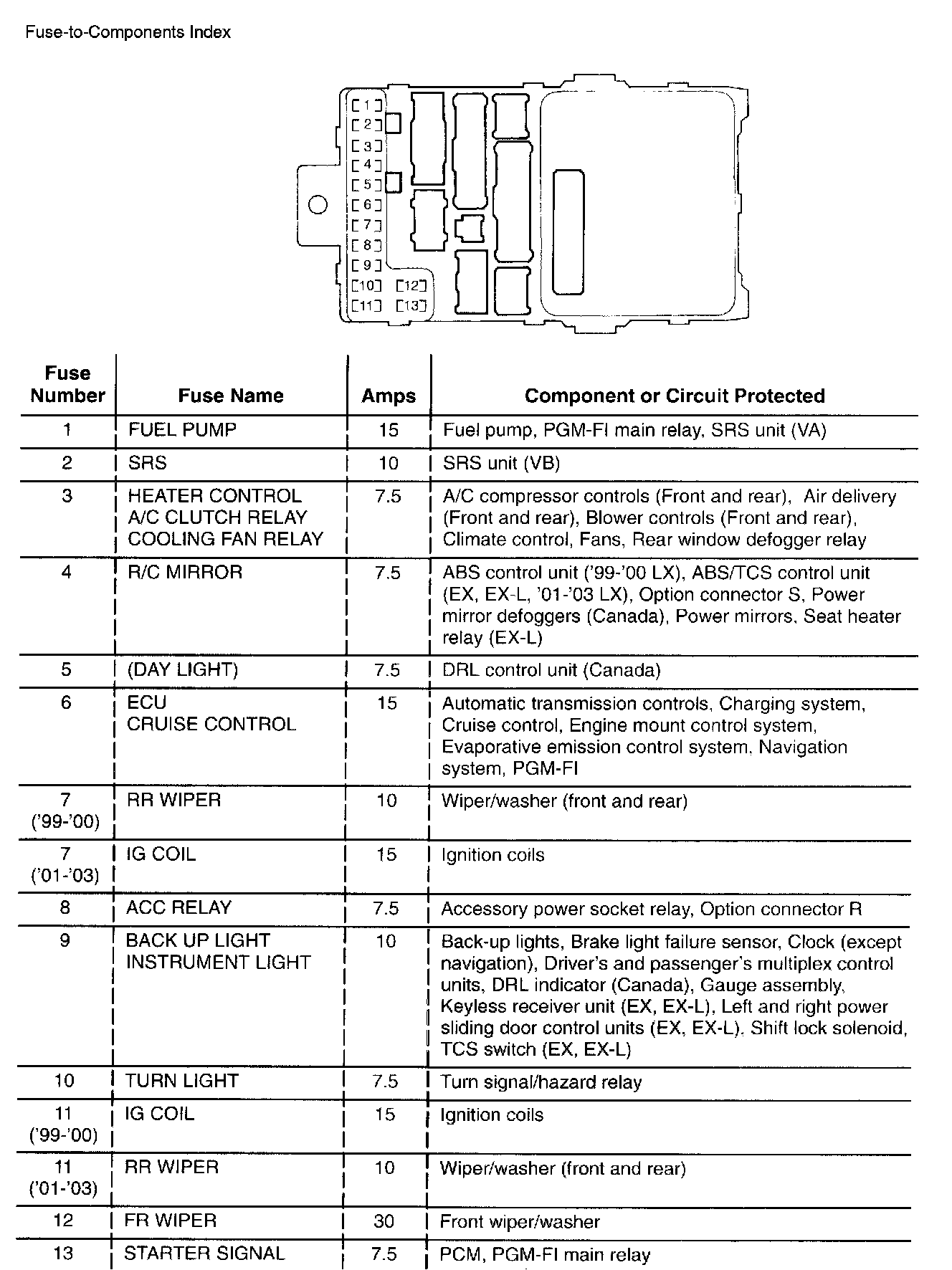

Driver's Under-dash Fuse/Relay Box:

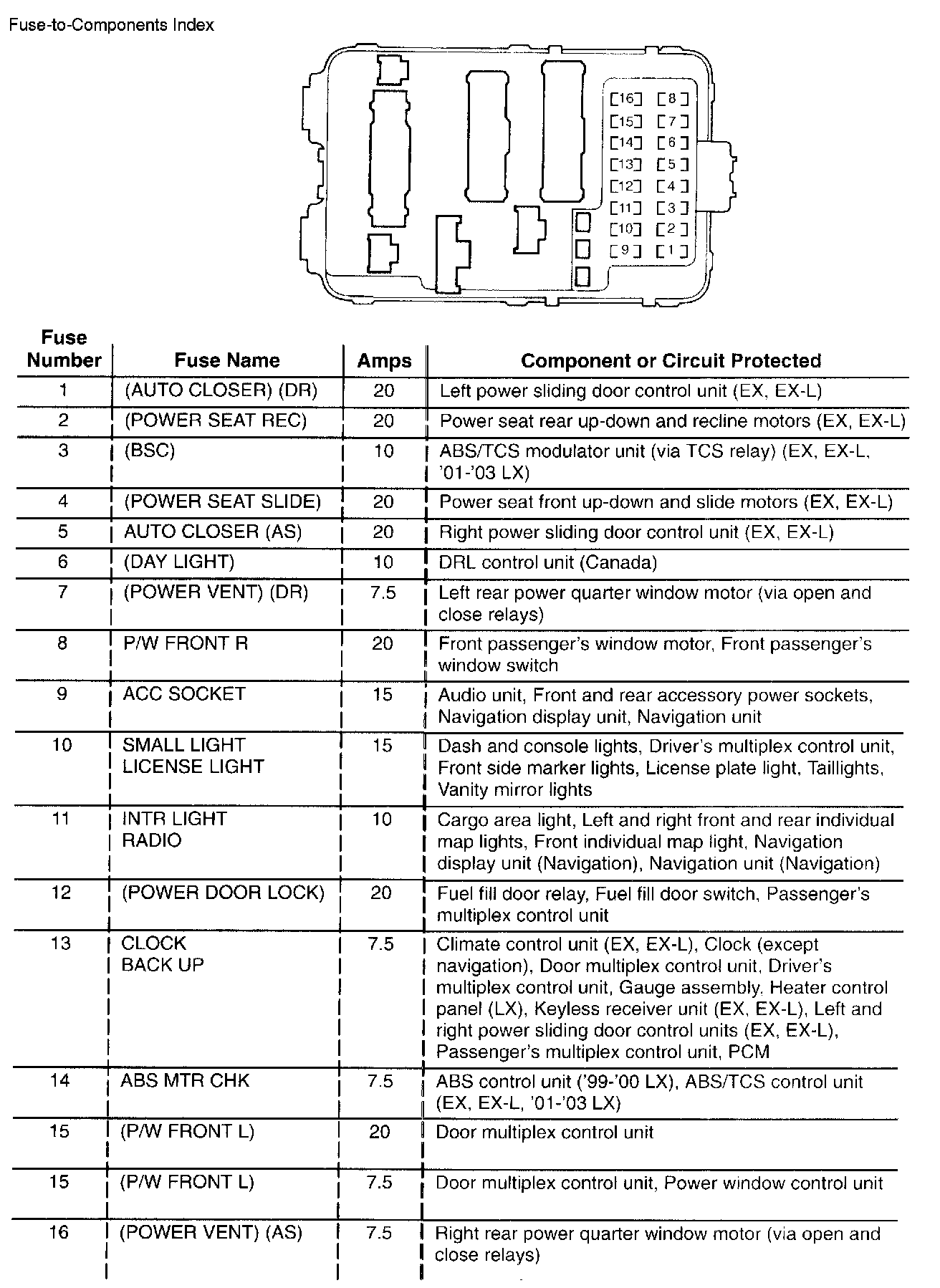

Passenger's nder-dash Fuse/Relay Box:

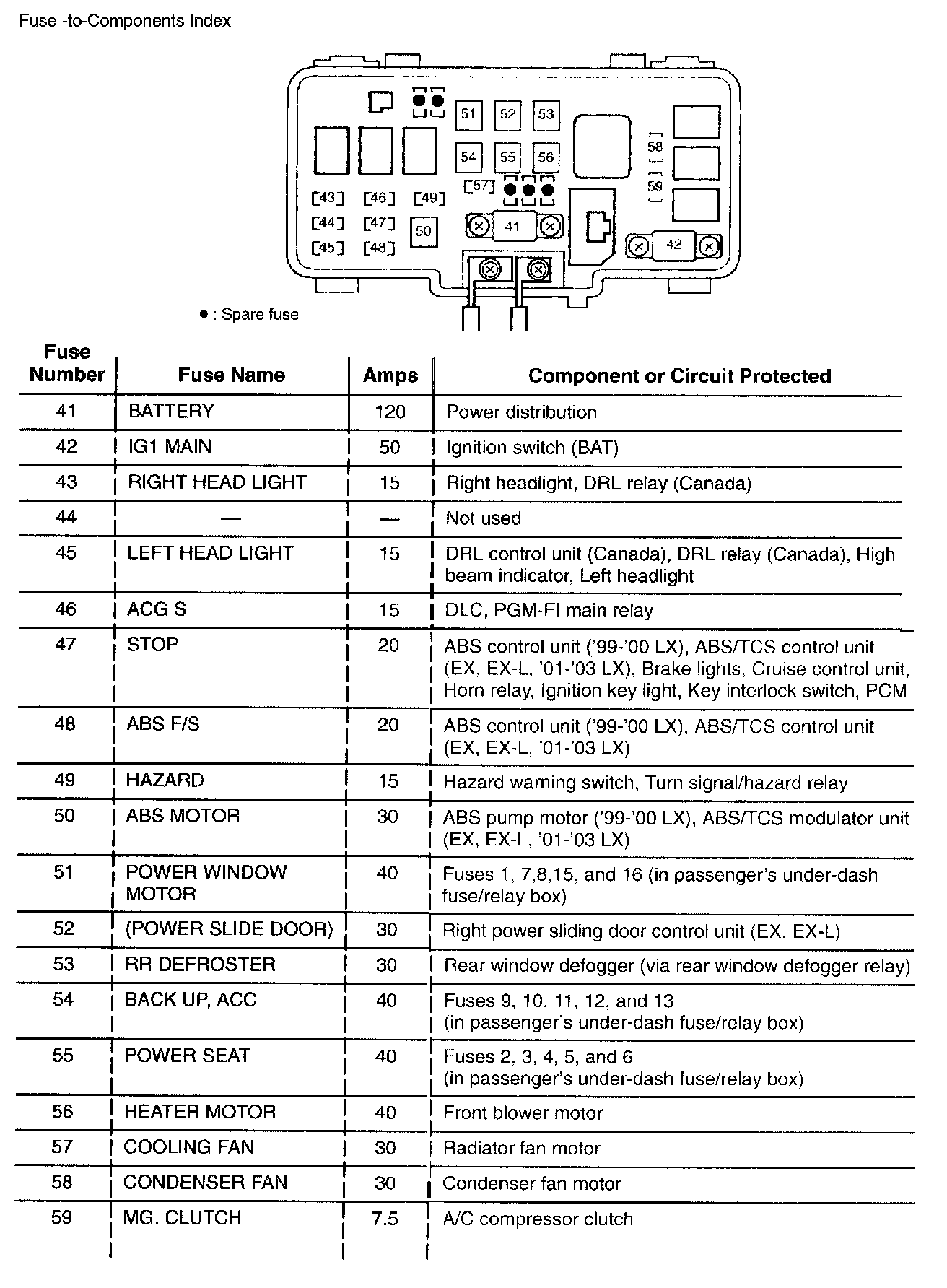

Under-hood Fuse/Relay Box:

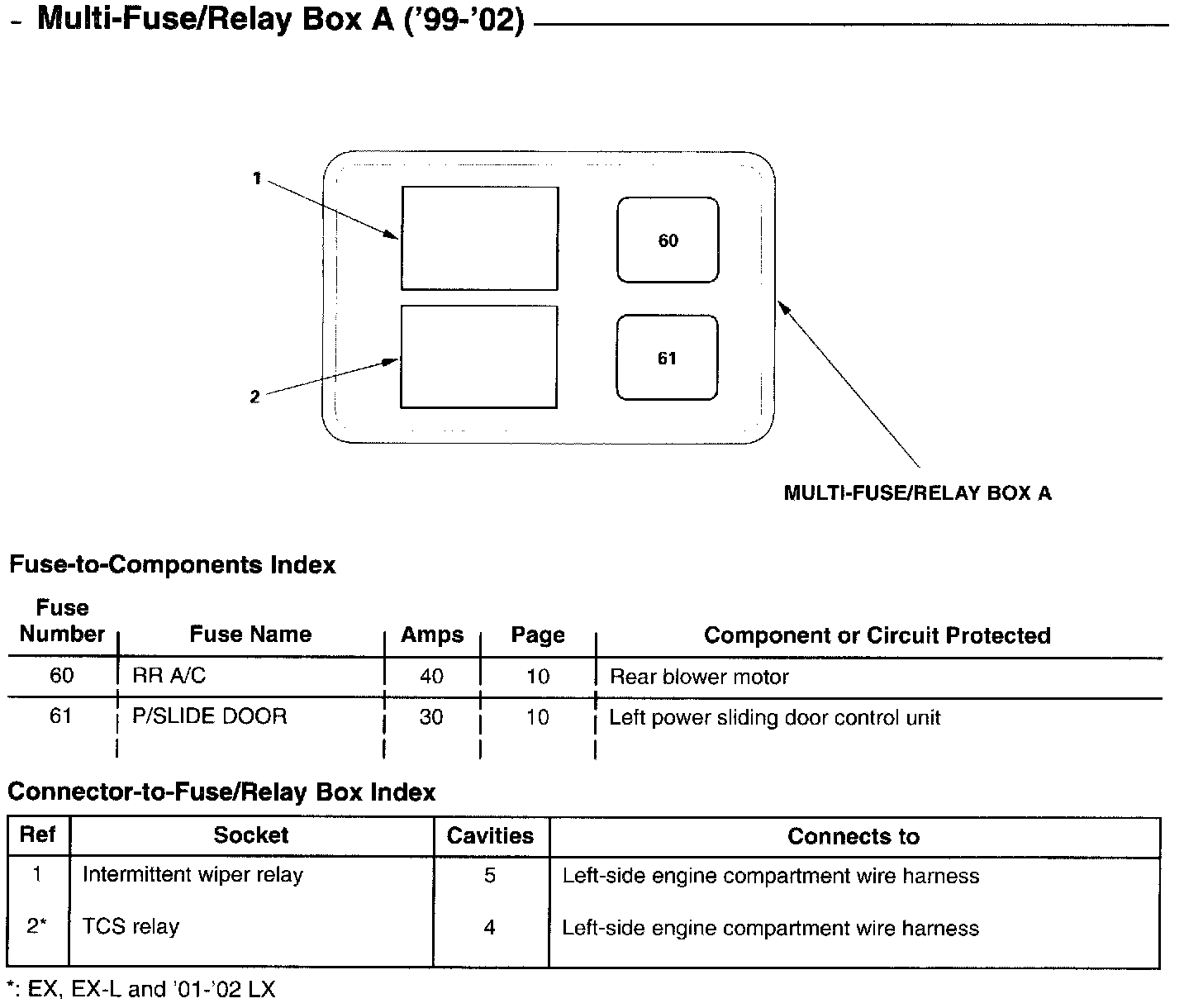

Multi-Fuse/Relay Box A (99-02):
