Steering Linkage and Gearbox Inspection
NOTE:
Bolts and nuts with the * mark are special corrosion-resistant Dacro fasteners. Use the same type if replacement is necessary.

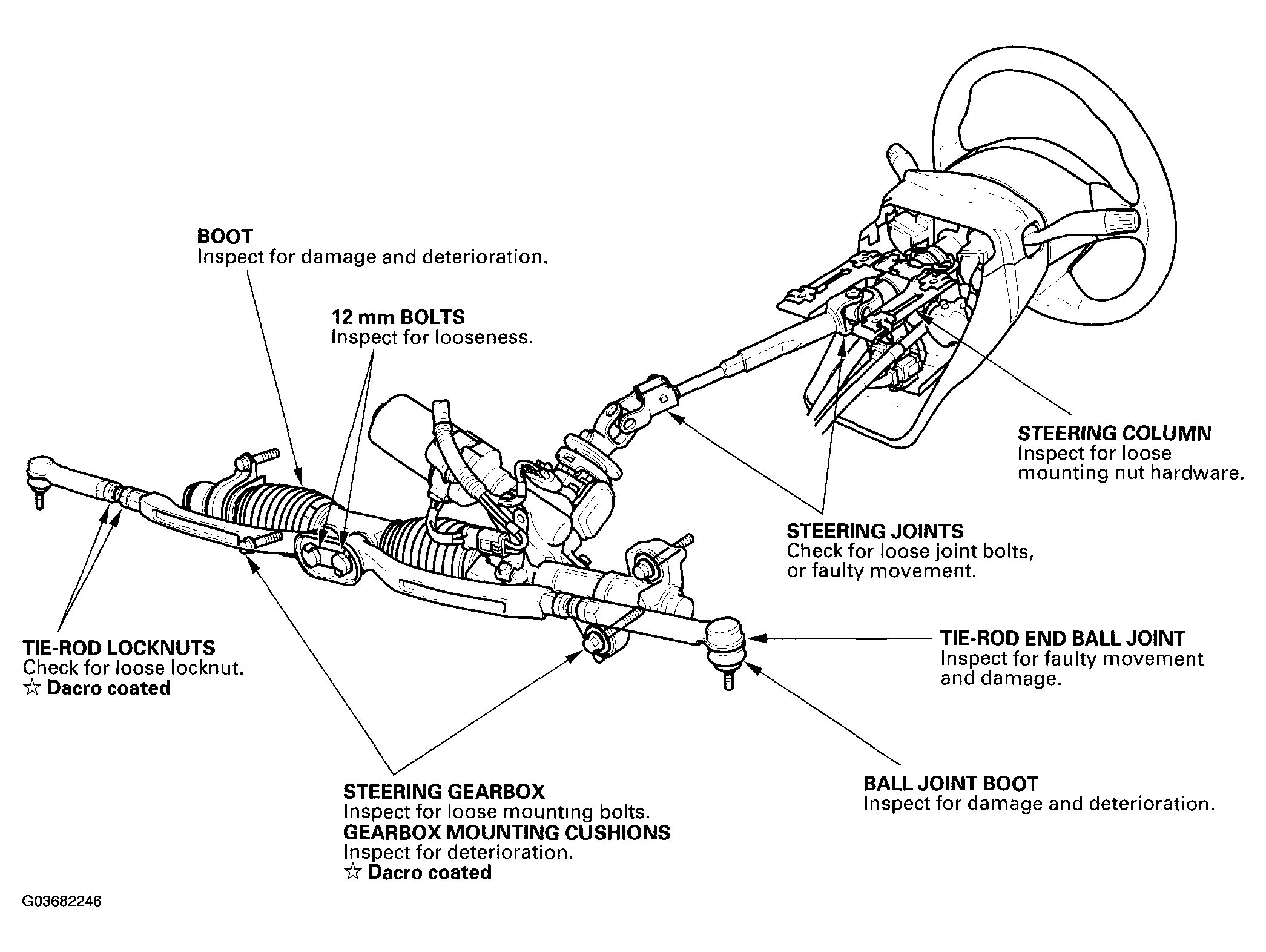

Fig 1: View Of Steering Linkage And Gearbox
Courtesy of AMERICAN HONDA MOTOR CO., INC.
