System Description
>>
BCM Module Inputs and Outputs at Connector A (26P)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
BCM Module Inputs and Outputs at Connector A (26P)

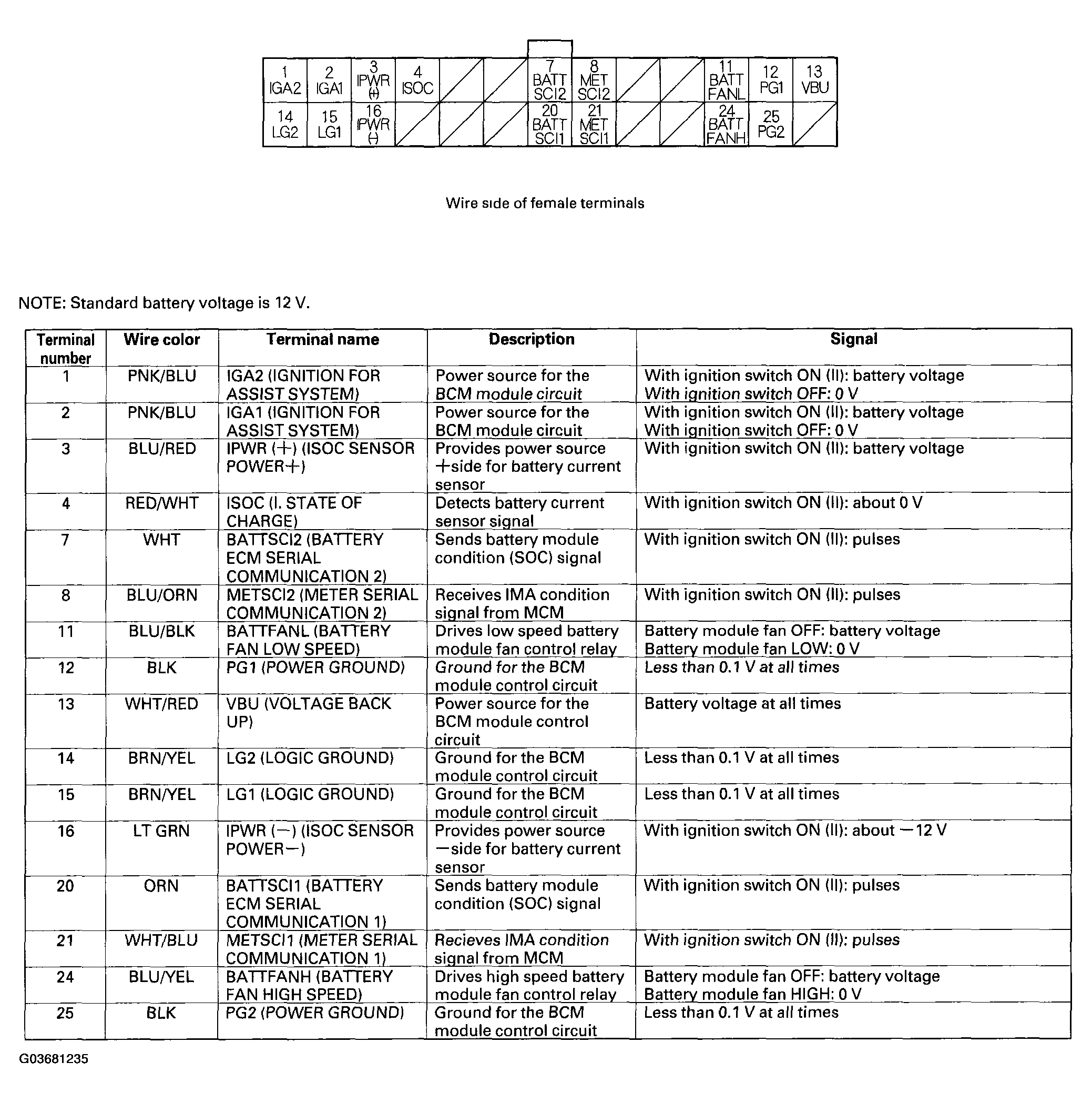

Fig 1: Identifying BCM Module Inputs And Outputs Connector A (26P) Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
