Insight
>>
Repair and Diagnosis
>>
Hybrid/Electric Powertrain
>>
Testing and Diagnosis
>>
IMA System
>>
Component Location Index
>>
Junction Board
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Junction Board

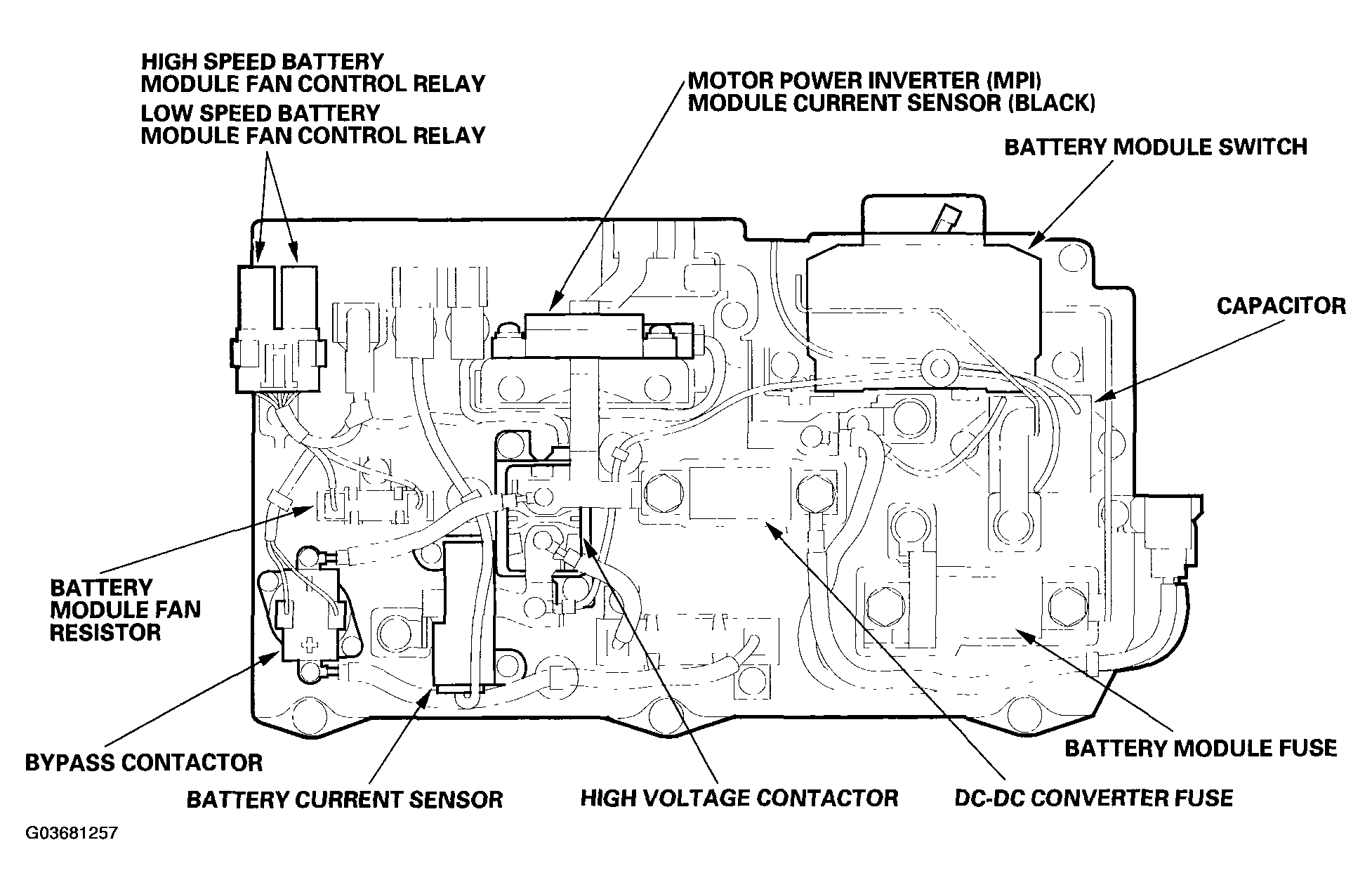

Fig 1: Identifying Junction Board Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
