Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heating System
>>
System Description
>>
Heater Control Panel Inputs and Outputs
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Heater Control Panel Inputs and Outputs

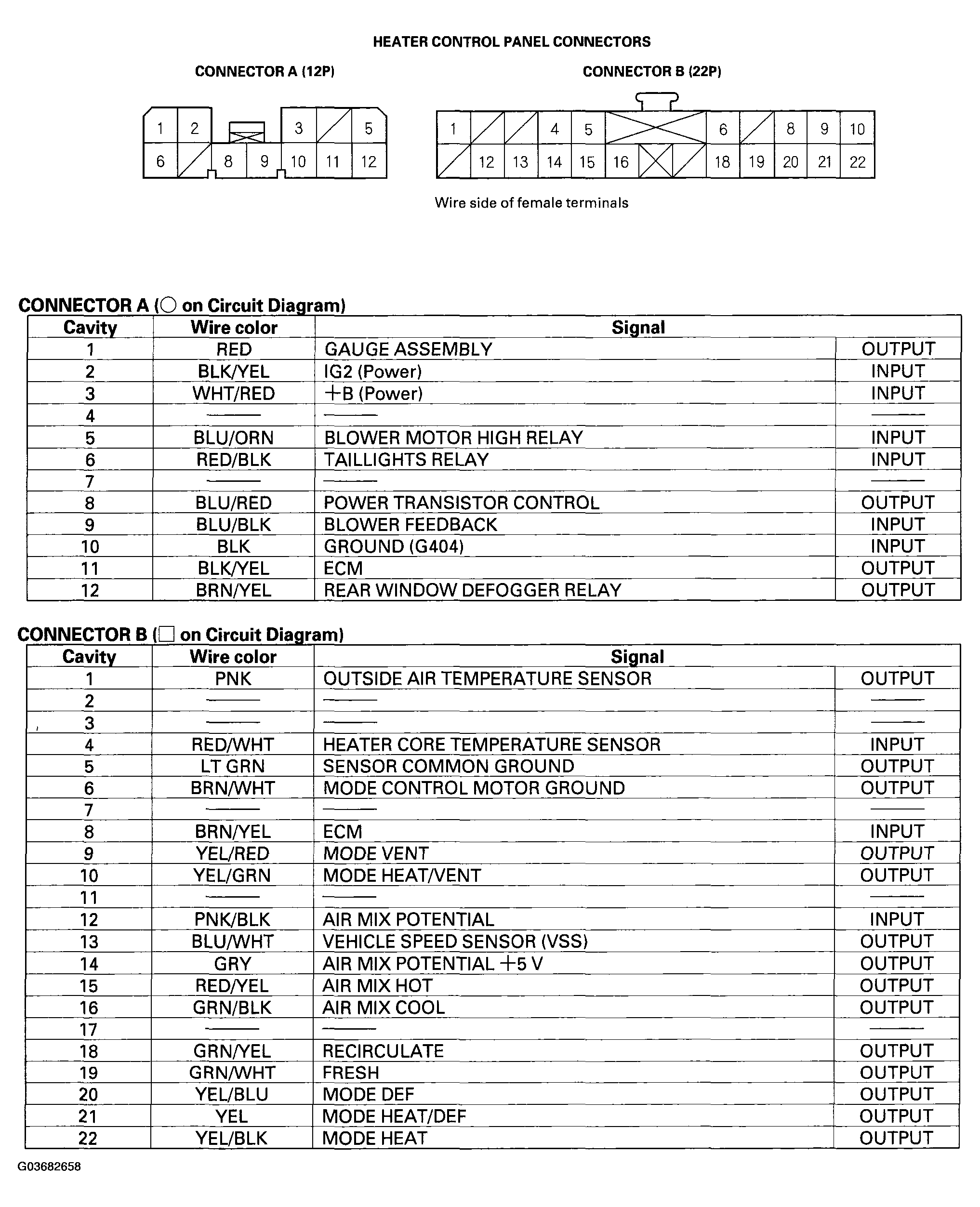

Fig 1: Identifying Heater Control Panel Inputs And Outputs Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
