Radiator Fan Switch Replacement

NOTE: Bleed air from the cooling system after installing the radiator fan switch (see COOLANT REPLACEMENT ).
  1. Disconnect the radiator fan switch connector, then remove the radiator fan switch (A).

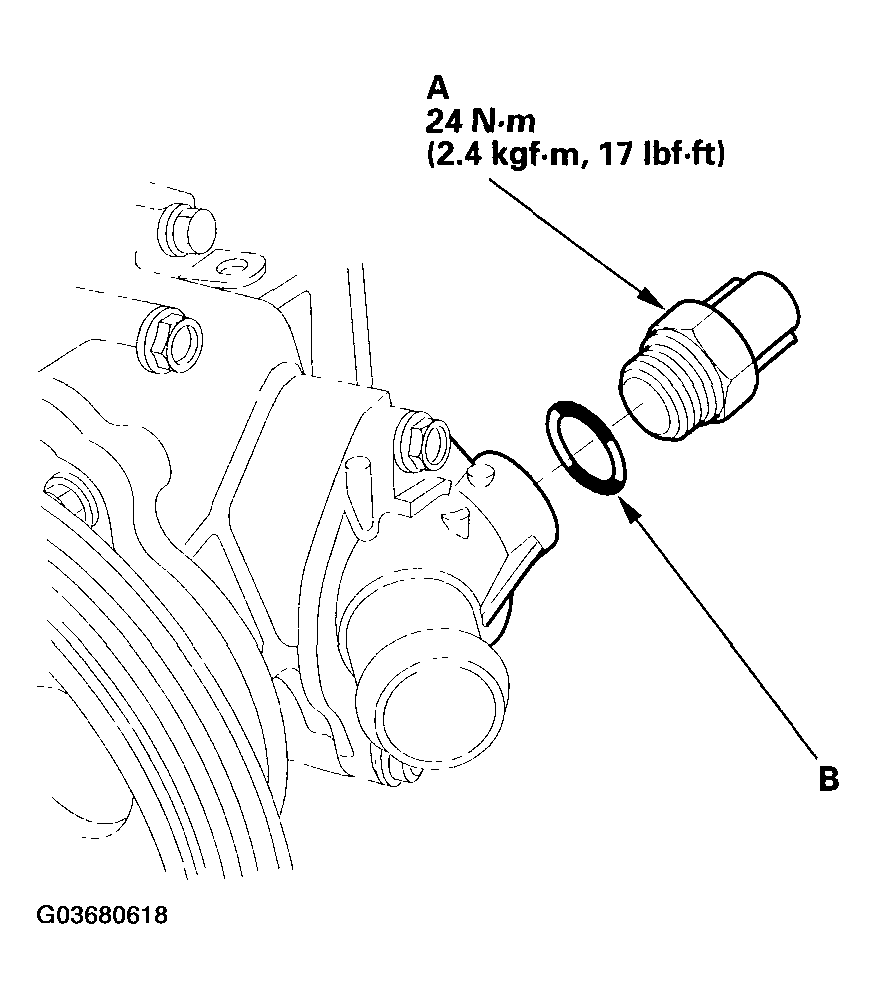

    Fig 1: Removing Radiator Fan Switch And Torque Specifications
    G03680618Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the radiator fan switch with a new O-ring (B).
