Battery: Service and Repair

Front Damper Base Beam and Battery Box Replacement

NOTE: Take care not to scratch the body.

1. Remove the battery and related brackets.

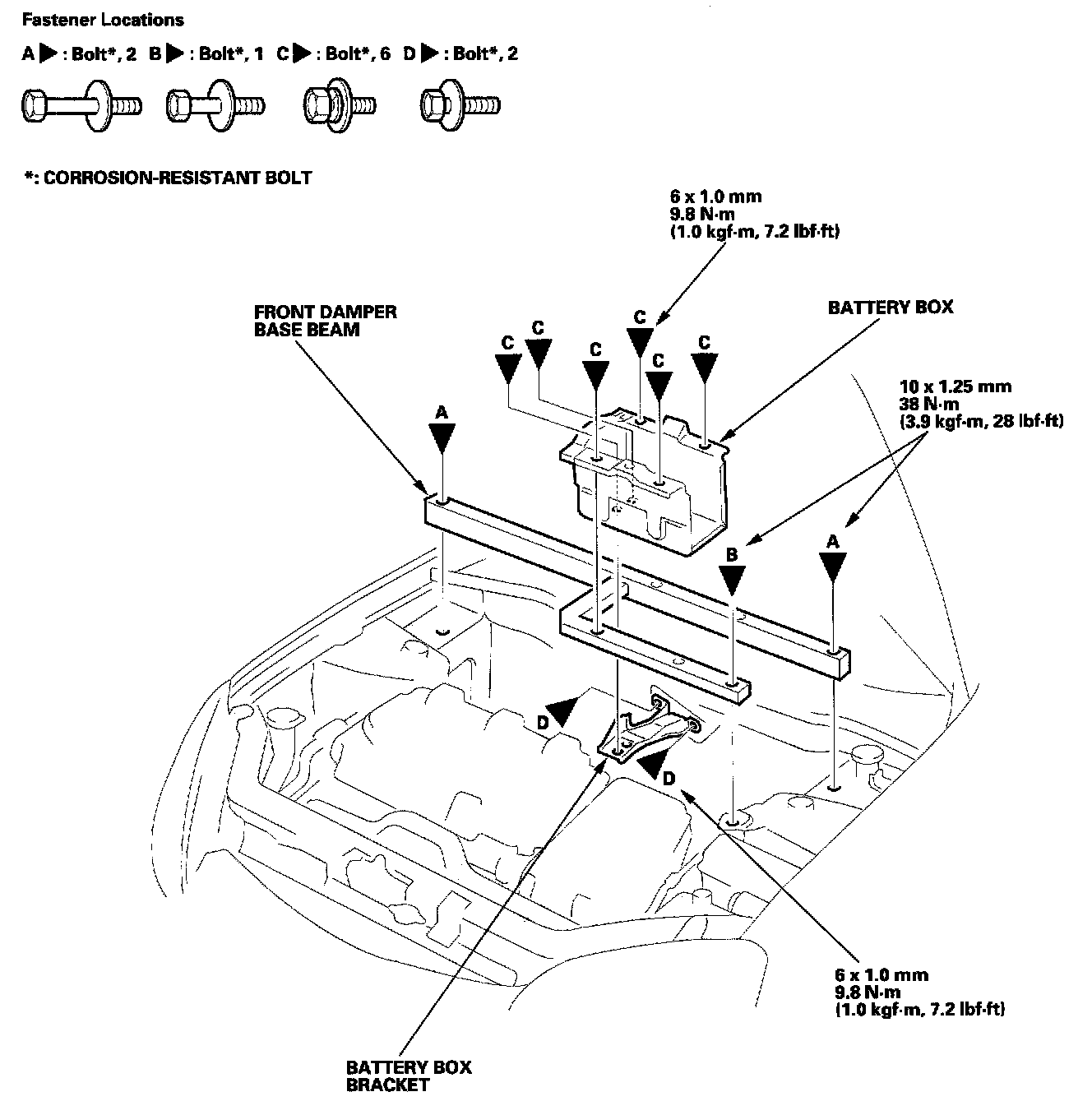

2. Remove the front damper base beam and battery box as shown.




3. Install the front damper base beam and battery box in the reverse order of removal.
