Multiple Junction Connector

141. C104 (Junction Connector):



159. C507 (Junction Connector):



160. C508 (Junction Connector):



161. C571 (Junction Connector):

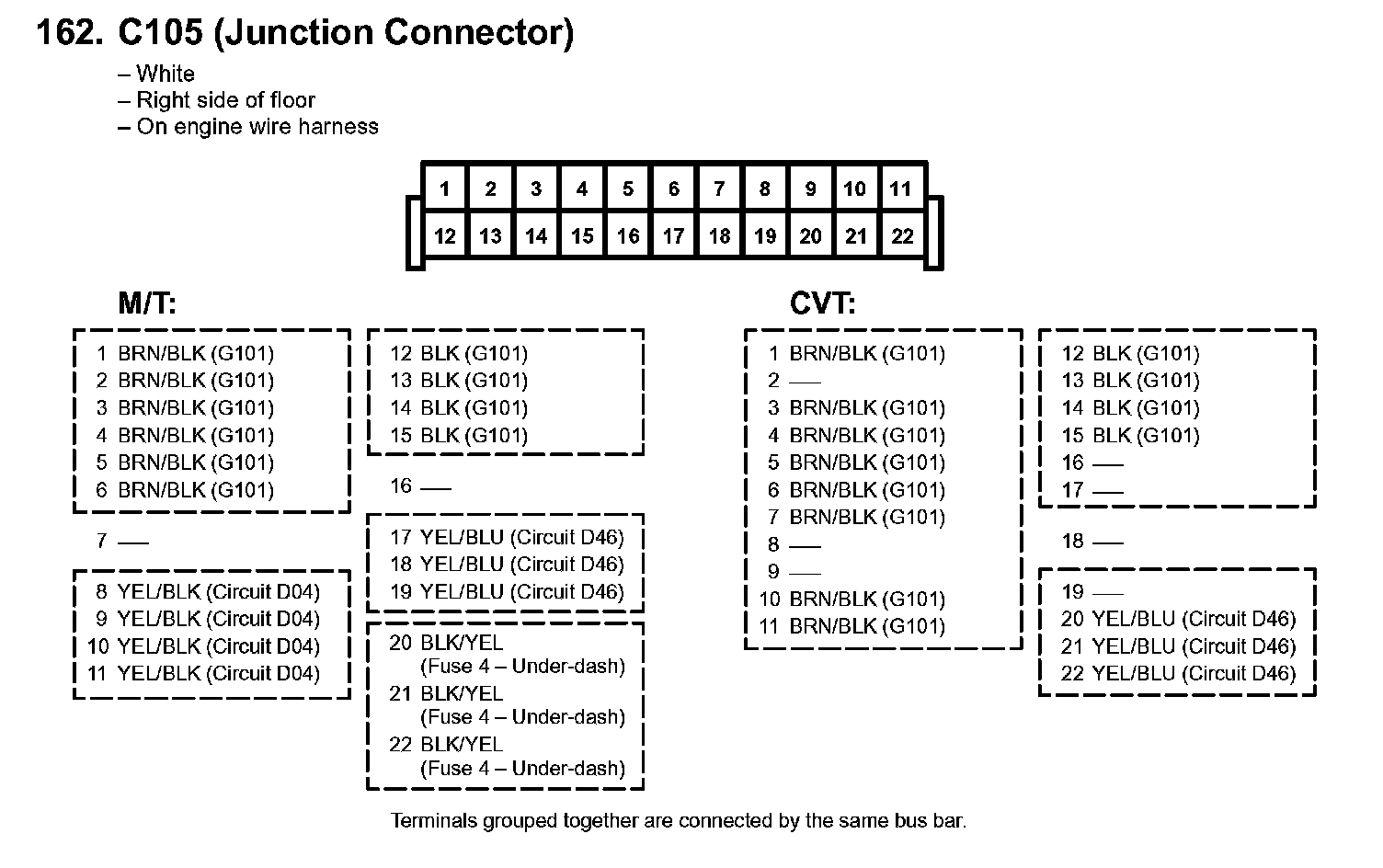

162. C105 (Junction Connector):



202. C107 (Junction Connector) (CVT):

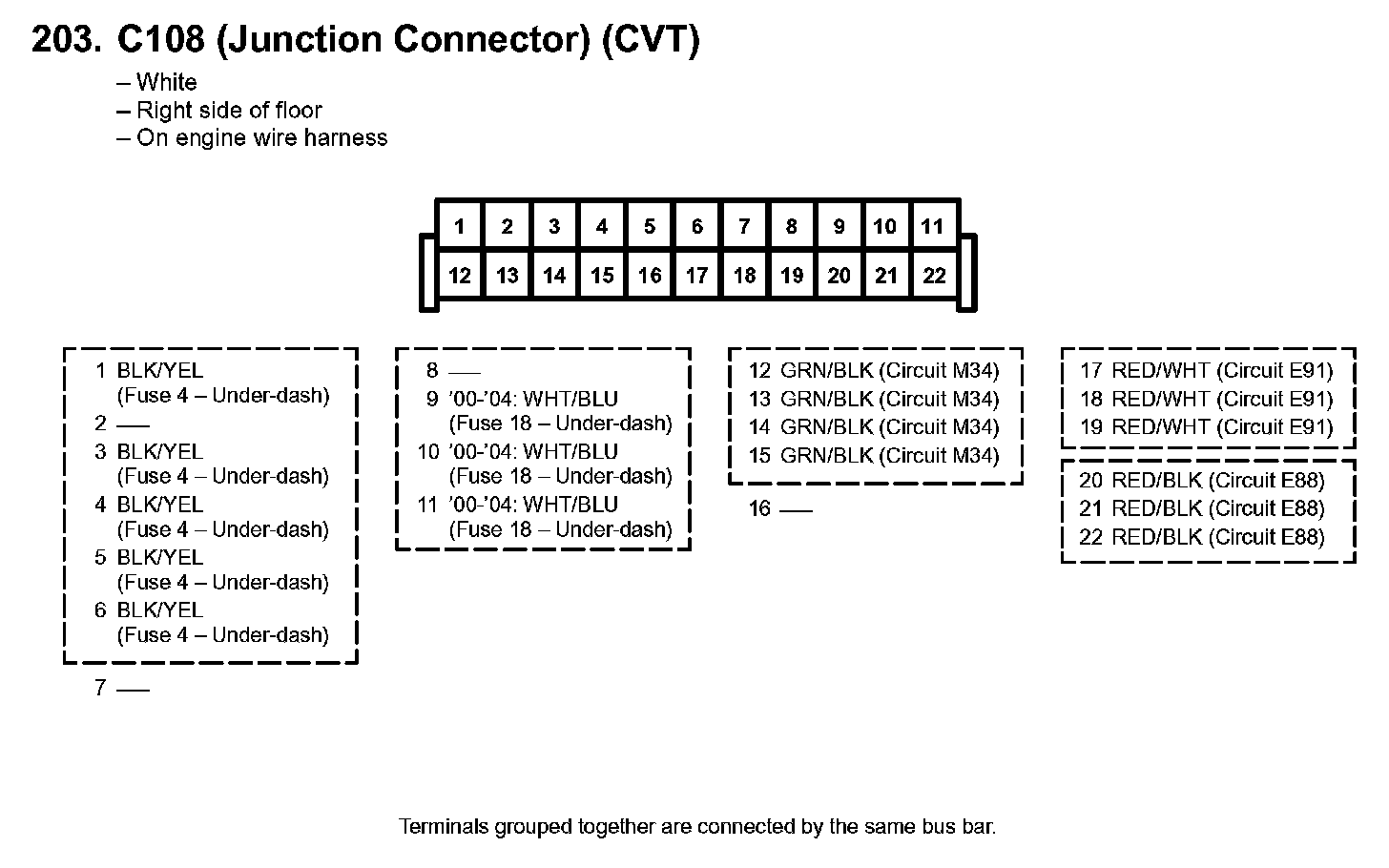

203. C108 (Junction Connector) (CVT):
