Home >> Honda >> 1999 >> Odyssey EX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Connectors A, B, C, and D
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

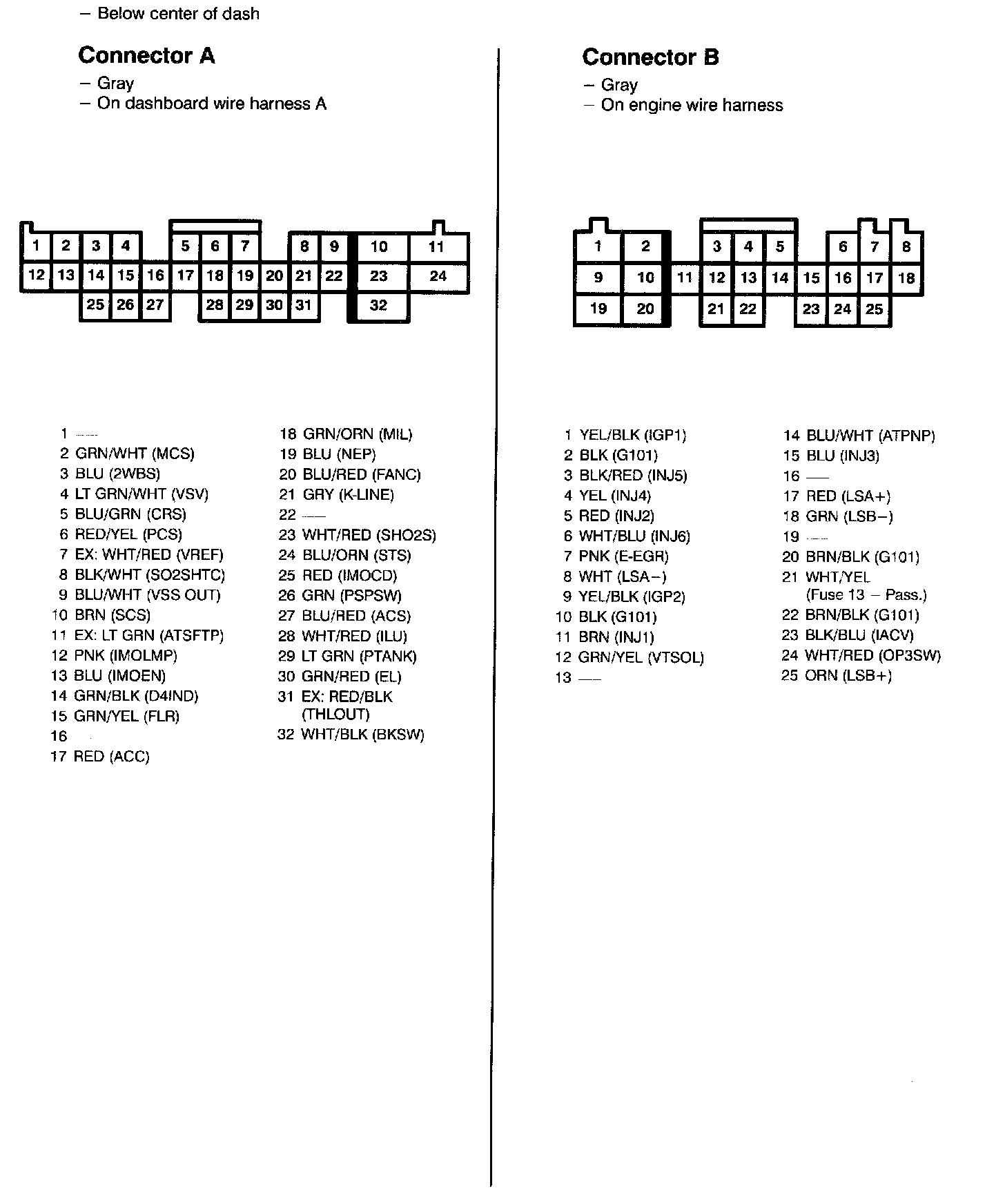

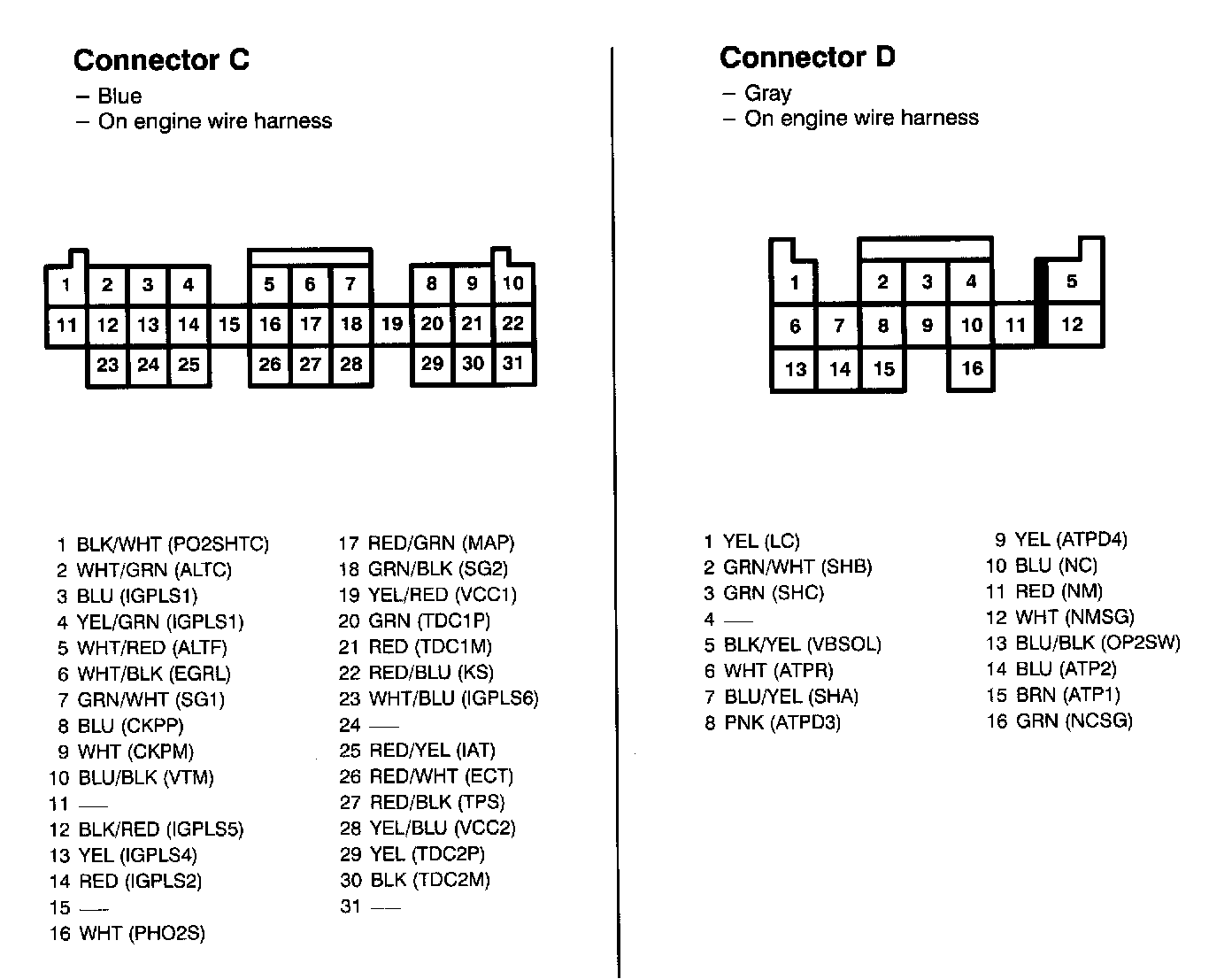

Connectors A, B, C, and D
