Alternator Control System Test

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

For alternator control system test, see Fig 1 for 2.3L or Fig 2 for 3.0L.

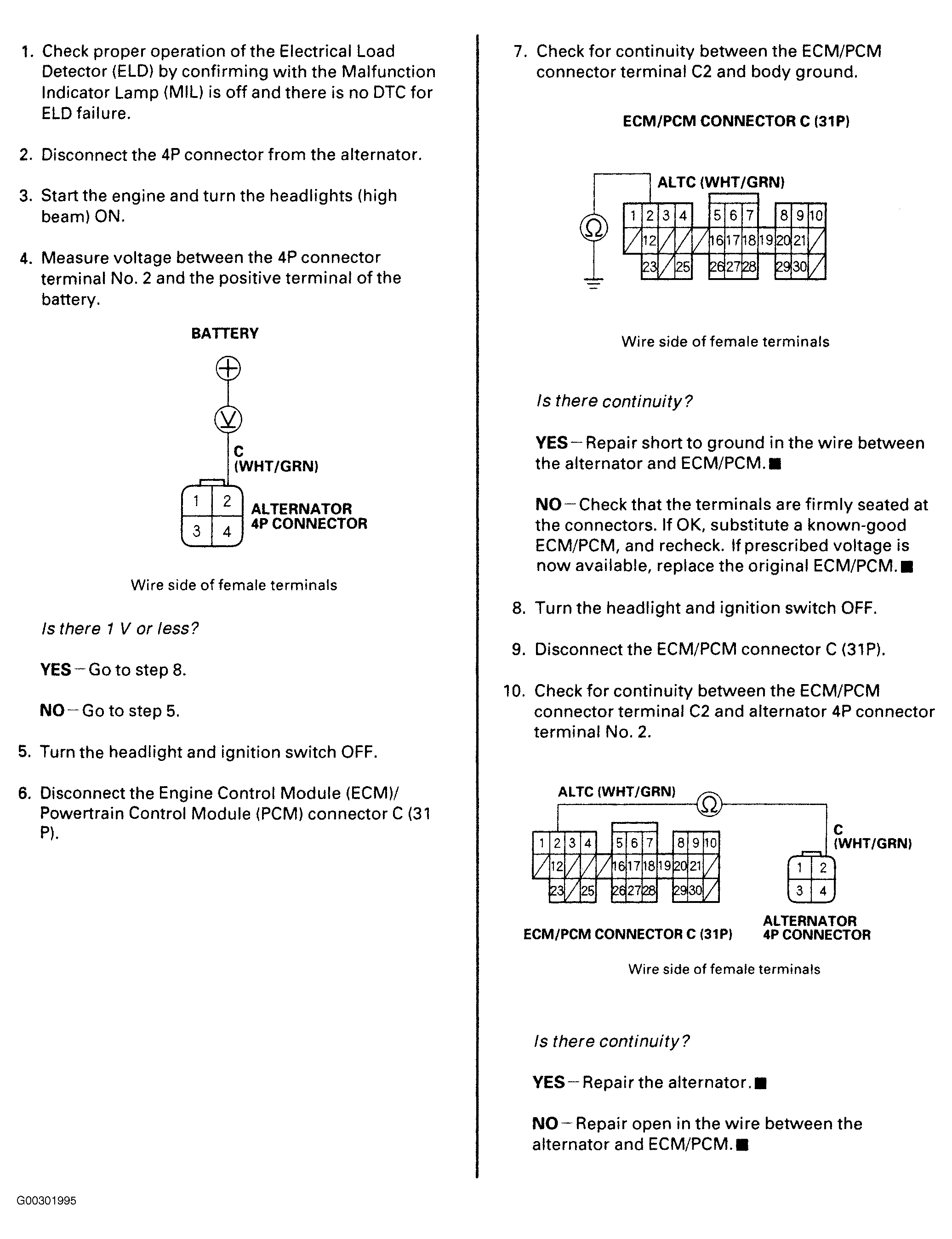

Fig 1: Alternator Control System Test (2.3L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

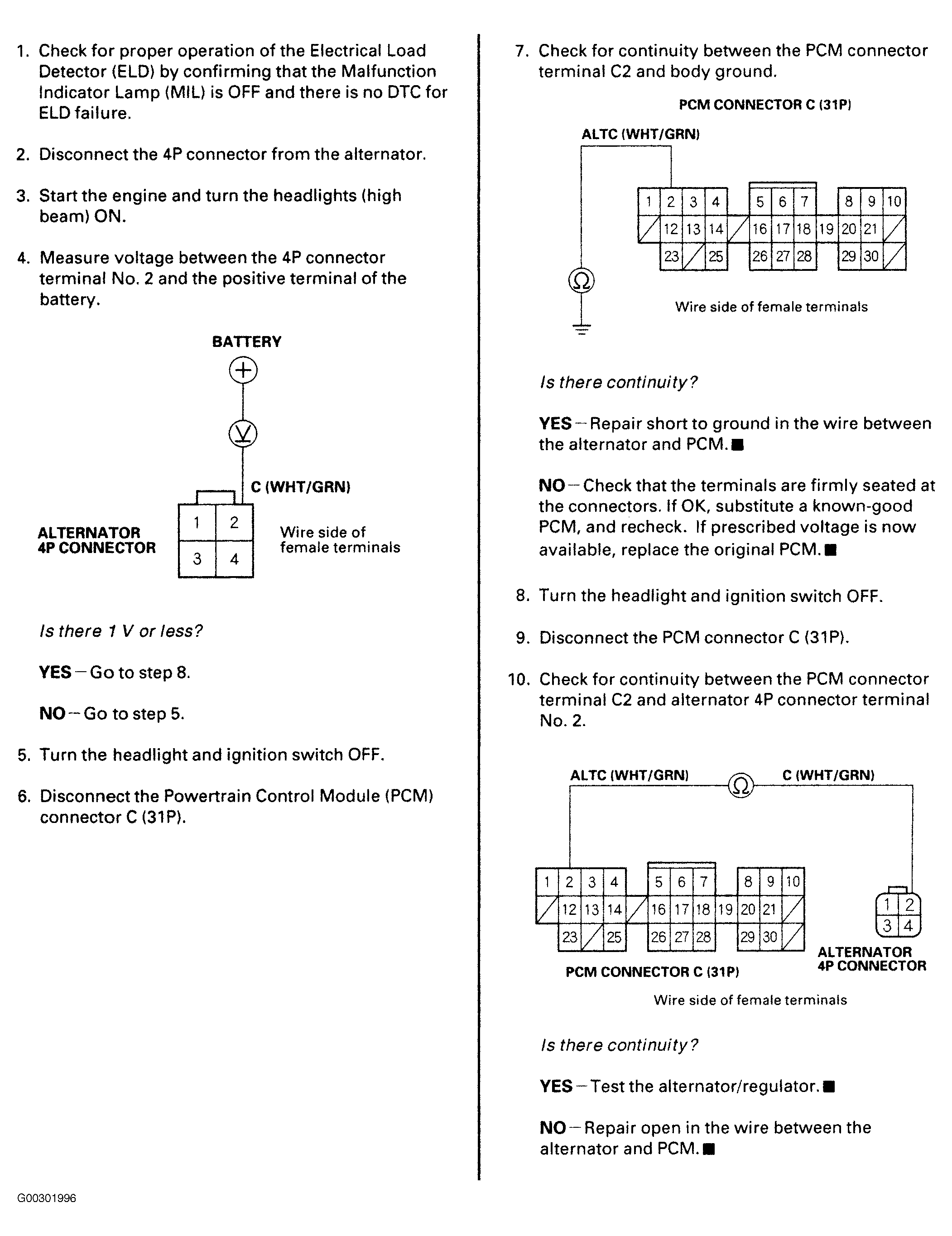

Fig 2: Alternator Control System Test (3.0L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
