Under-Dash Fuse/Relay Box

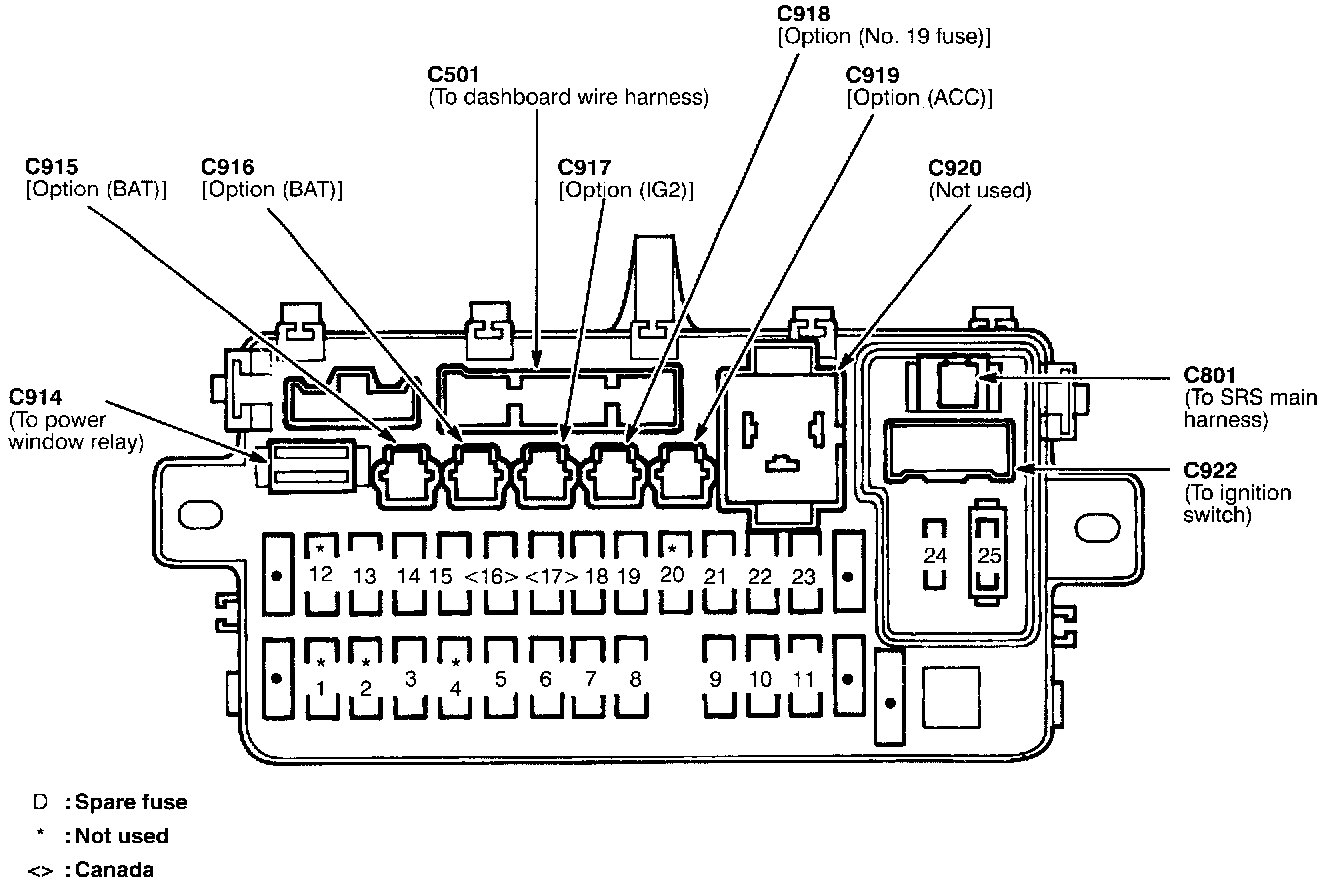

Fuse/Relay Information- Under-dash Fuse/Relay Box (Part 1 Of 3):

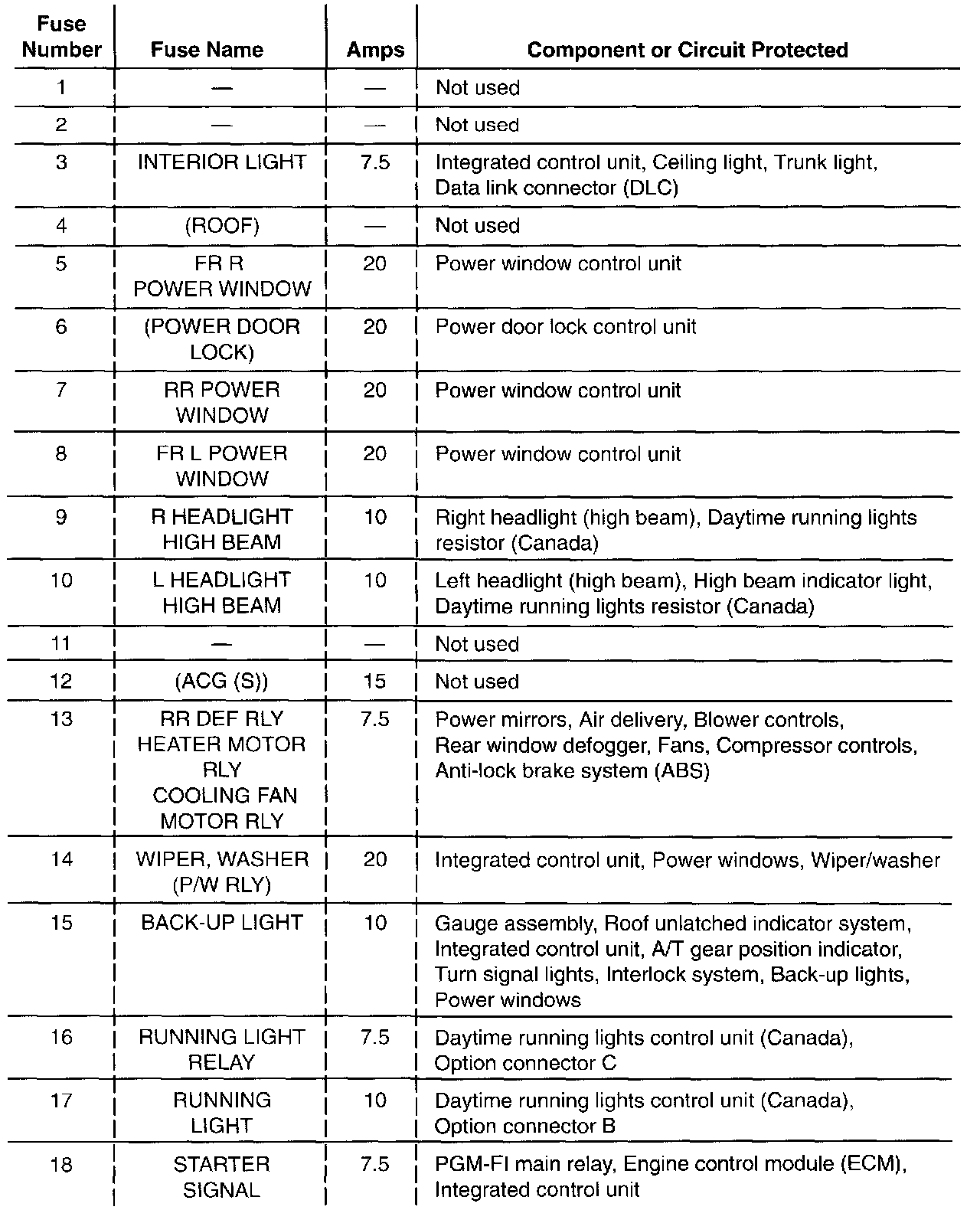

Fuse/Relay Information- Under-dash Fuse/Relay Box (Part 2 Of 3):




Fuse/Relay Information- Under-dash Fuse/Relay Box (Part 3a Of 3):

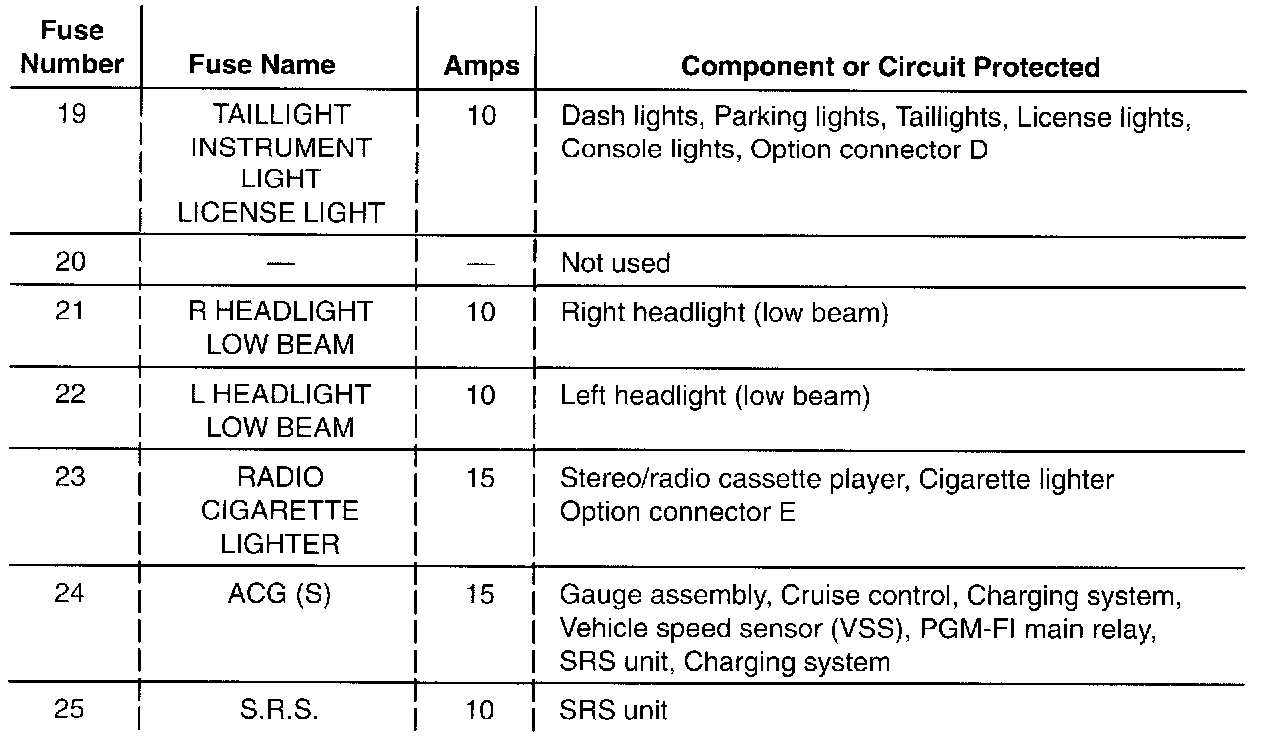

Fuse/Relay Information- Under-dash Fuse/Relay Box (Part 3b Of 3):
