Ignition Output Signal: Testing and Inspection

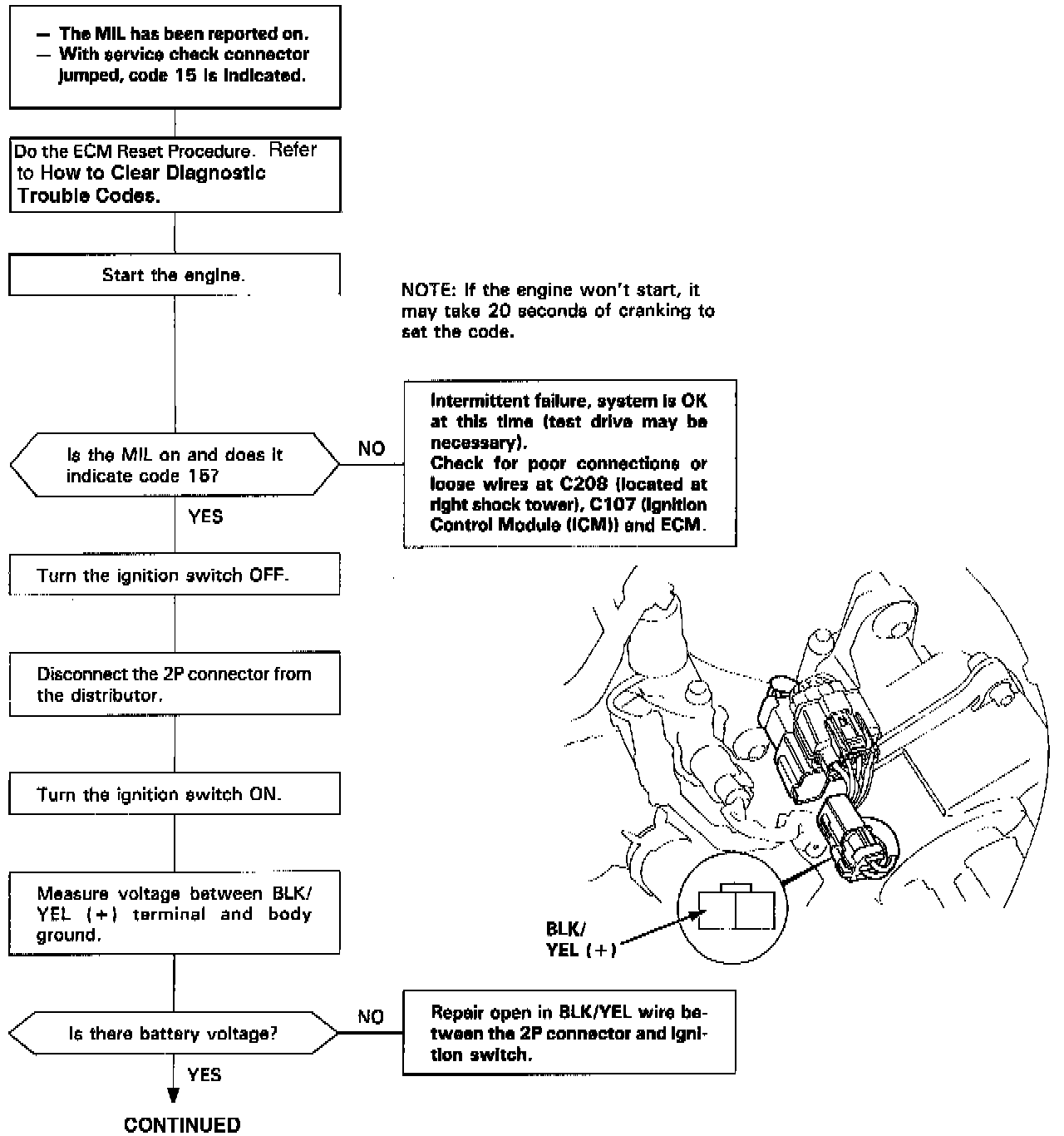

DTC 15 / Ignition Output Signal (part 1 of 2):




DTC 15 / Ignition Output Signal (part 2 of 2):
