Connector/Circuit ID

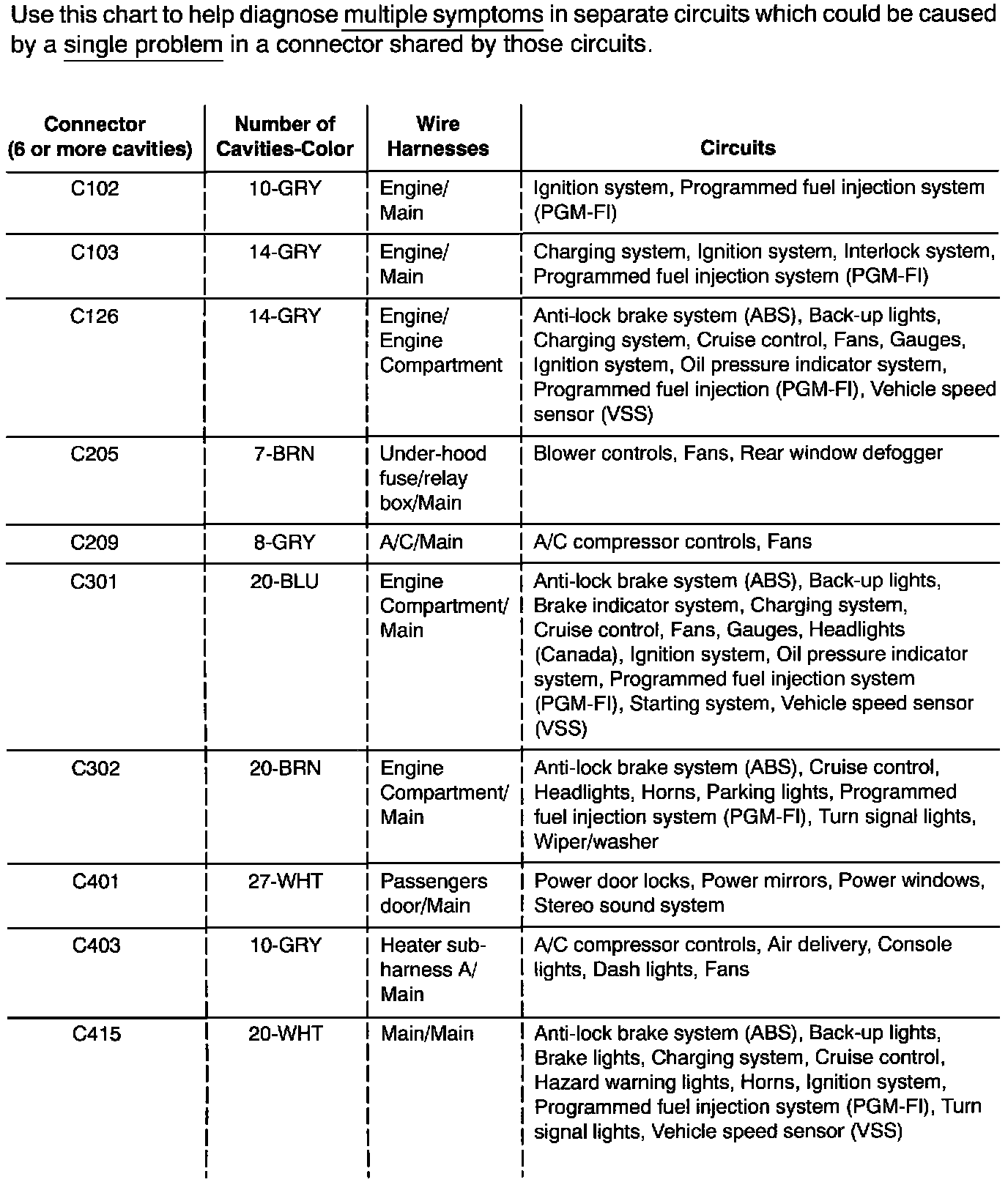

Circuit Identification For In-line And Fuse Box Connectors (Part 1 Of 3):

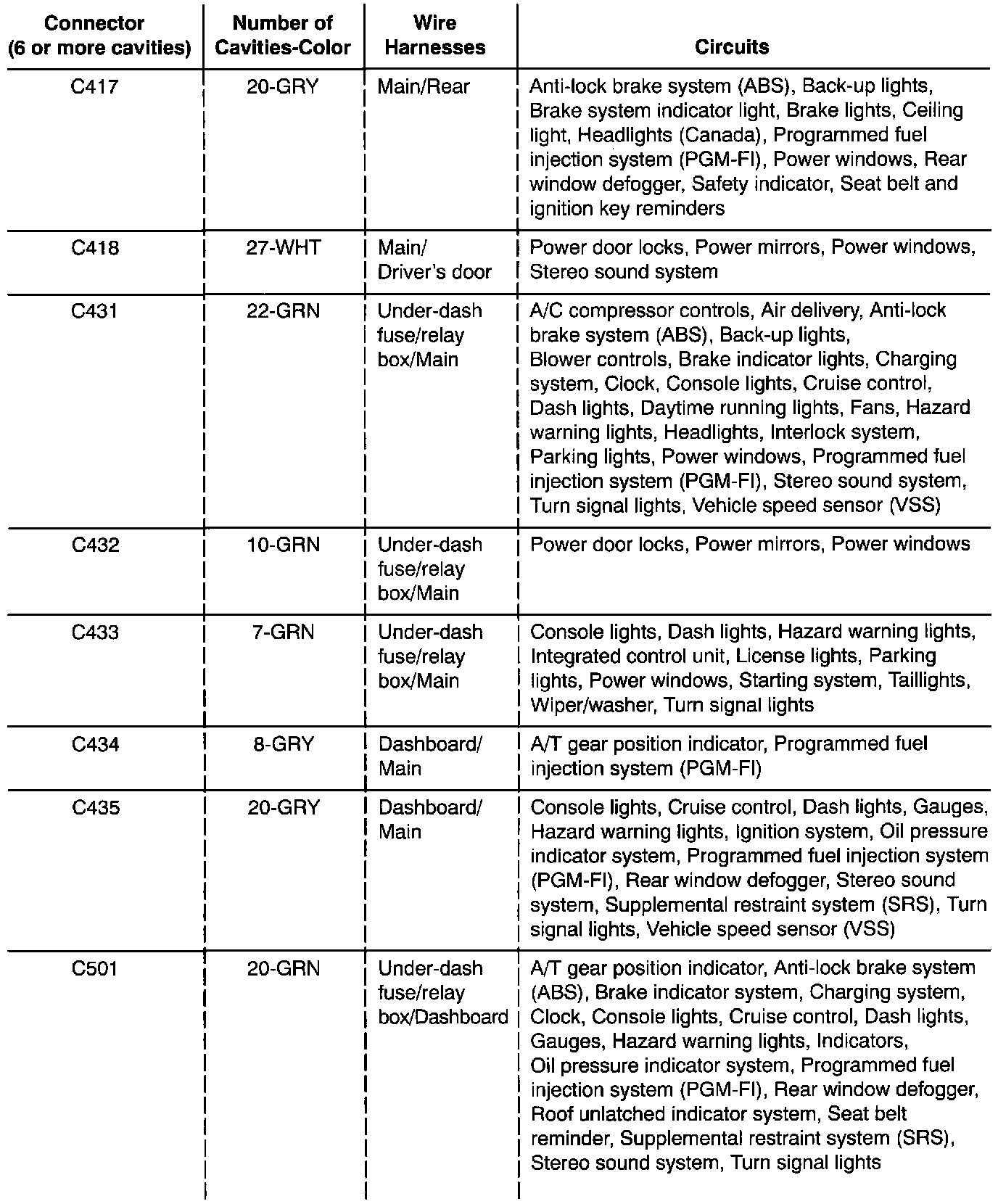

Circuit Identification For In-line And Fuse Box Connectors (Part 2 Of 3):

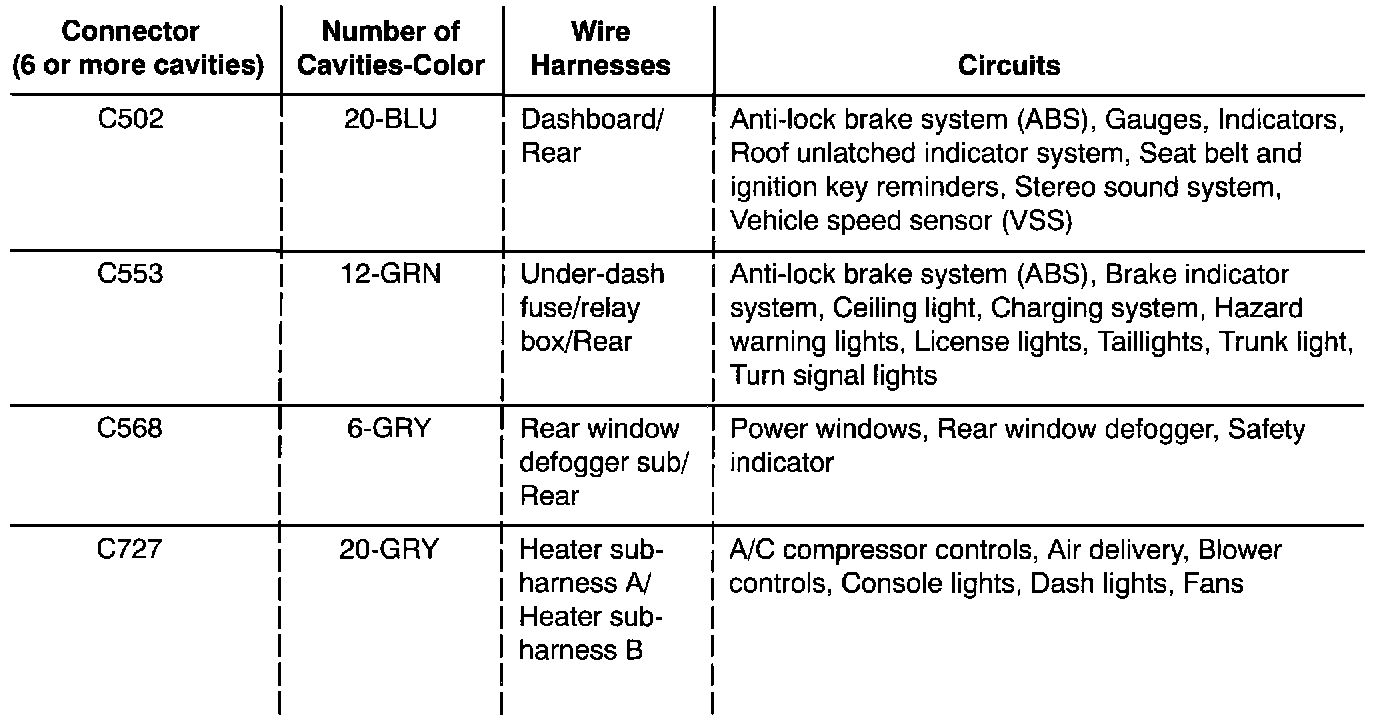

Circuit Identification For In-line And Fuse Box Connectors (Part 3 Of 3):
