Heating and Air Conditioning

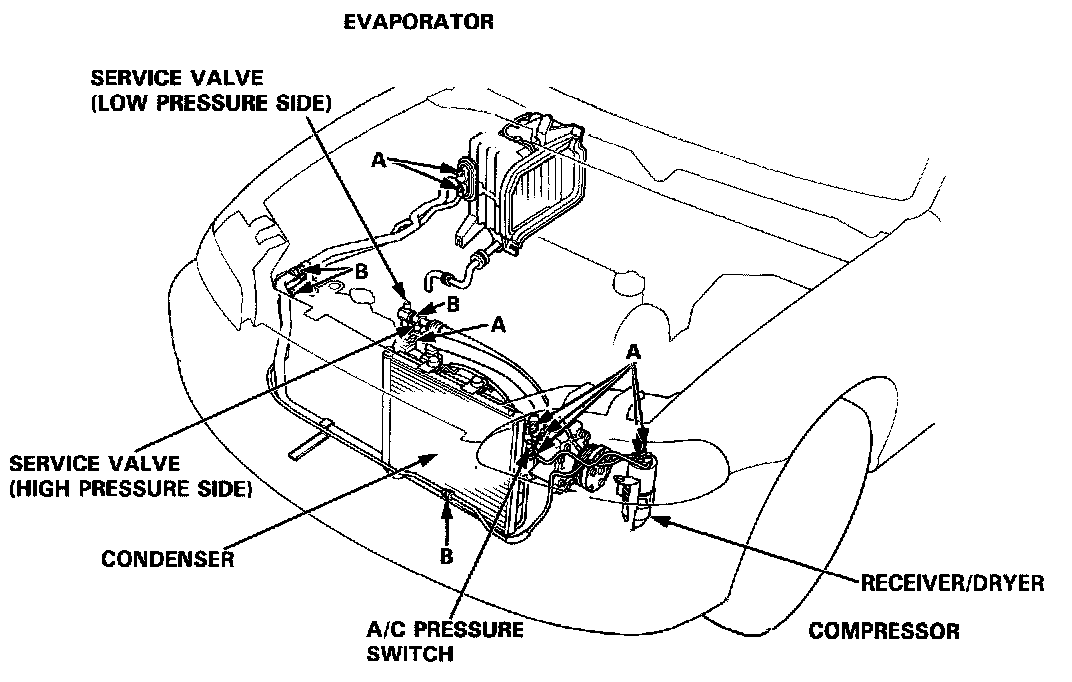

AIR CONDITIONING SYSTEM

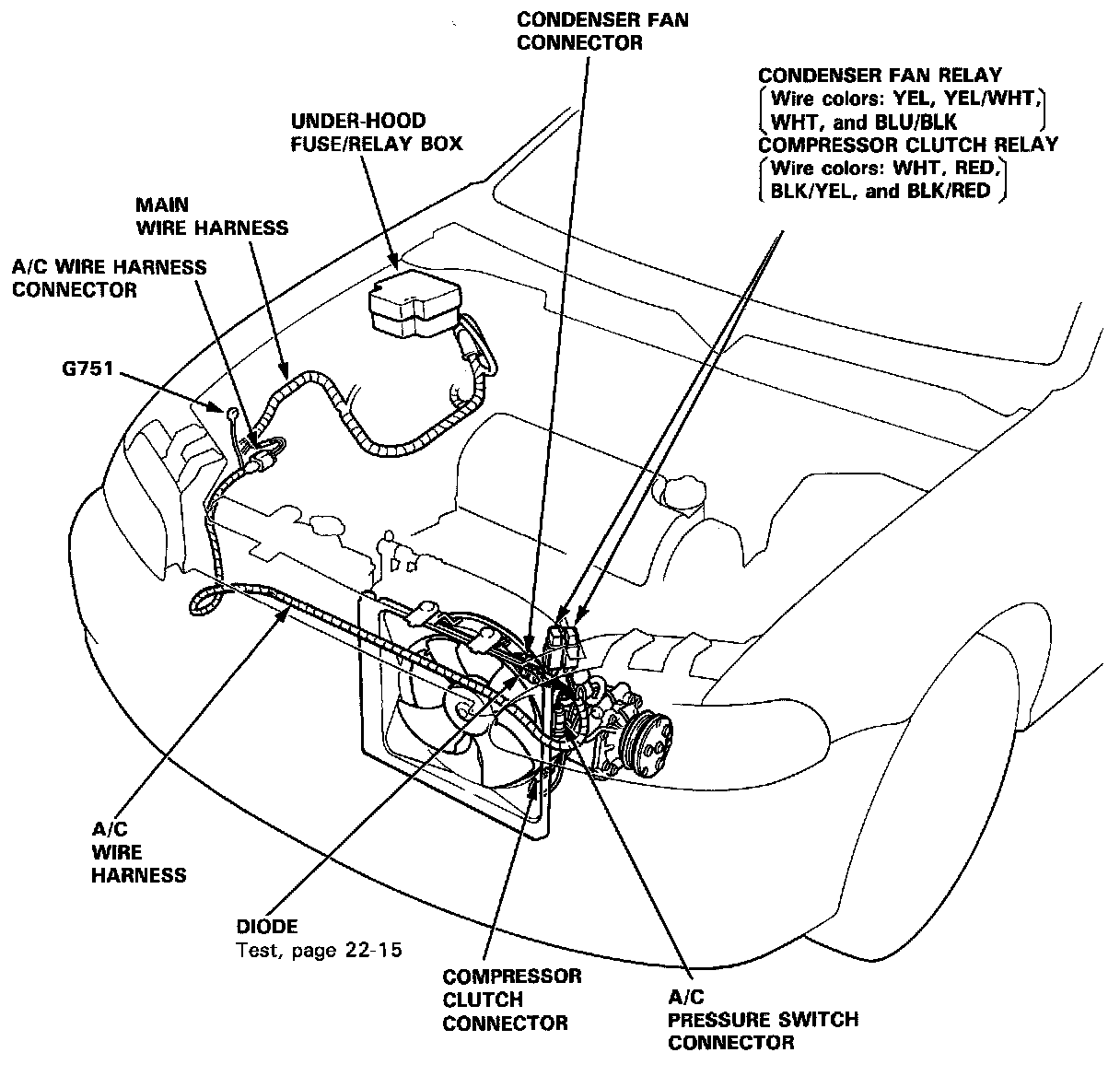

WIRING/CONNECTOR LOCATION

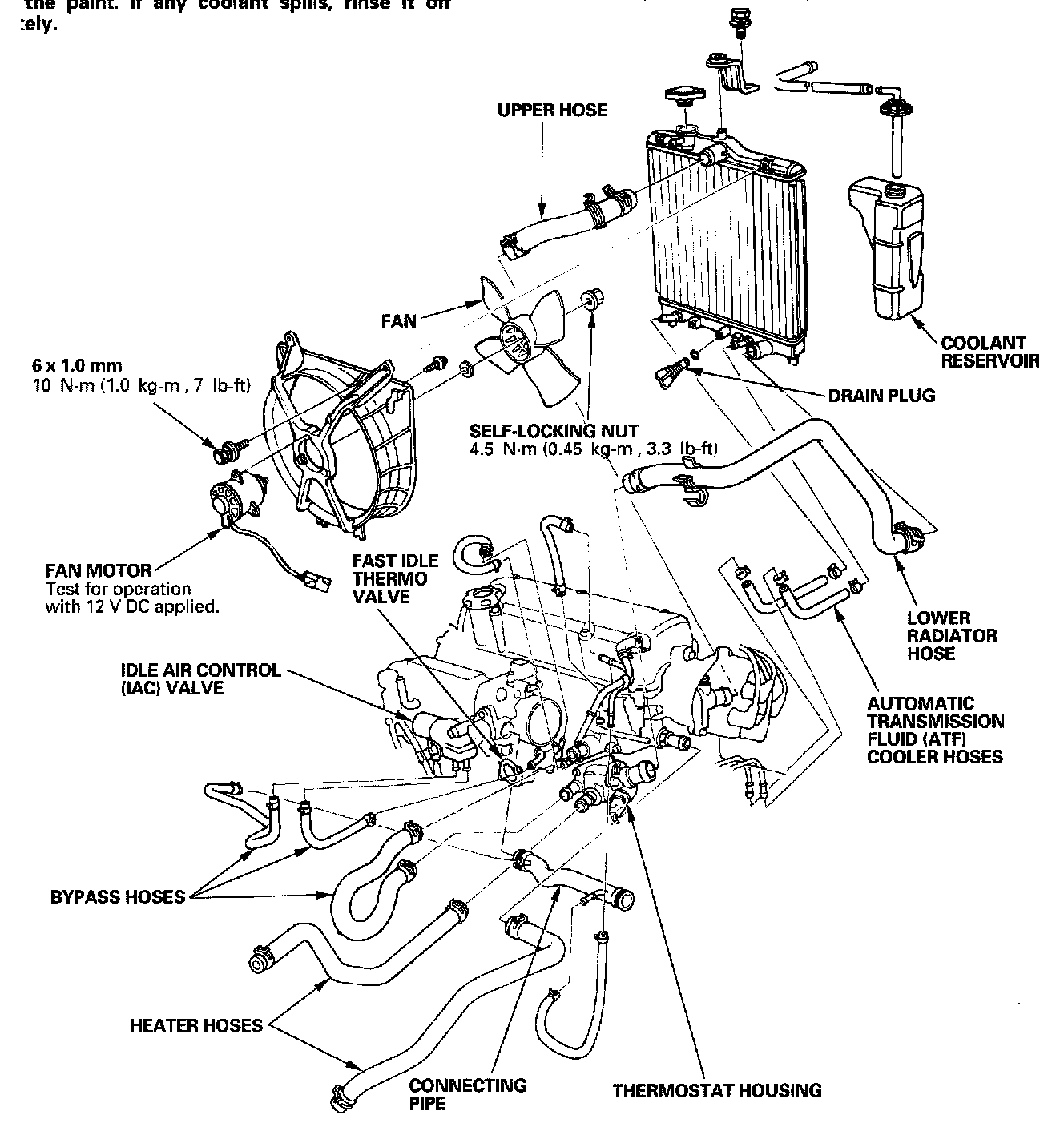

HEATER HOSE ROUTING D15B7 M/T-A/T

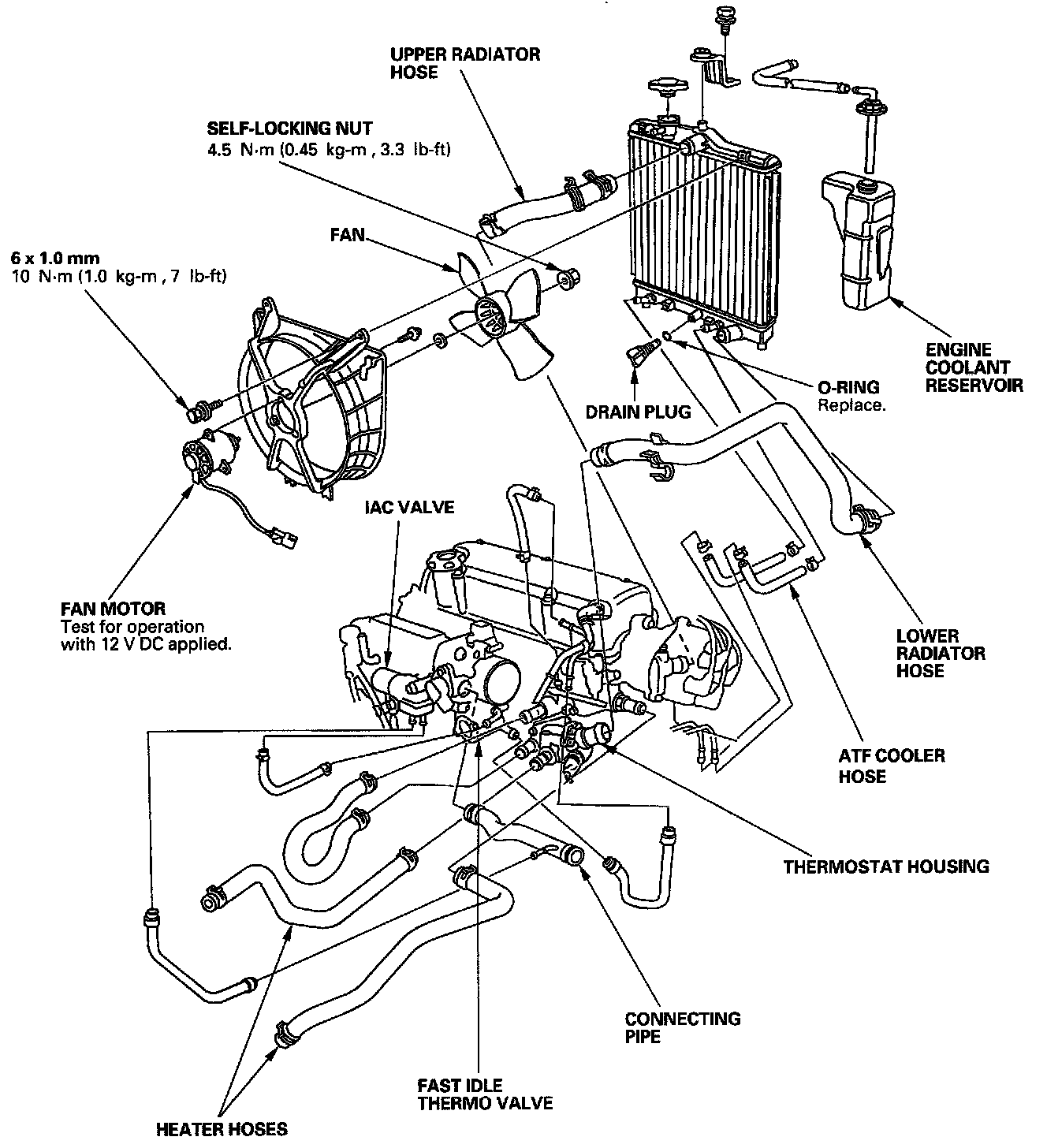

HEATER HOSE ROUTING D16Z6 M/T-A/T

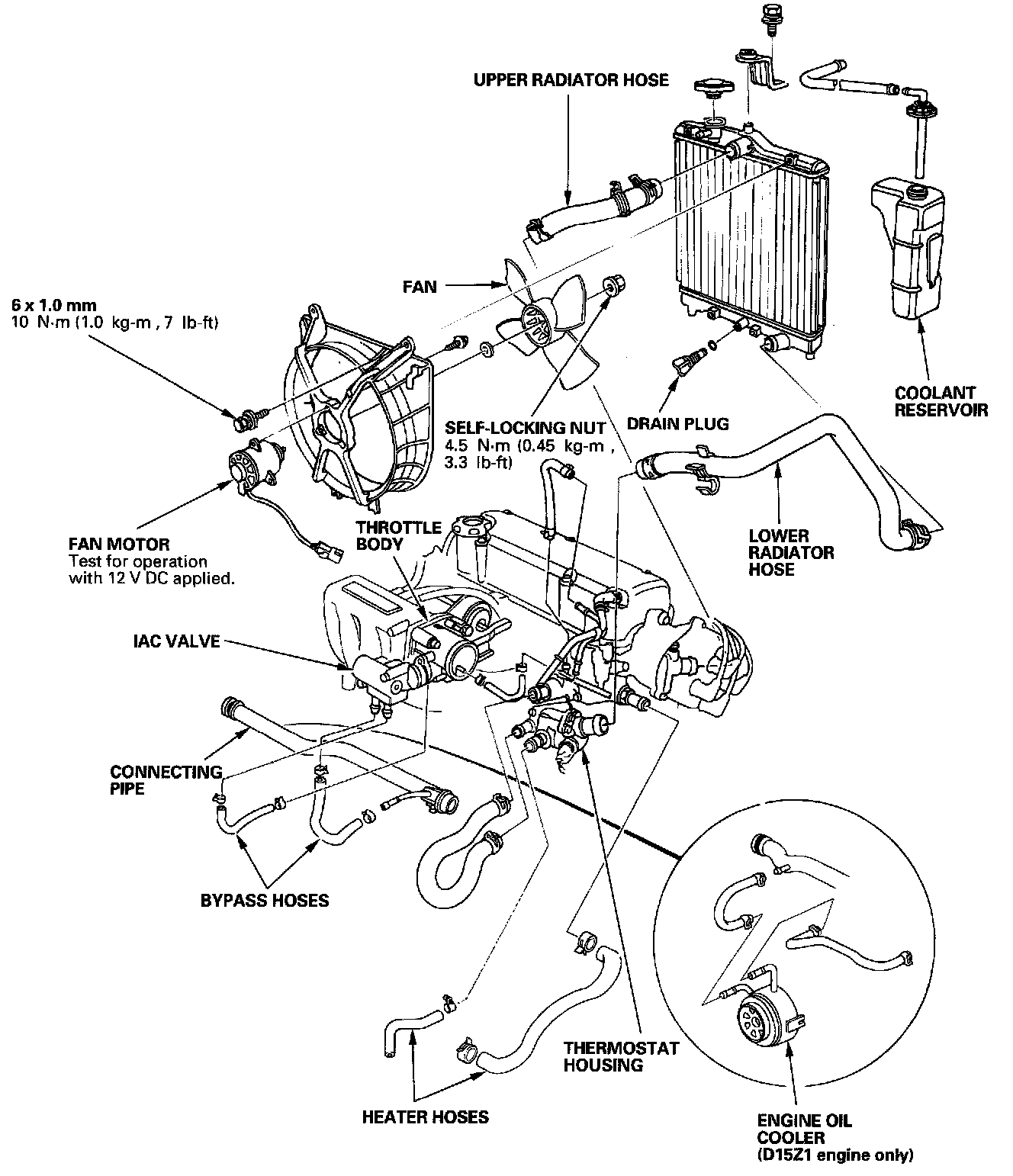

HEATER HOSE ROUTING D15Z1 M/T
HEATER HOSE ROUTING D15B8 M/T
