Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1992 Honda Prelude, 1992 Honda Civic, 1992 Honda Accord, 1991 Honda Prelude, and 1991 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

For 1992 model wiring diagrams, See appropriate chassis wiring diagram in WIRING DIAGRAMS section.

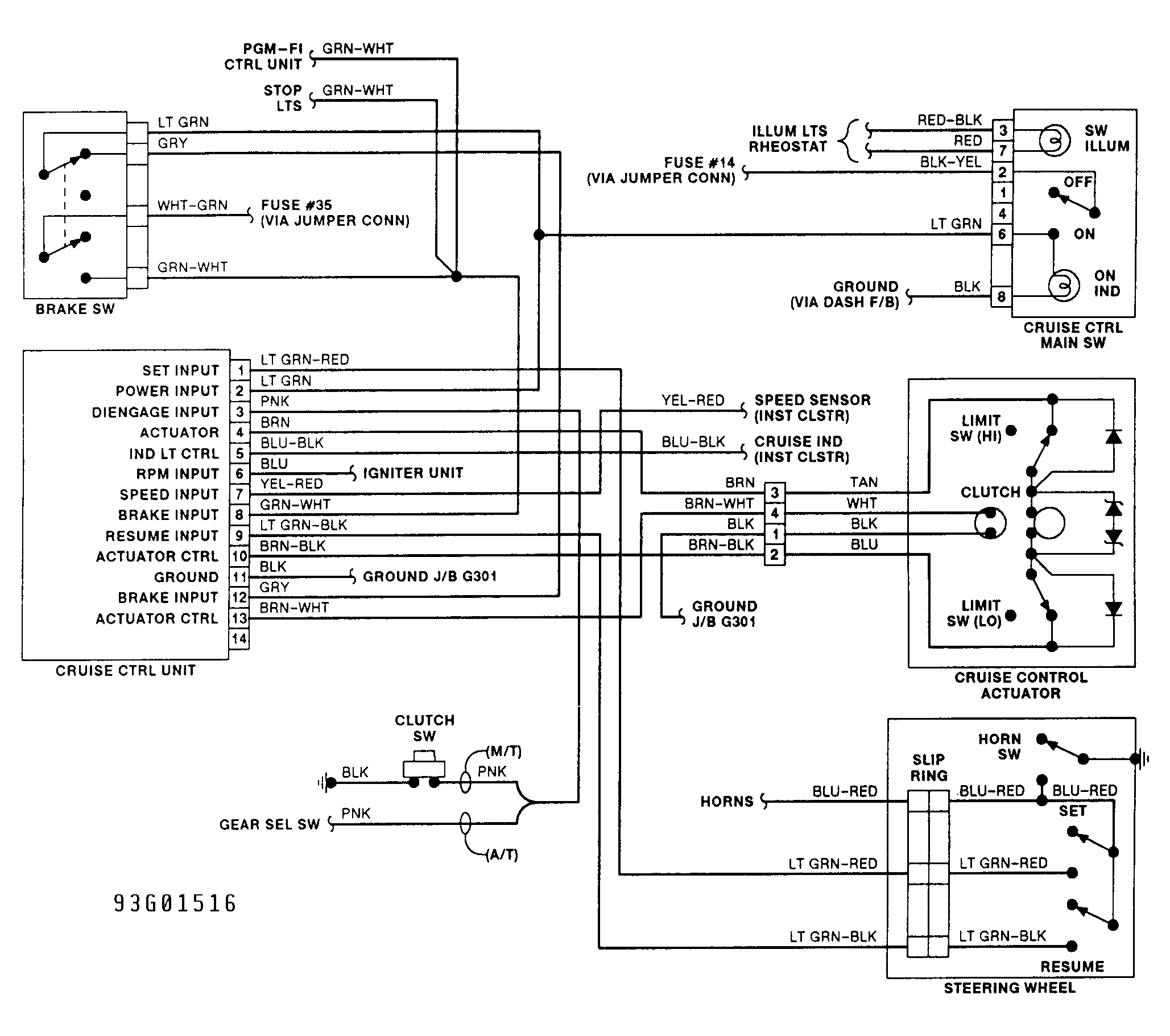

Fig 1: Cruise Control System Wiring Diagram (1991 Accord)

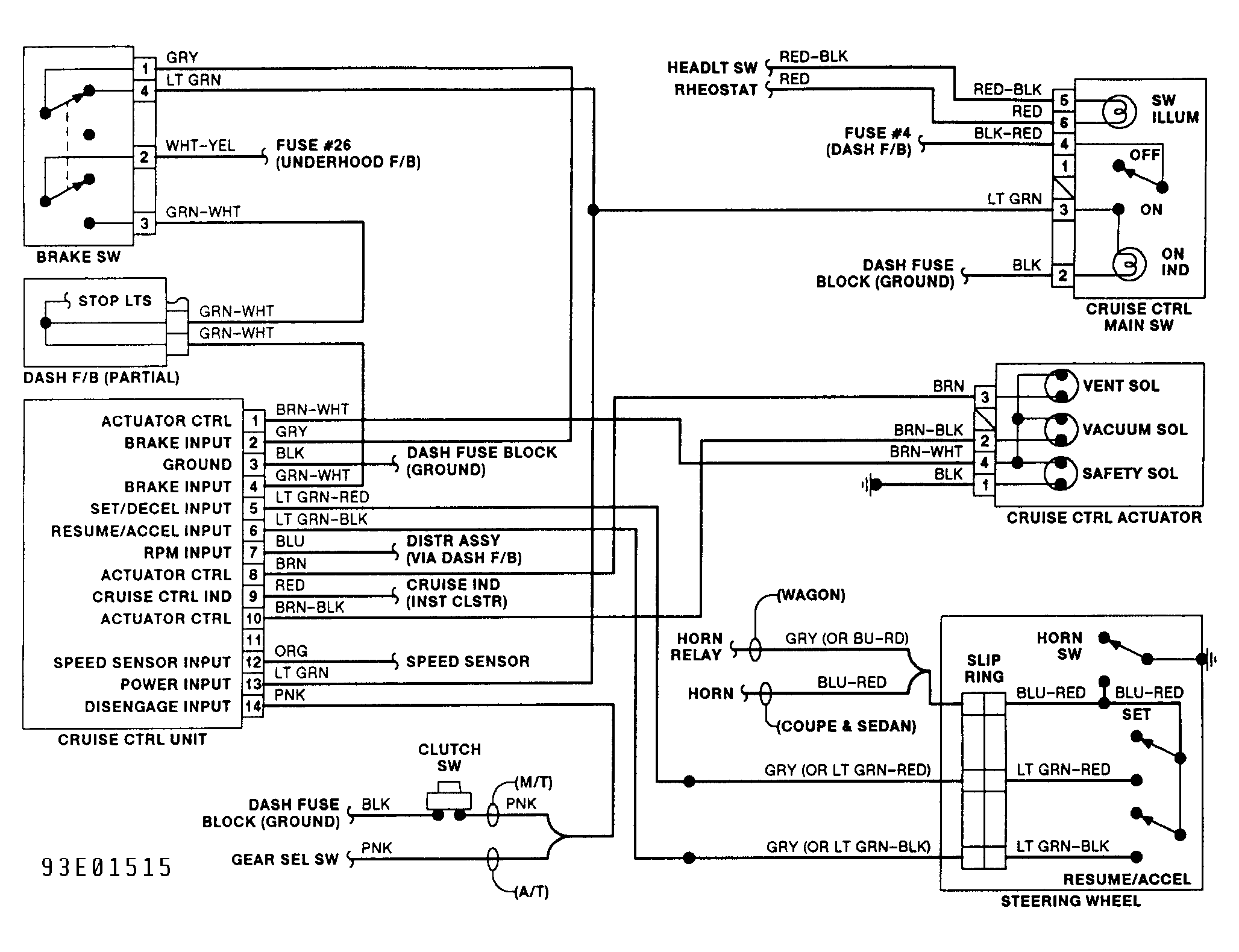

Fig 2: Cruise Control System Wiring Diagram (1991 Civic)

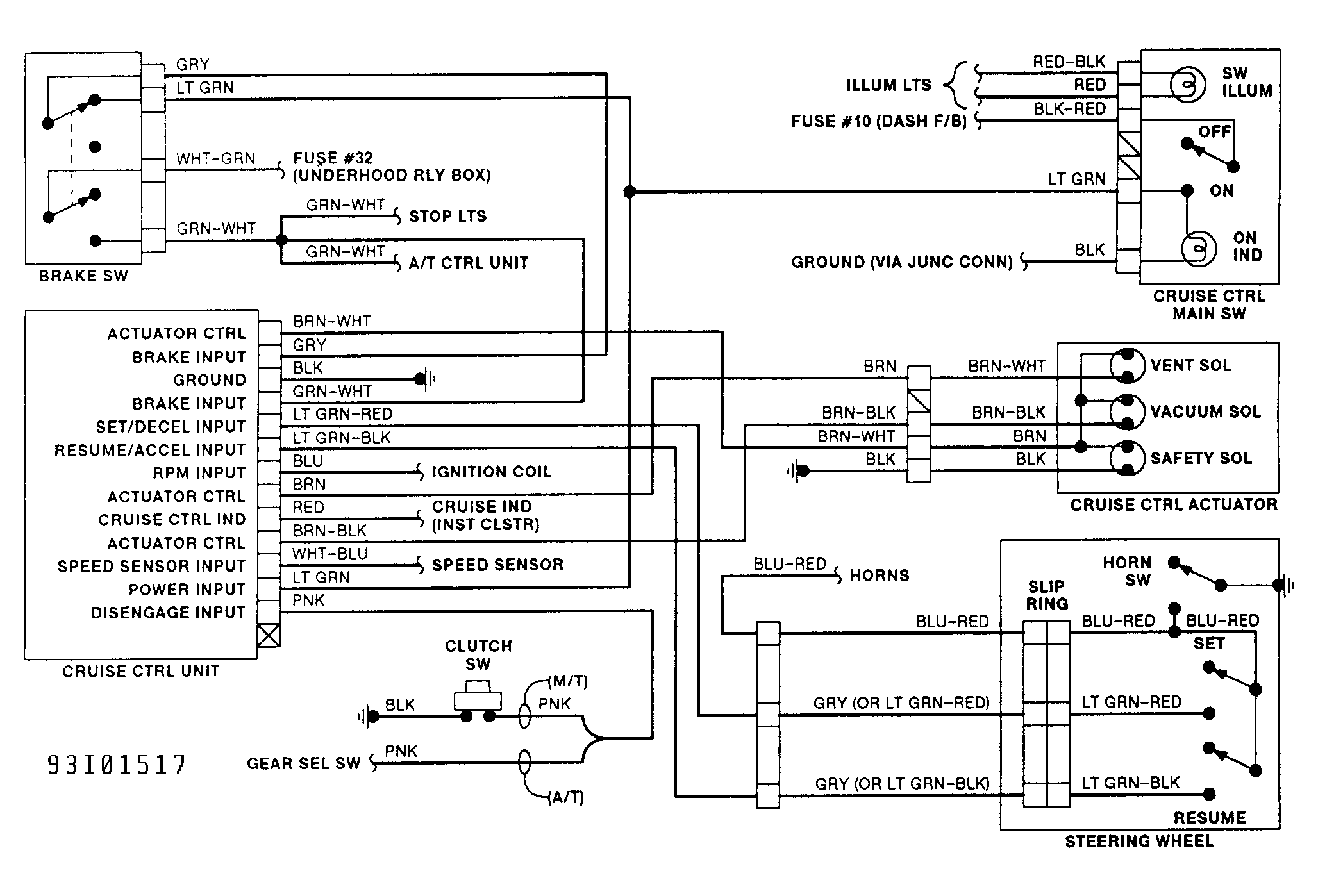

Fig 3: Cruise Control System Wiring Diagram (1991 Prelude)
