Ignition Coil: Service and Repair

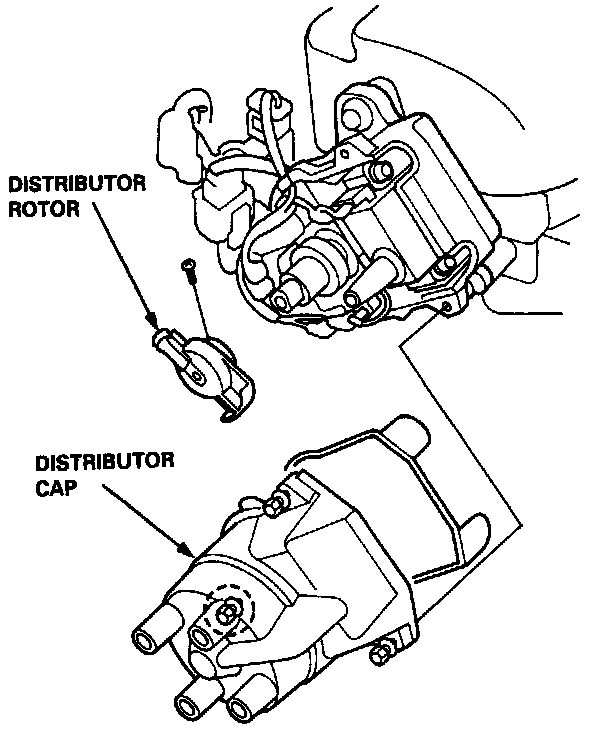

Distributor Cap and Rotor:





1. With the ignition switch OFF, remove the distributor cap, rotor setscrew, and rotor.

2. Disconnect the BLK/YEL and BLU wires from the coil.

Ignition Coil:





3. Remove the two screws, and slide the ignition coil out of the distributor housing.
