Symptom Related Diagnostic Procedures

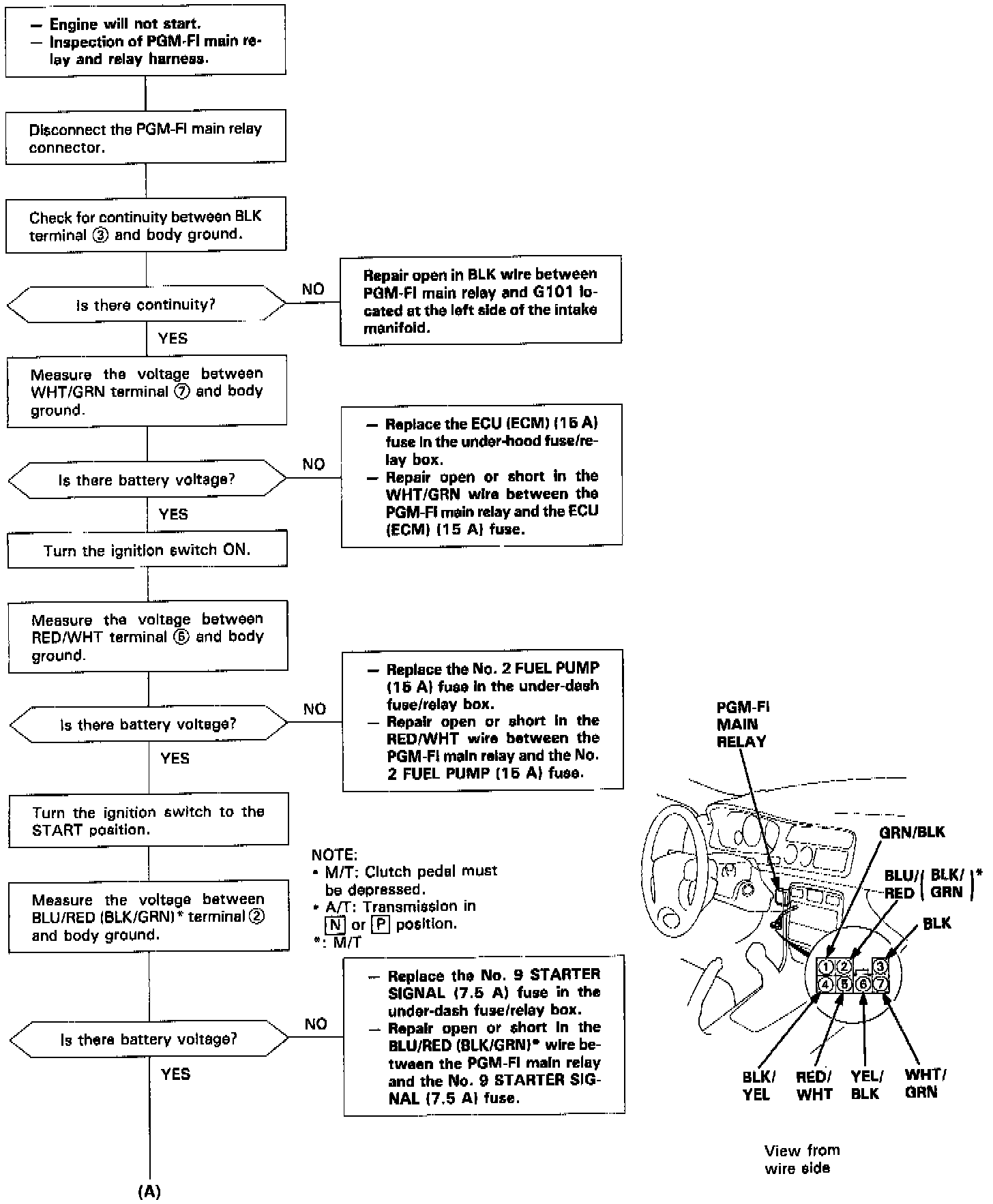

PGM-FI Mail Relay Diagnostic Chart (Part 1 Of 2):

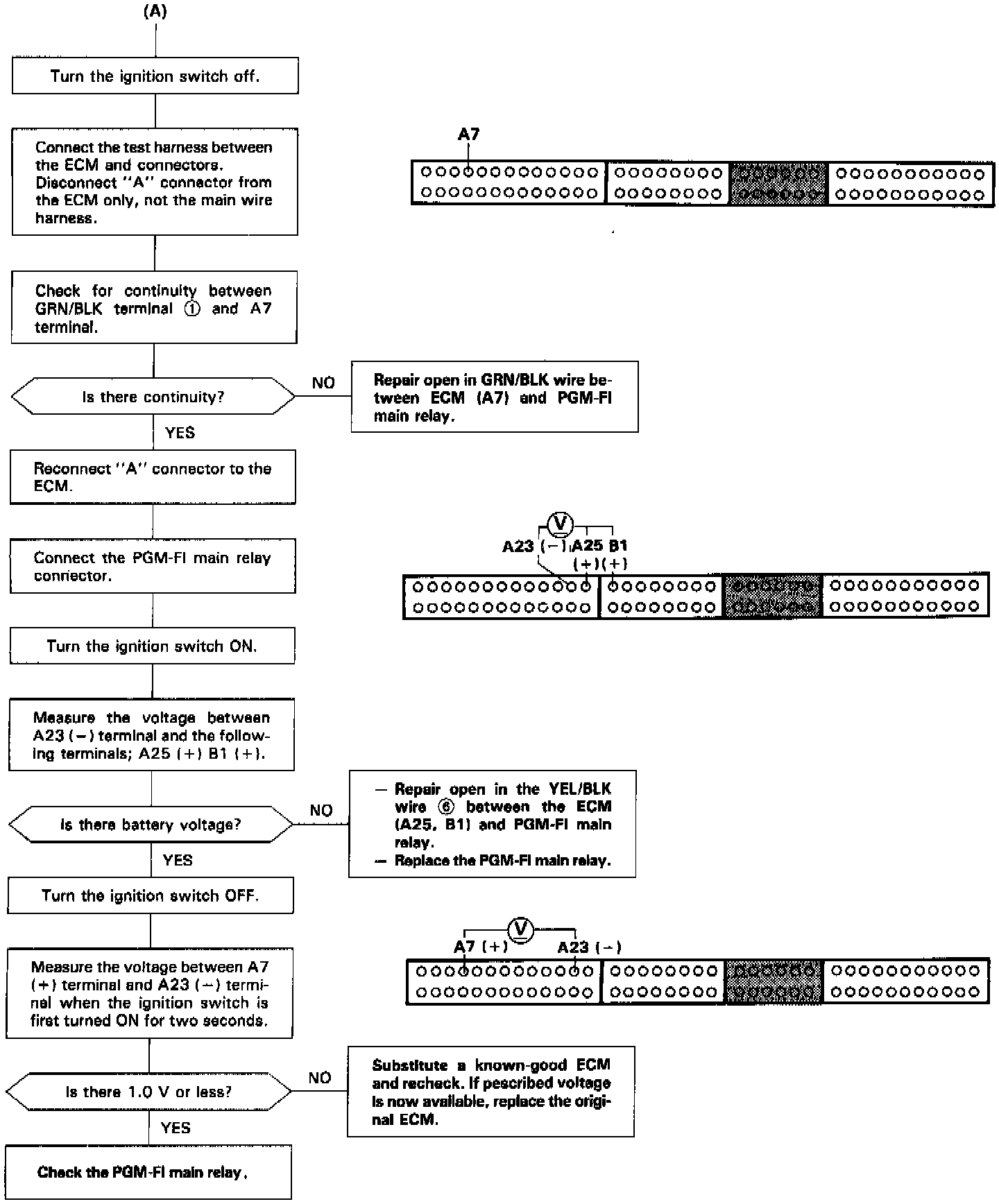

PGM-FI Mail Relay Diagnostic Chart (Part 2 Of 2):
