Valve Body, A/T

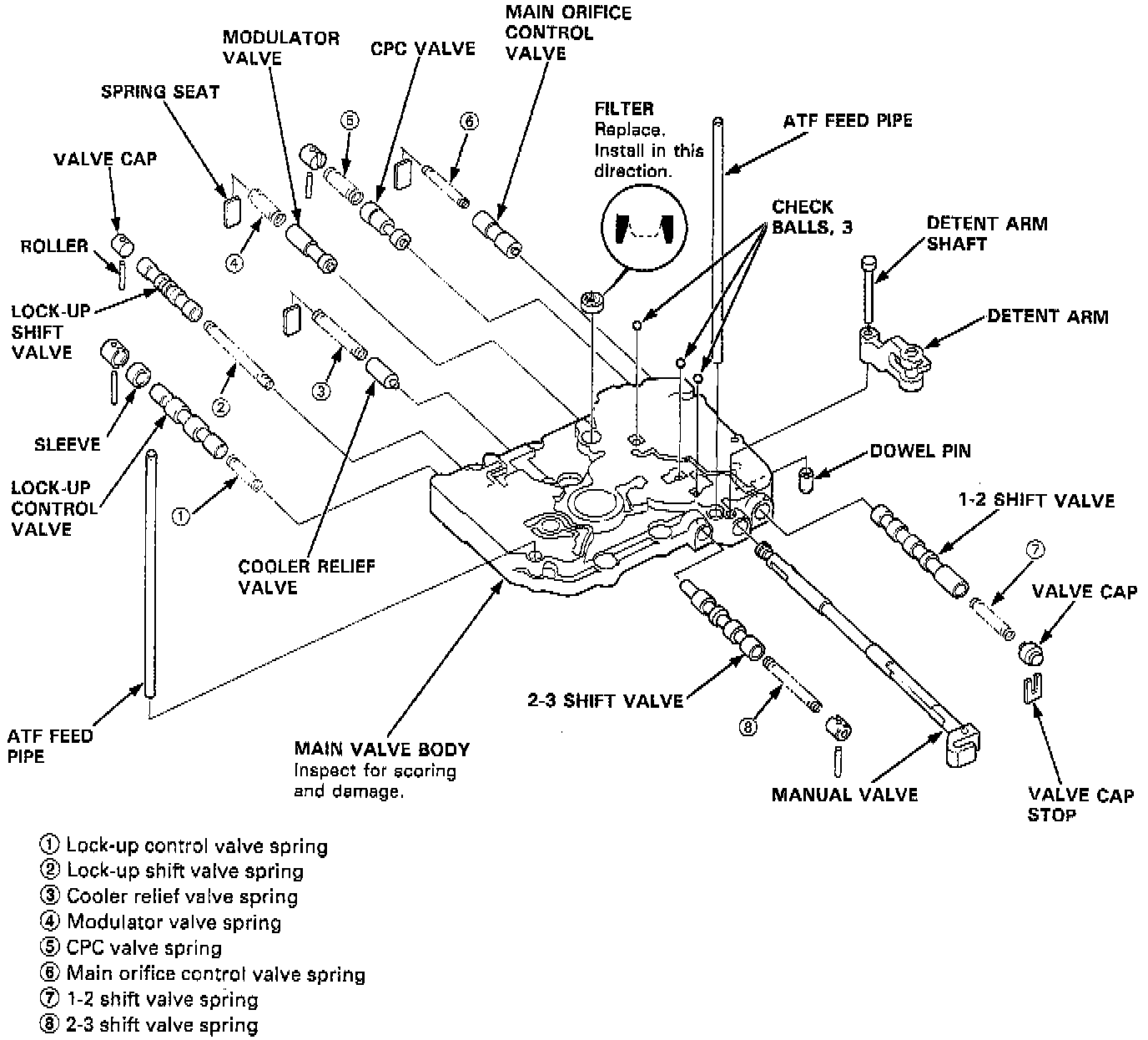

Main Valve Body:

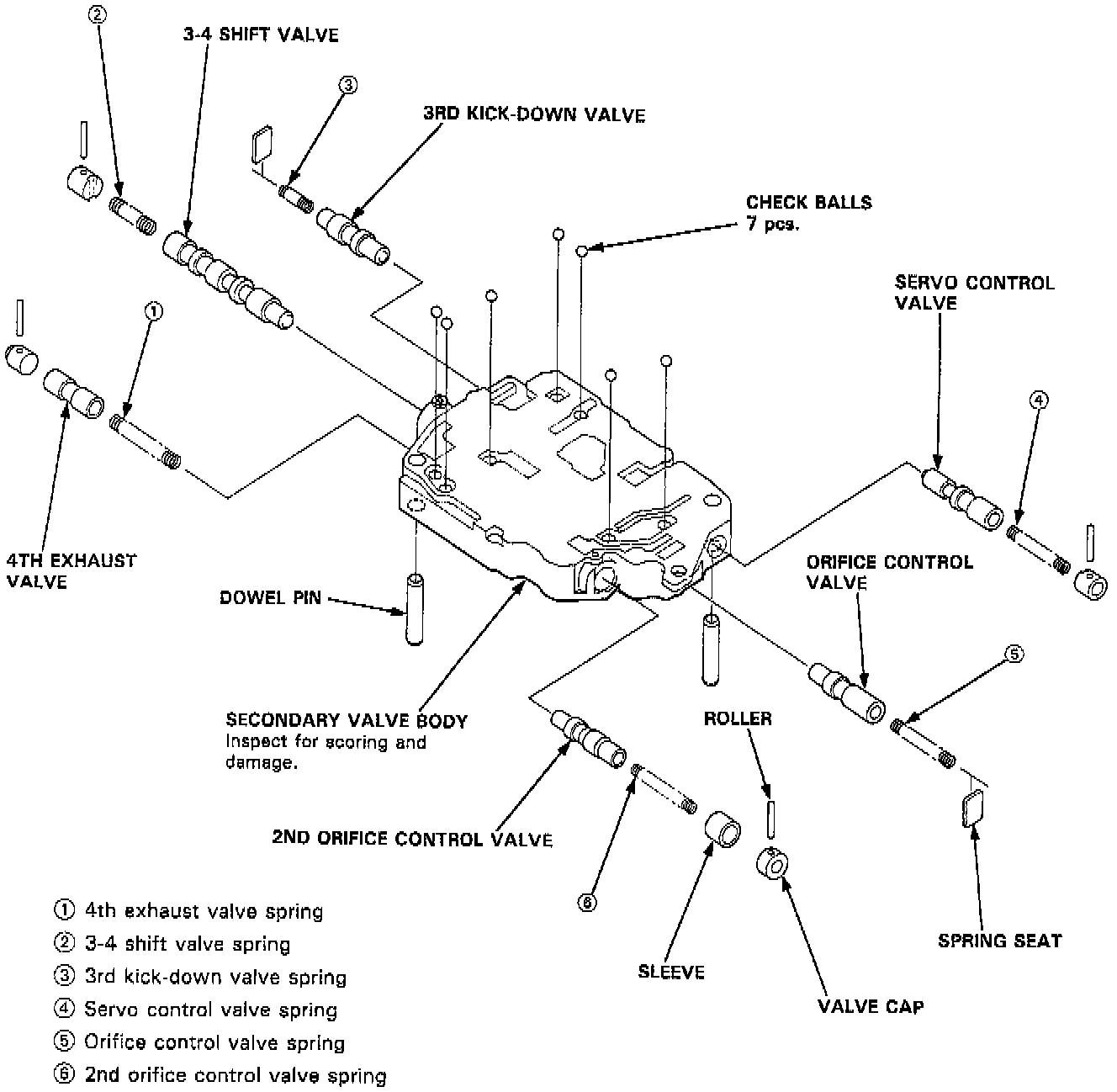

Secondary Valve Body:

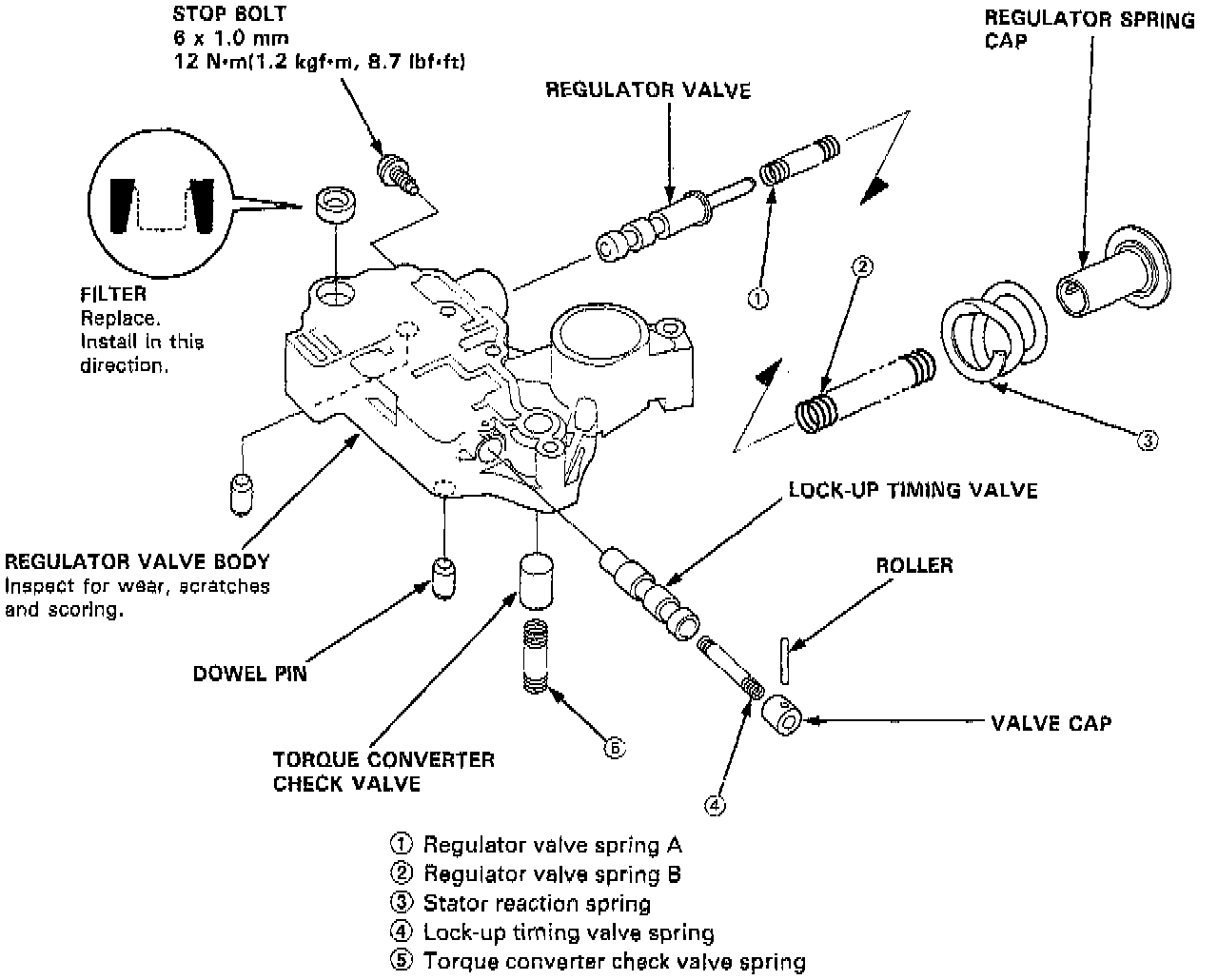

Regulator Valve Body:



Throttle Valve Body:

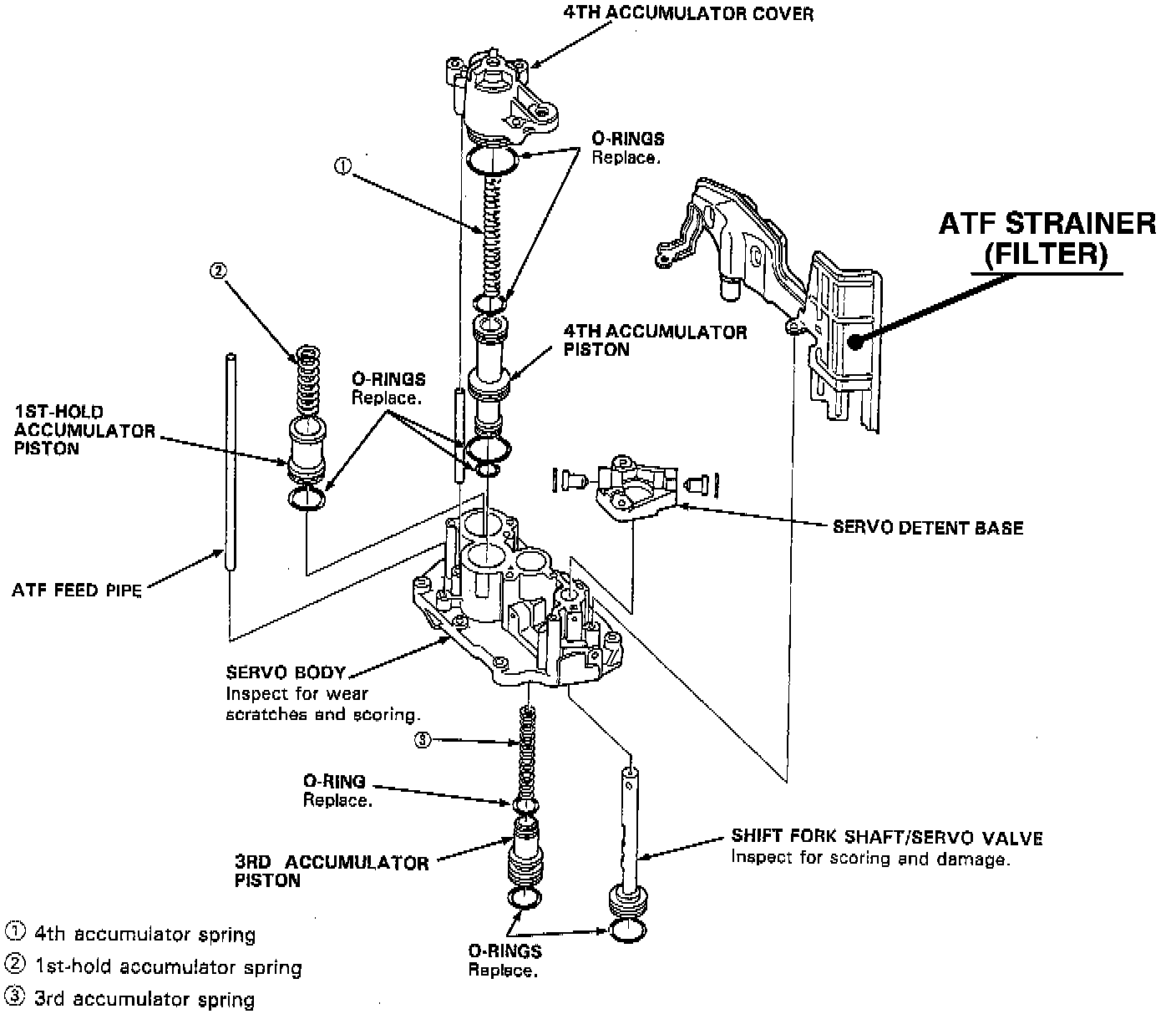

Servo Body:



1st/2nd Accumulator Body:
