Wiring Diagrams

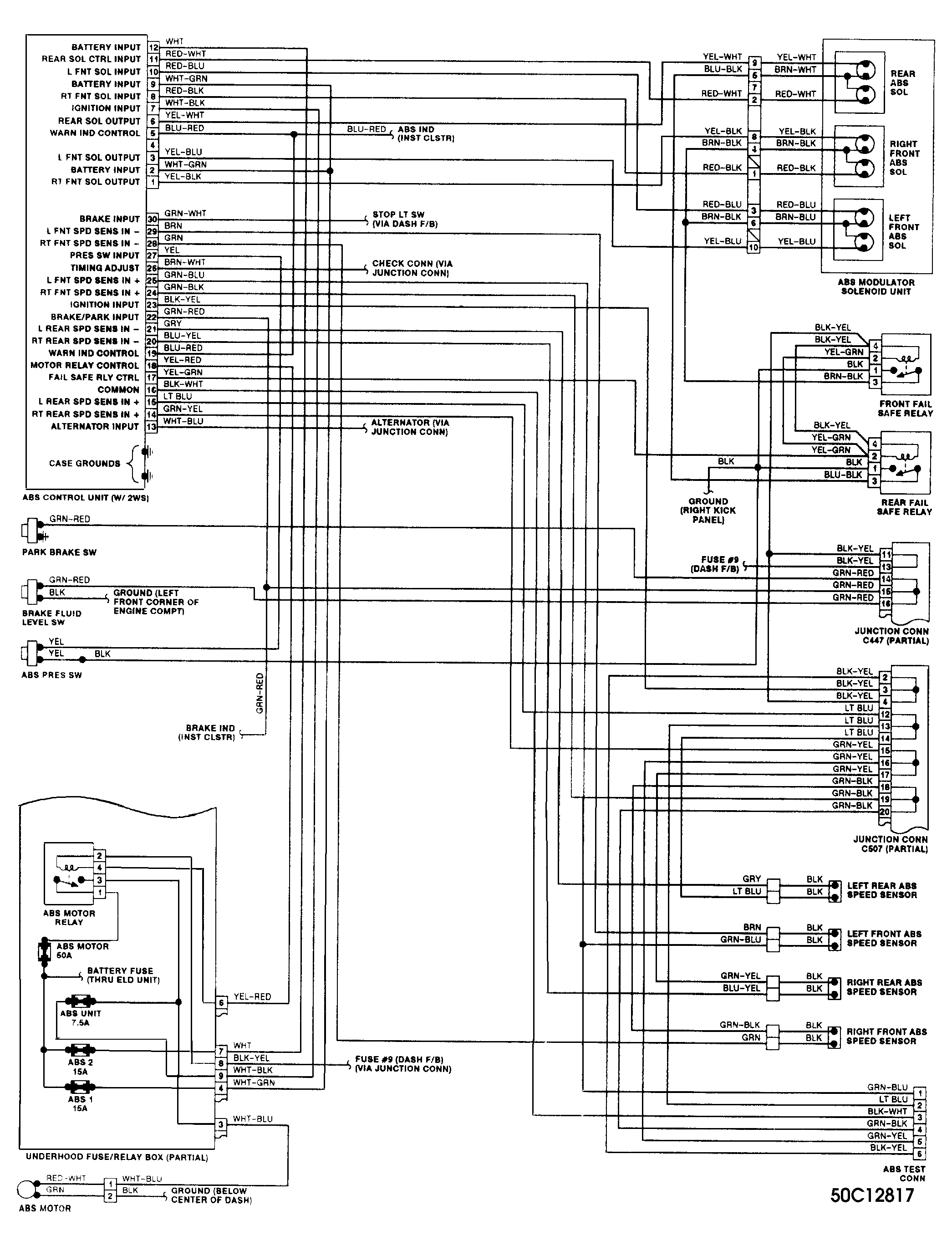

Fig 1: Anti-Lock Brake System Wiring Diagram (Prelude 2WS)
G50C12817

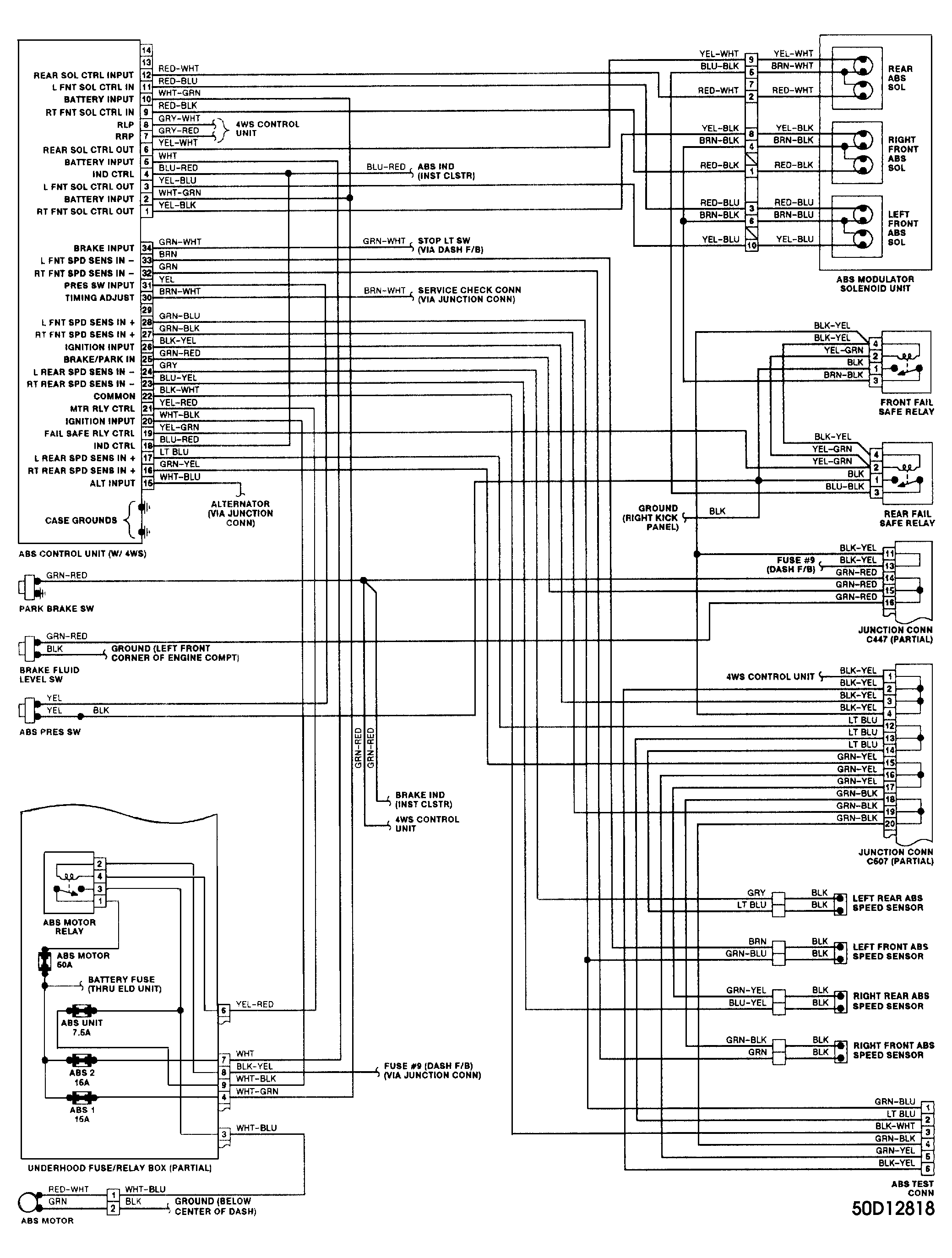

Fig 2: Anti-Lock Brake System Wiring Diagram (Prelude 4WS)
G50D12818
