Code 4-1 To 4-8 Speed Sensor

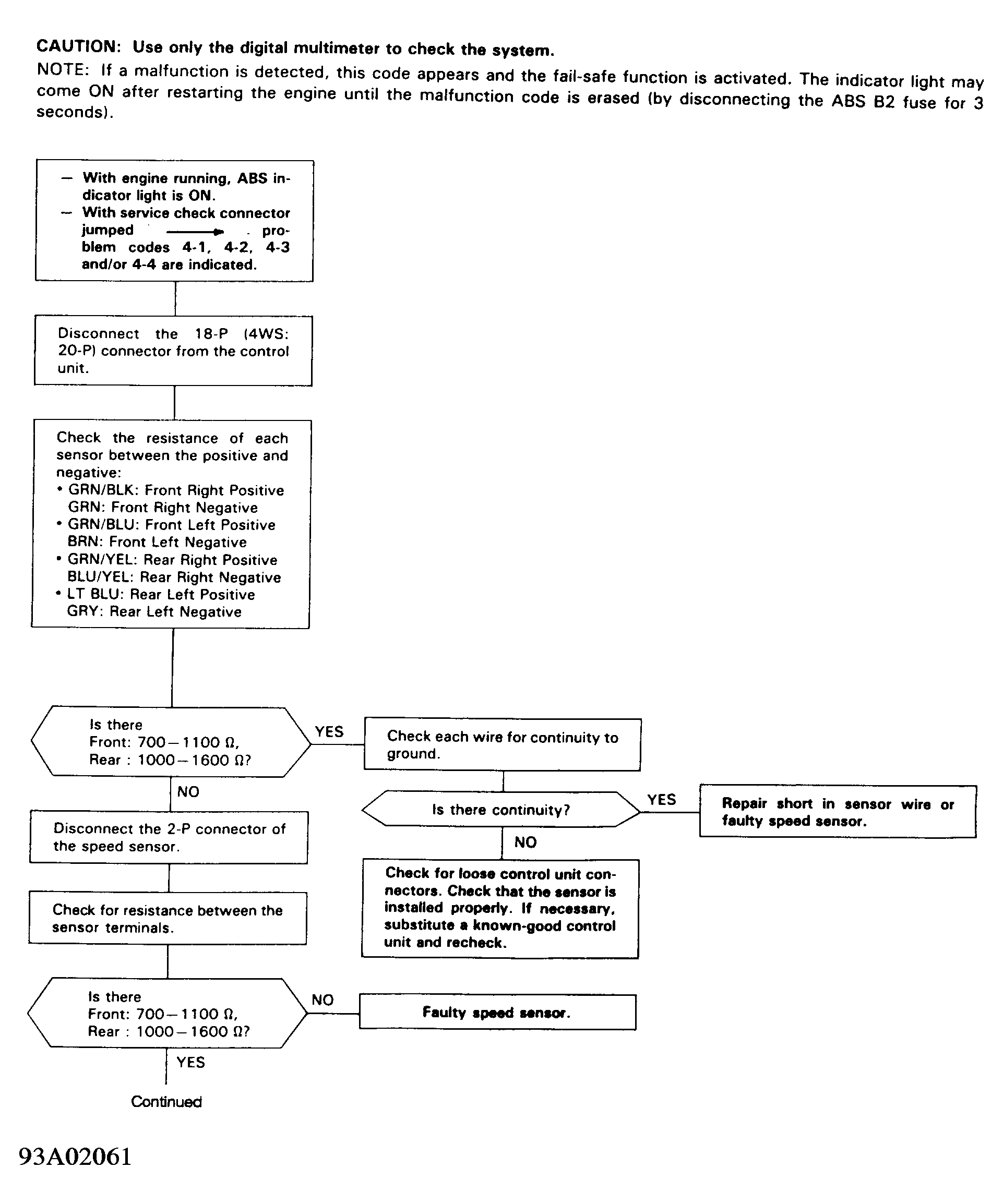

Fig 1: CODE 4-1 TO 4-8 Flow Chart (1 OF 2), SPEED SENSOR

Courtesy of AMERICAN HONDA MOTOR CO., INC.

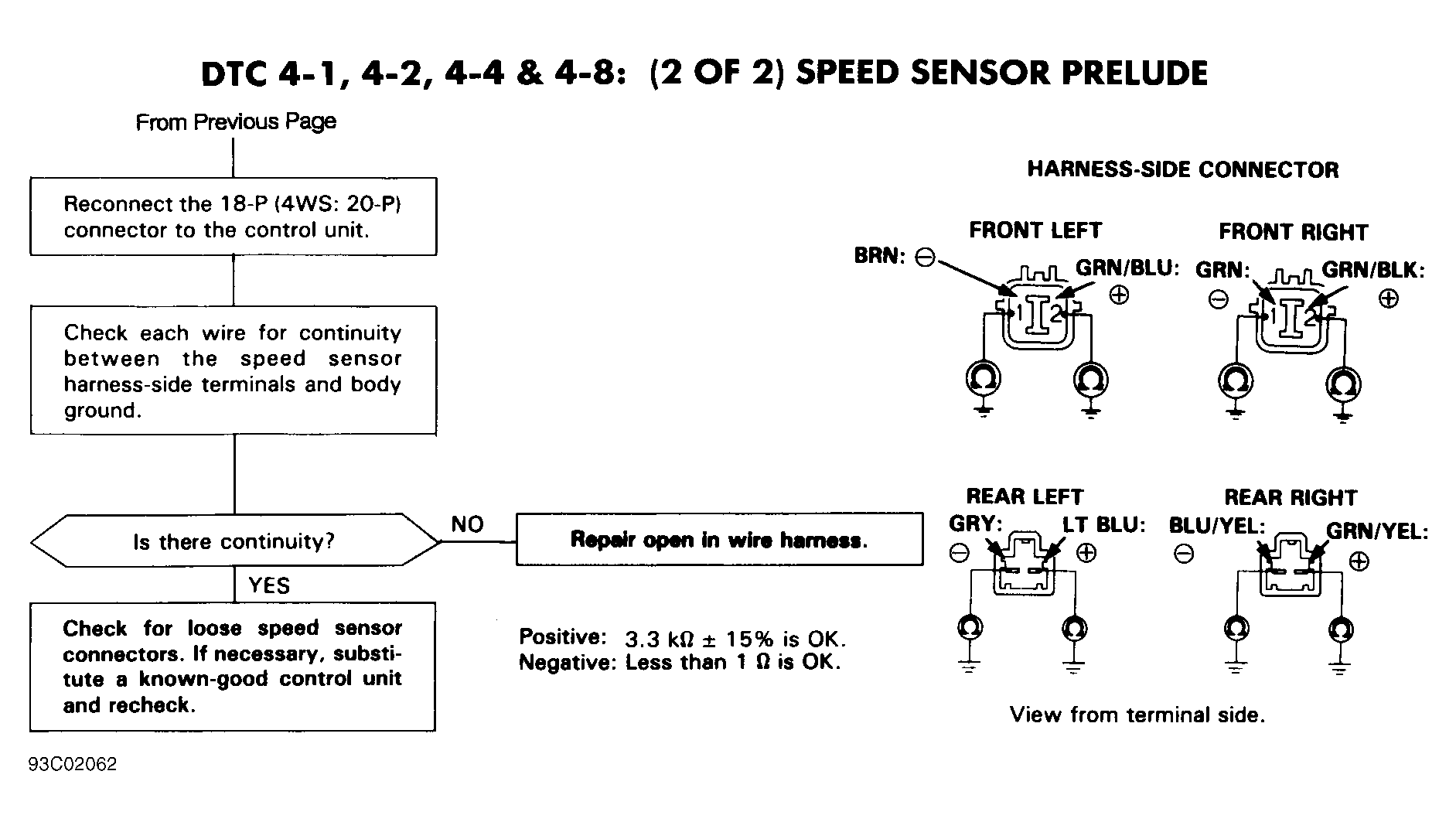

Fig 2: Code 4-1 To 4-8 Flow Chart (2 Of 2), Speed Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
