Torque Specifications

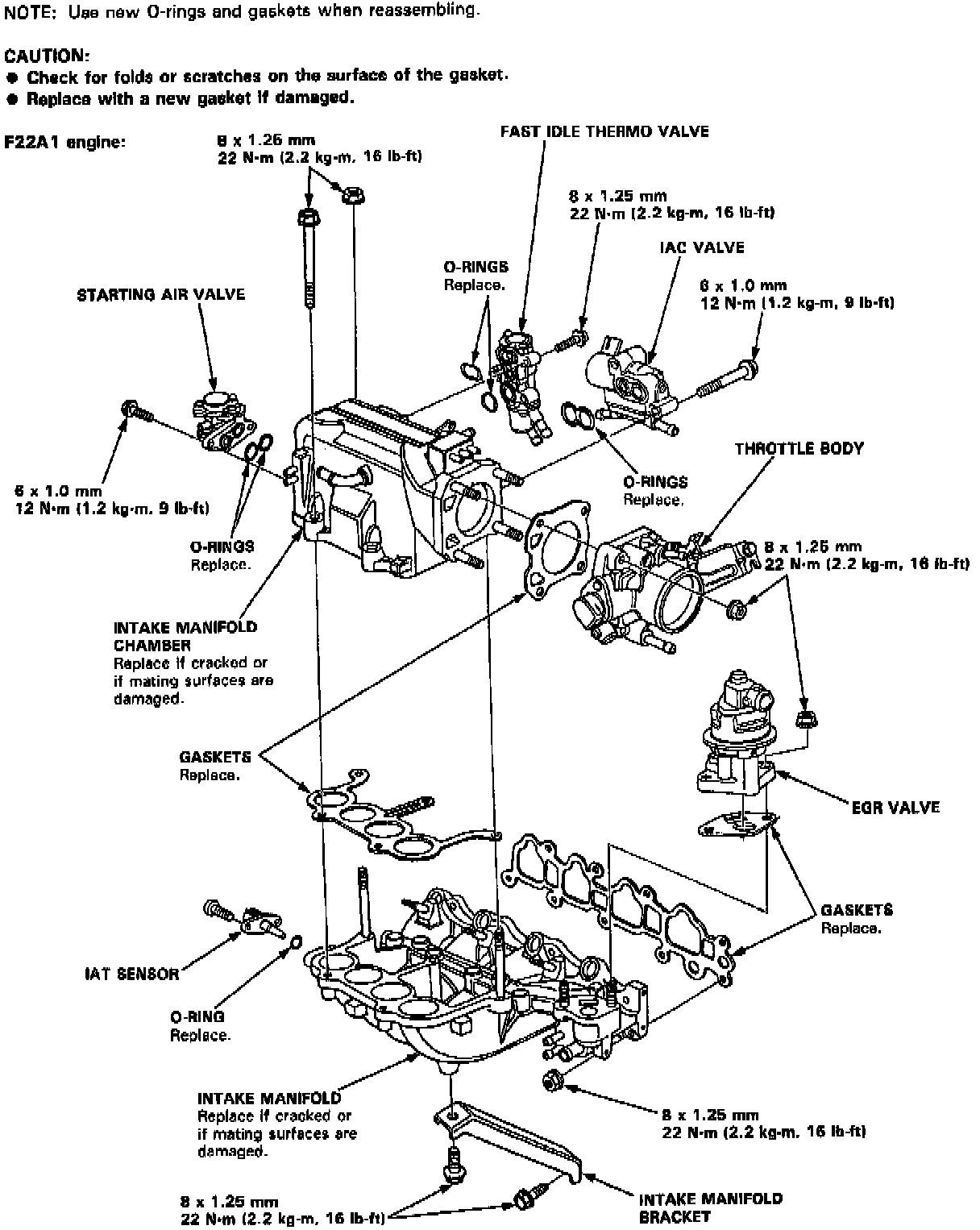

Intake:

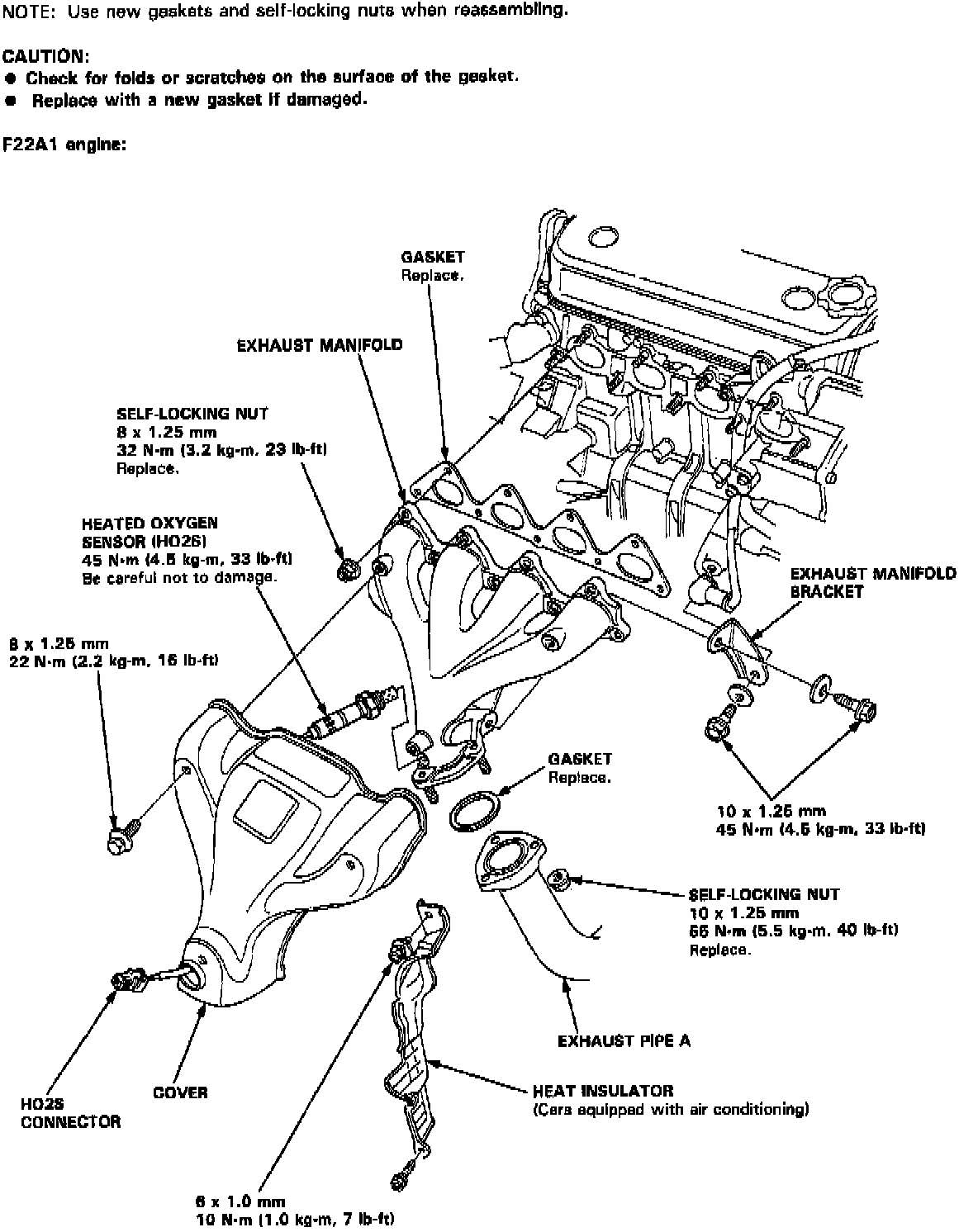

Exhaust Manifold:

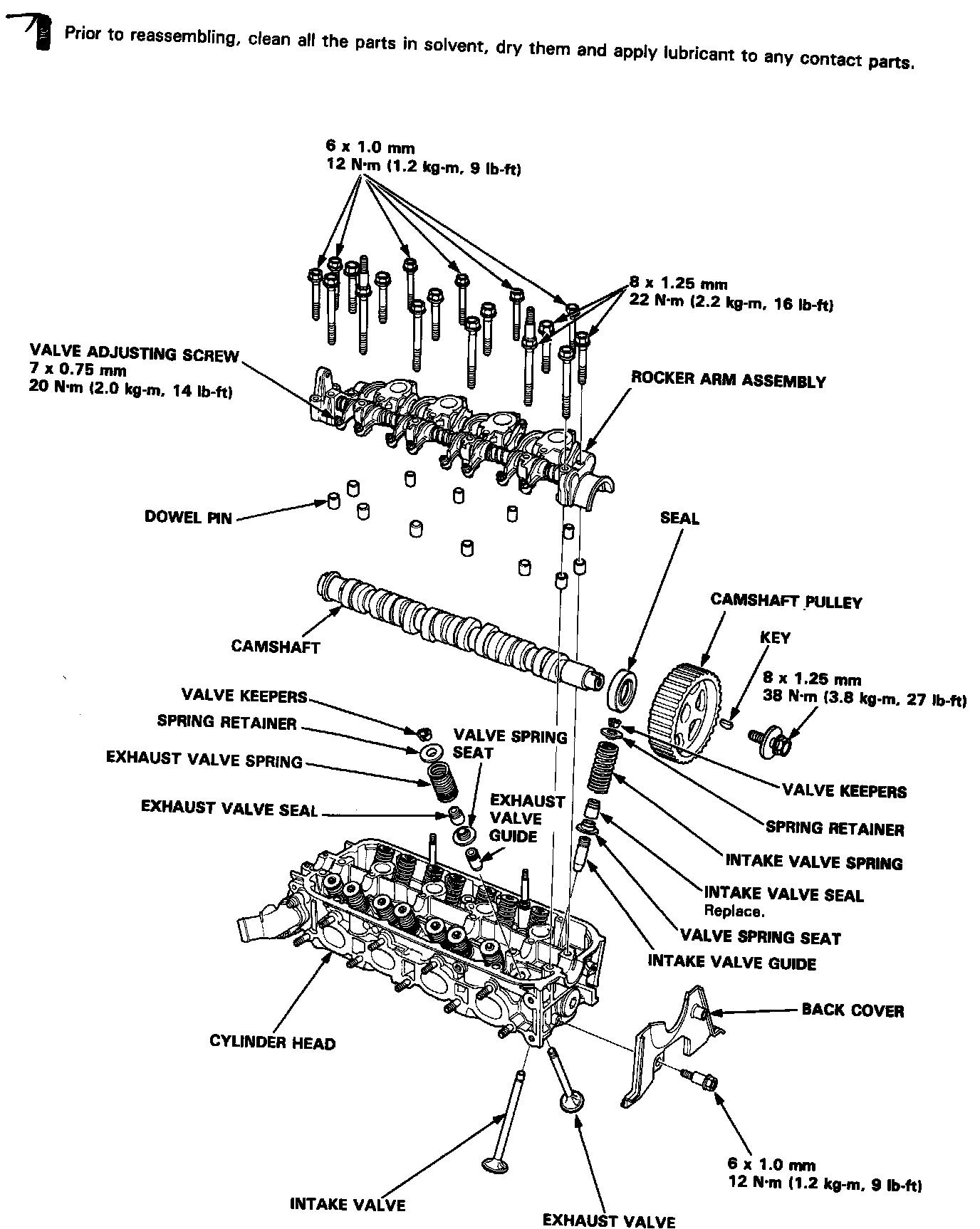

Upper Engine:
Head Bolt Loosening Sequence:

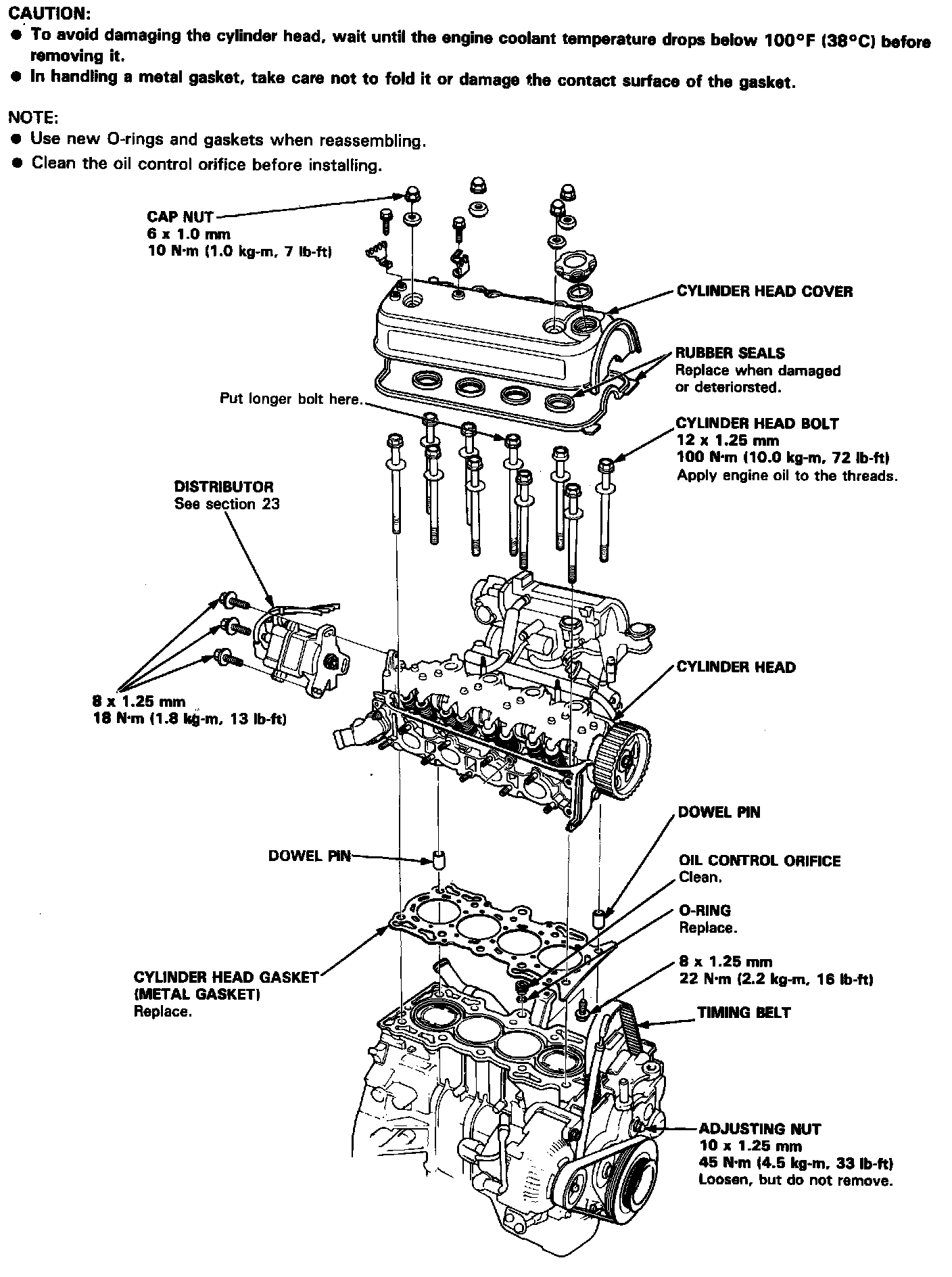

Head Bolt Torque Sequence:
Torque cylinder head attaching bolts in three steps; first step to 29 ft. lbs., second step to 51 ft. lbs., third step to 72 ft. lbs.
Cam Holder Loosening Sequence:
Cam Holder Torque Sequence:
Timing Components:

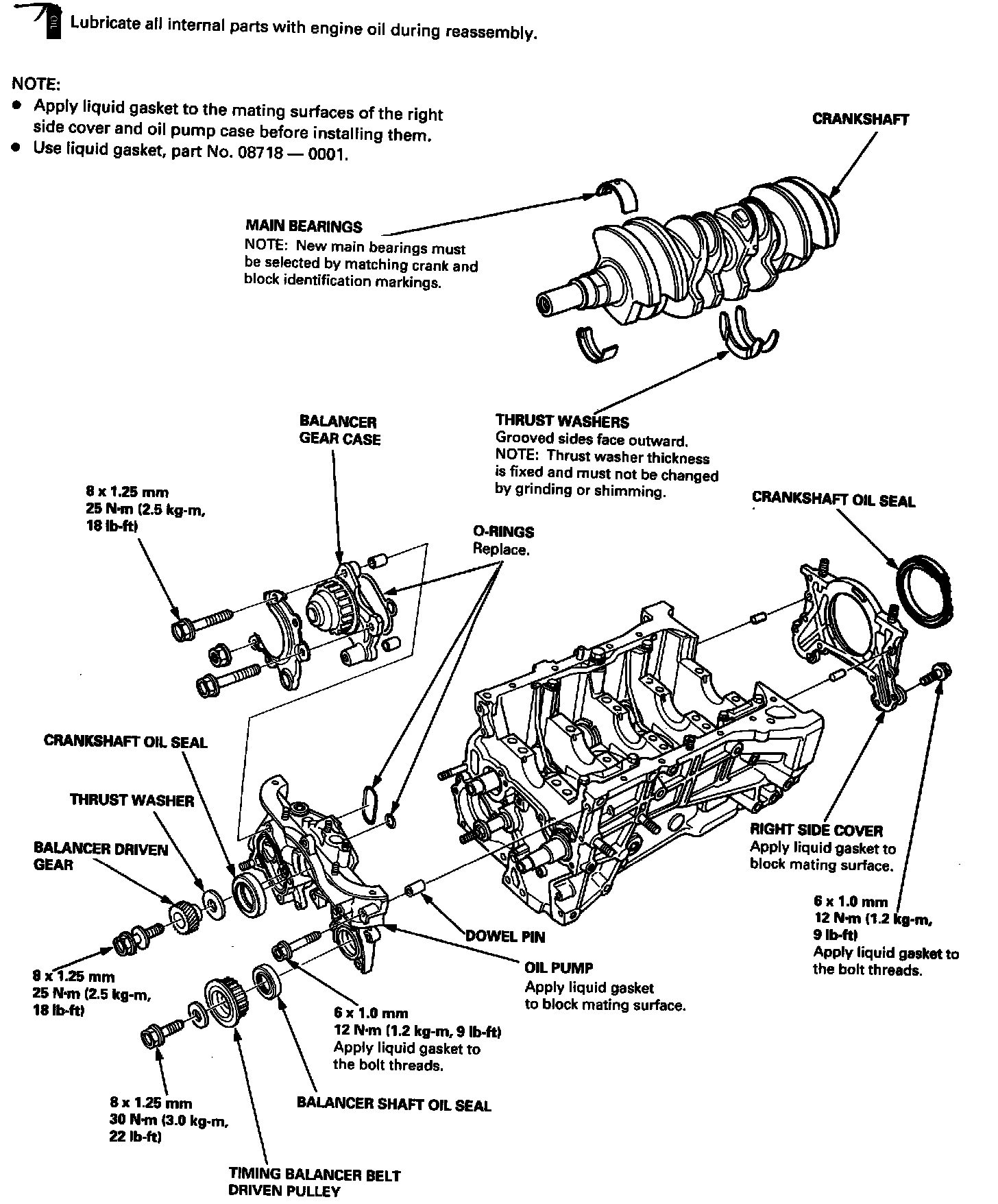

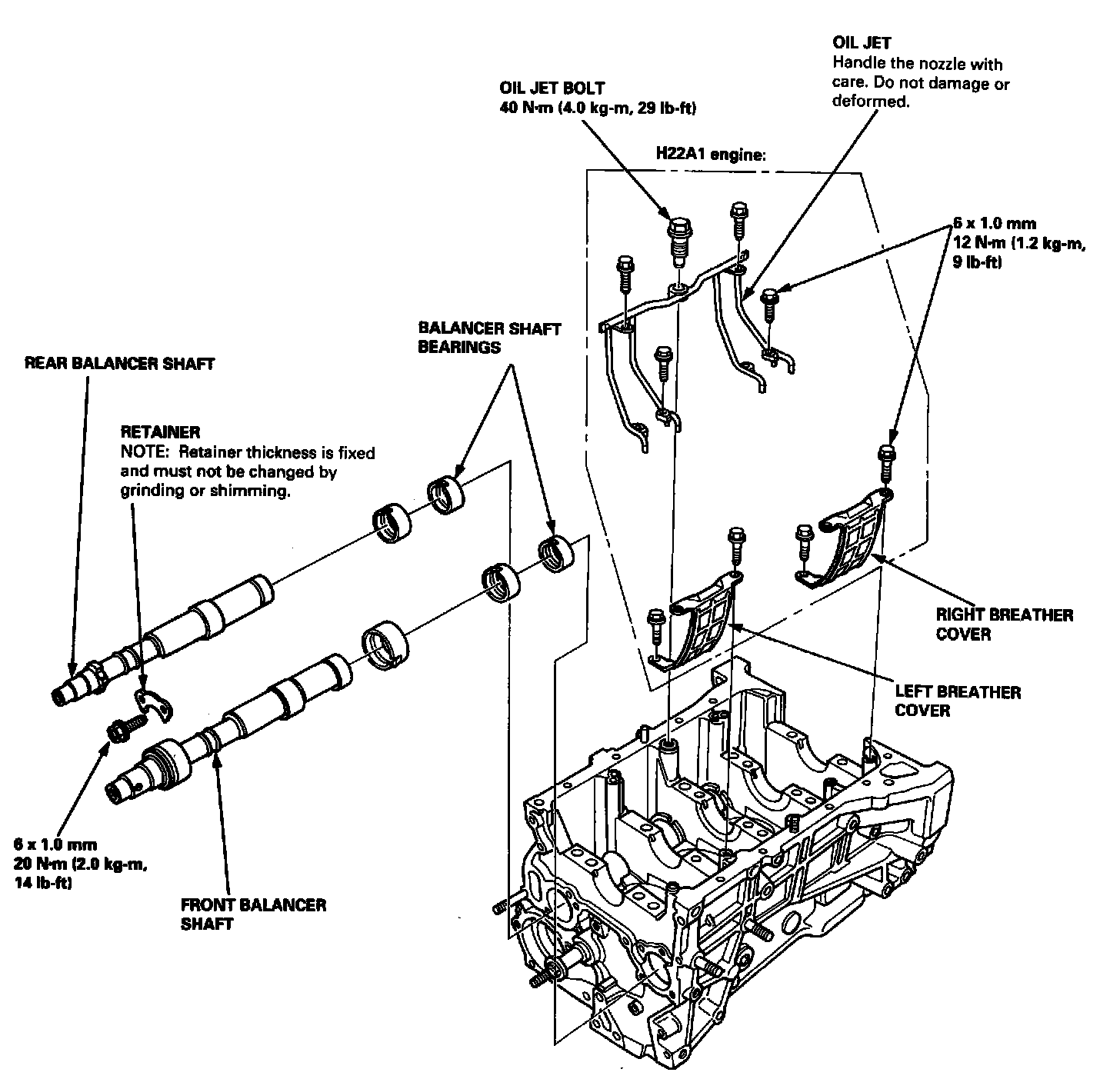

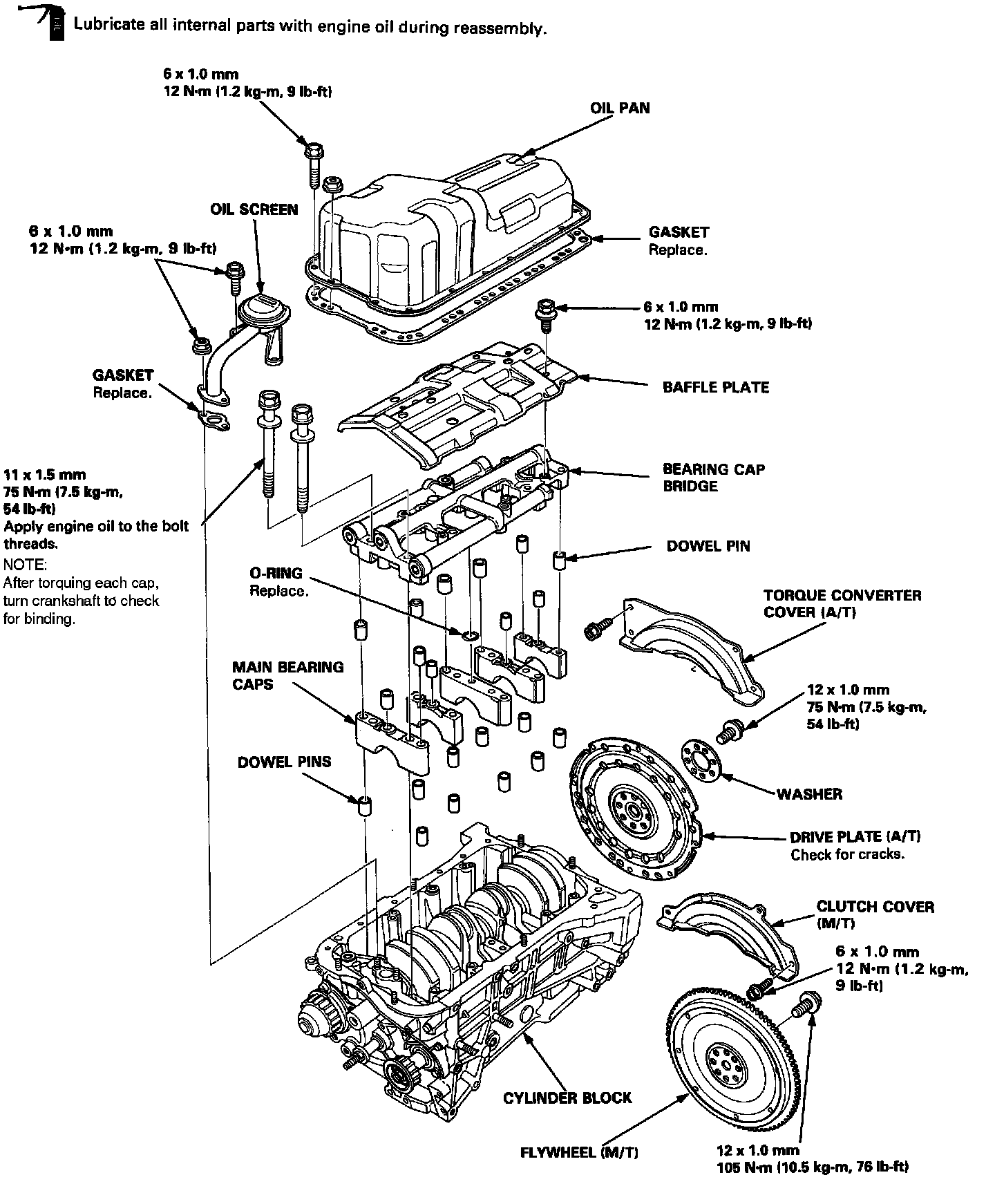

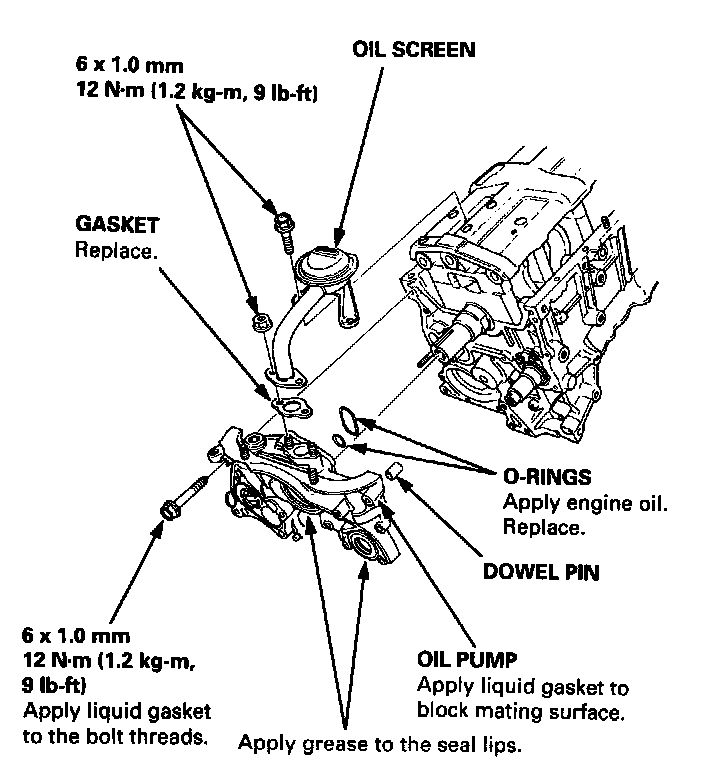

Lower Engine:
Main Bolt Loosening Sequence:
Main Bolt Torque Sequence:

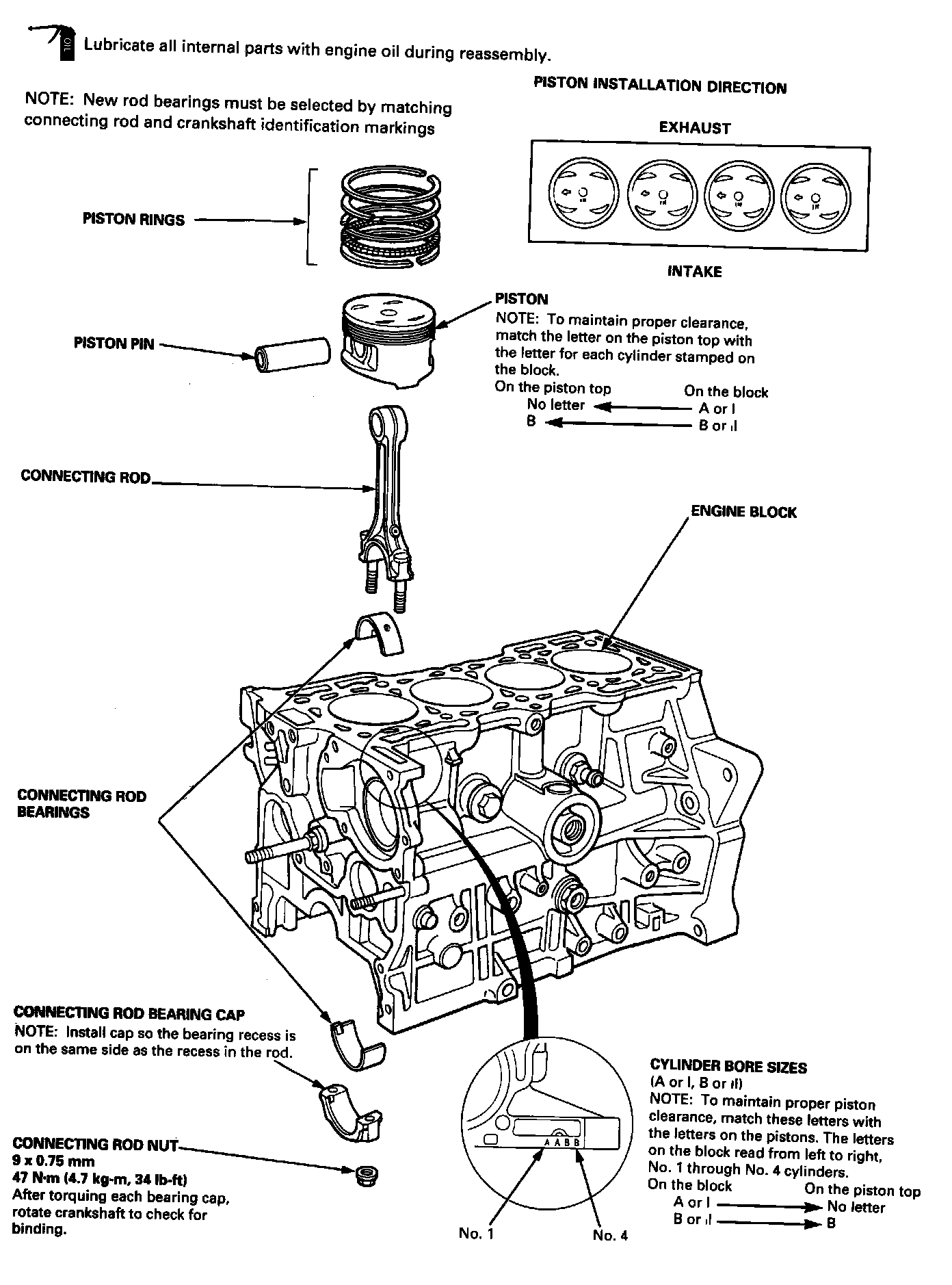

Connecting Rod:
Oil Pan Bolt Torque Sequence:

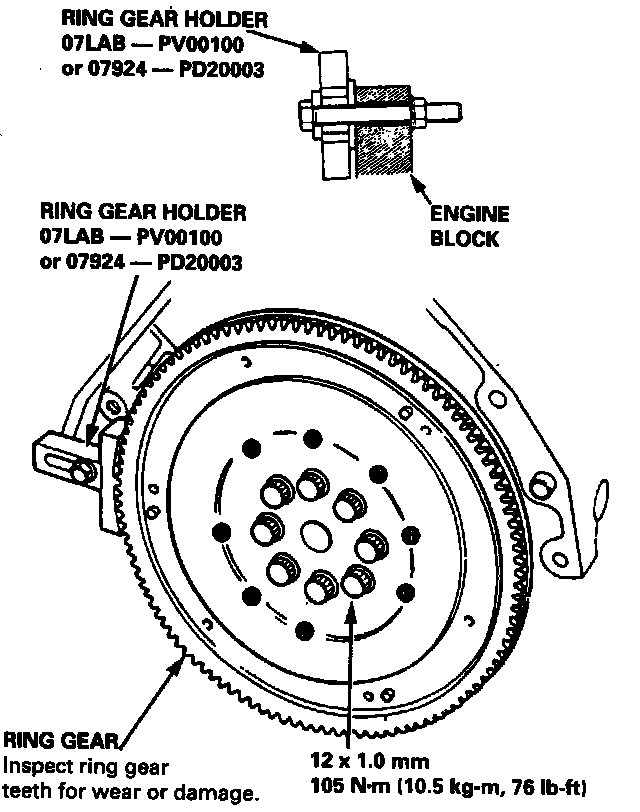

Flywheel (M/T) Torque/Sequence:
Drive Plate (A/T) Torque/Sequence:
