Valve Body Unit: Reassembly

Clean all parts before reassembly. Coat plungers, cut-off valve and reaction control valve with Honda power steering fluid. Replace "O" rings and seals.
Grease cap seal and port seal grooves to hold seals in place during reassembly. Use grease to hold "O" rings in place during reassembly. To complete reassembly, reverse disassembly procedure.

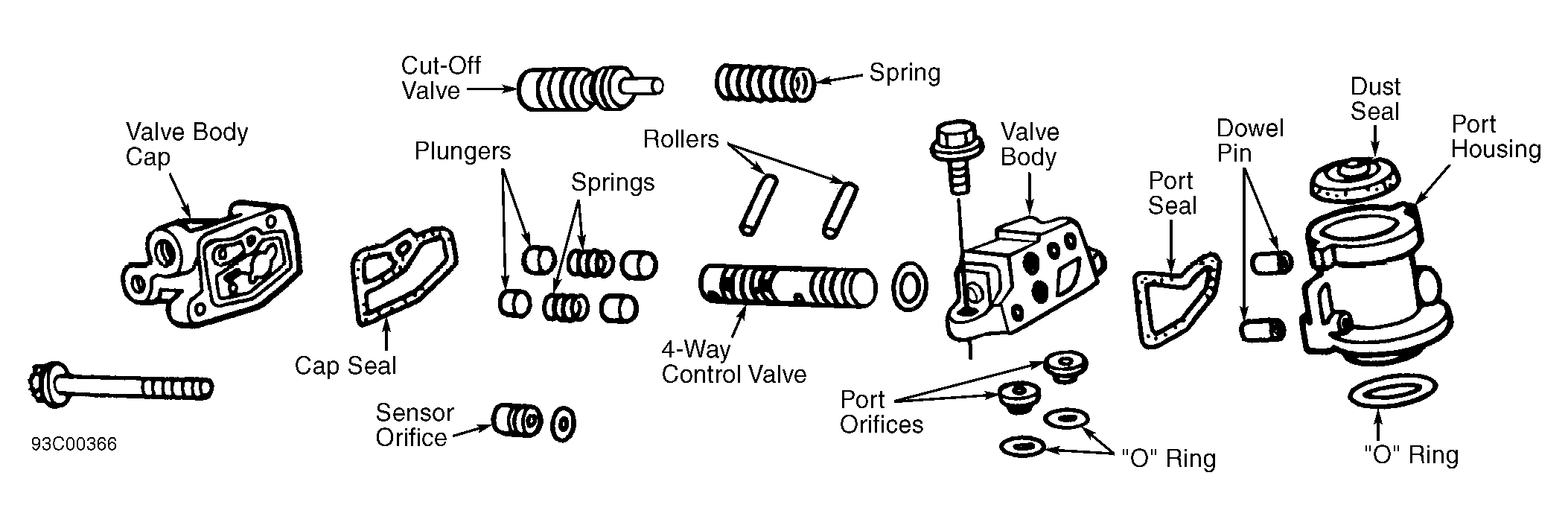

Fig 1: Exploded View Of Valve Body Unit (Accord & Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Exploded View Of Valve Body Unit (Civic)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
