Exhaust Gas Recirculation: Locations

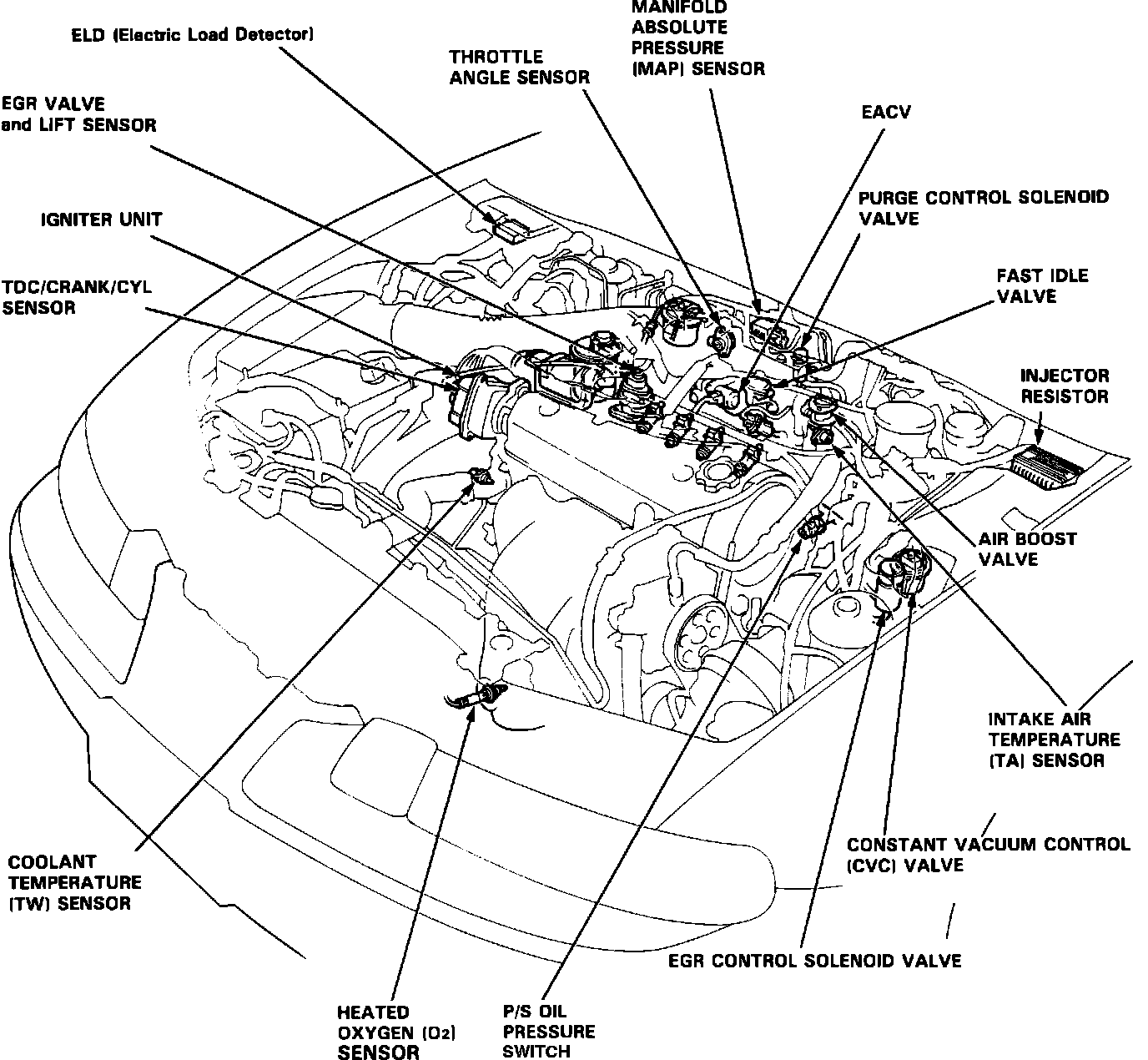

Under Hood Components:






EGR CONTROL SOLENOID VALVE
The EGR control solenoid valve is located behind driver side strut tower.

EGR VALVE AND LIFT SENSOR
The EGR Valve and Valve Lift Sensor is located in the top, right rear area of the engine.
