Knock Sensor: Locations

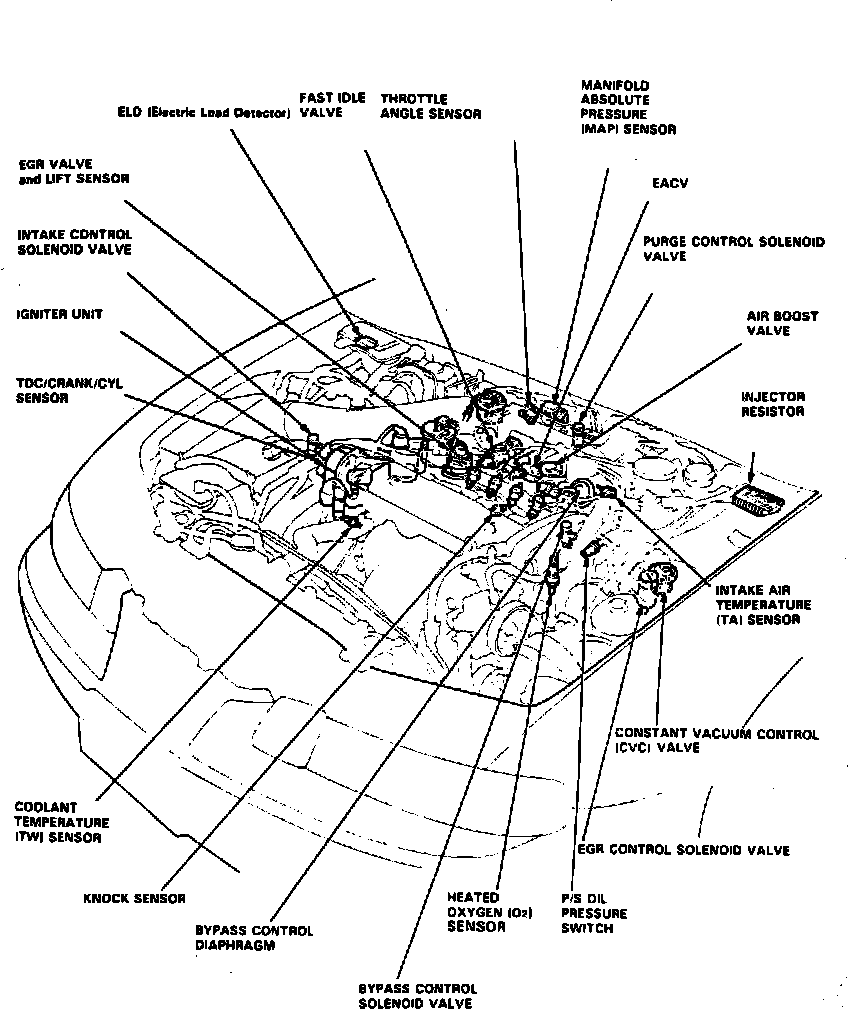

Fuel & Emissions System Components (Part 1 Of 2).:

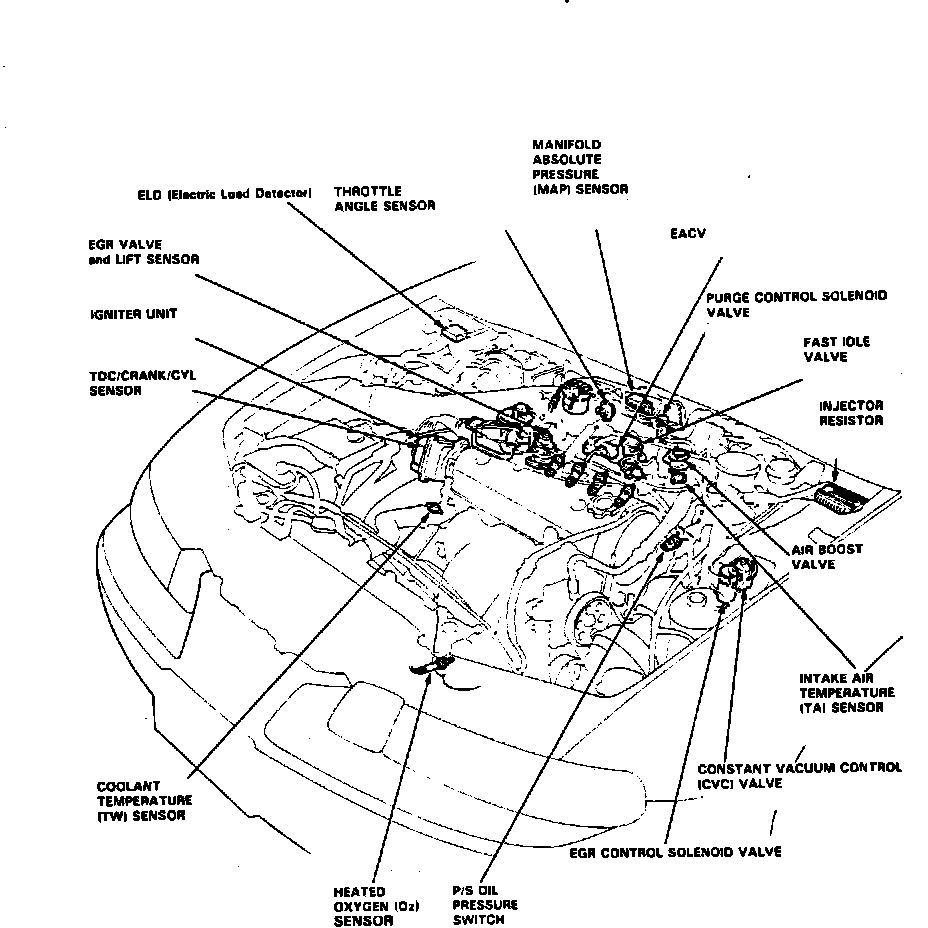

Fuel & Emissions System Components (Part 1 Of 2).:

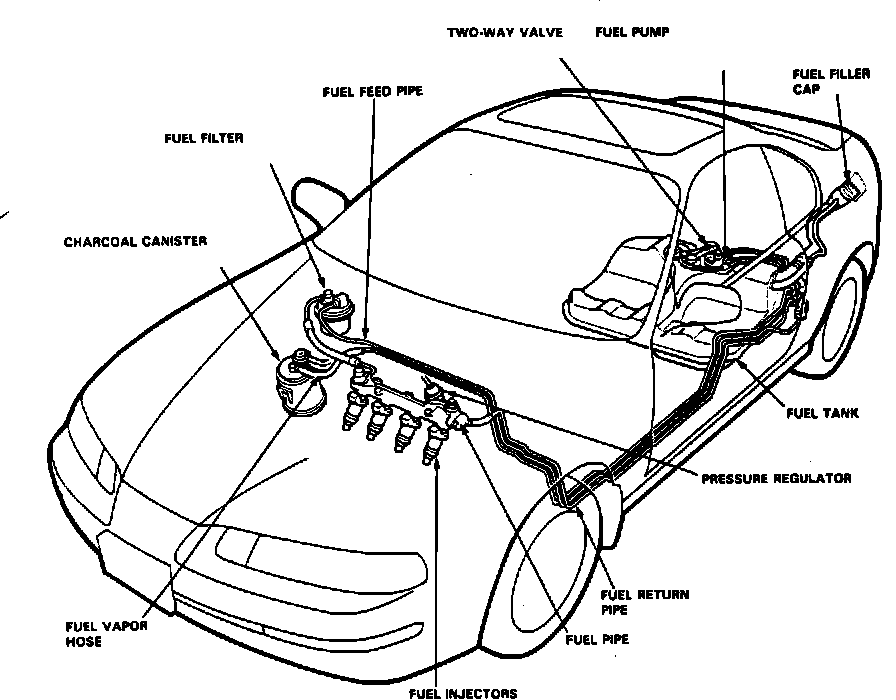

Fuel & Emissions System Components (Part 1 Of 2).:

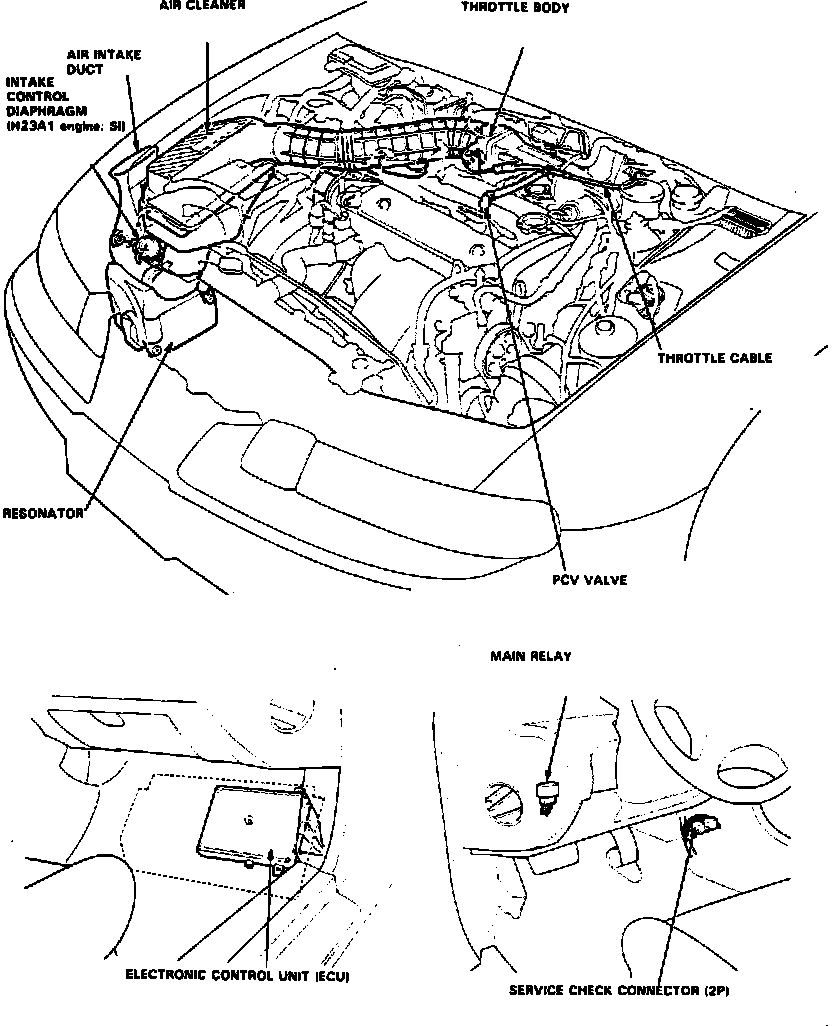

Fuel & Emissions System Components (Part 1 Of 2).:
Top Of Engine
Applicable to: 2.2L/4-132 Engine. 1992
