Code 1-4 Pressure Switch Circuit

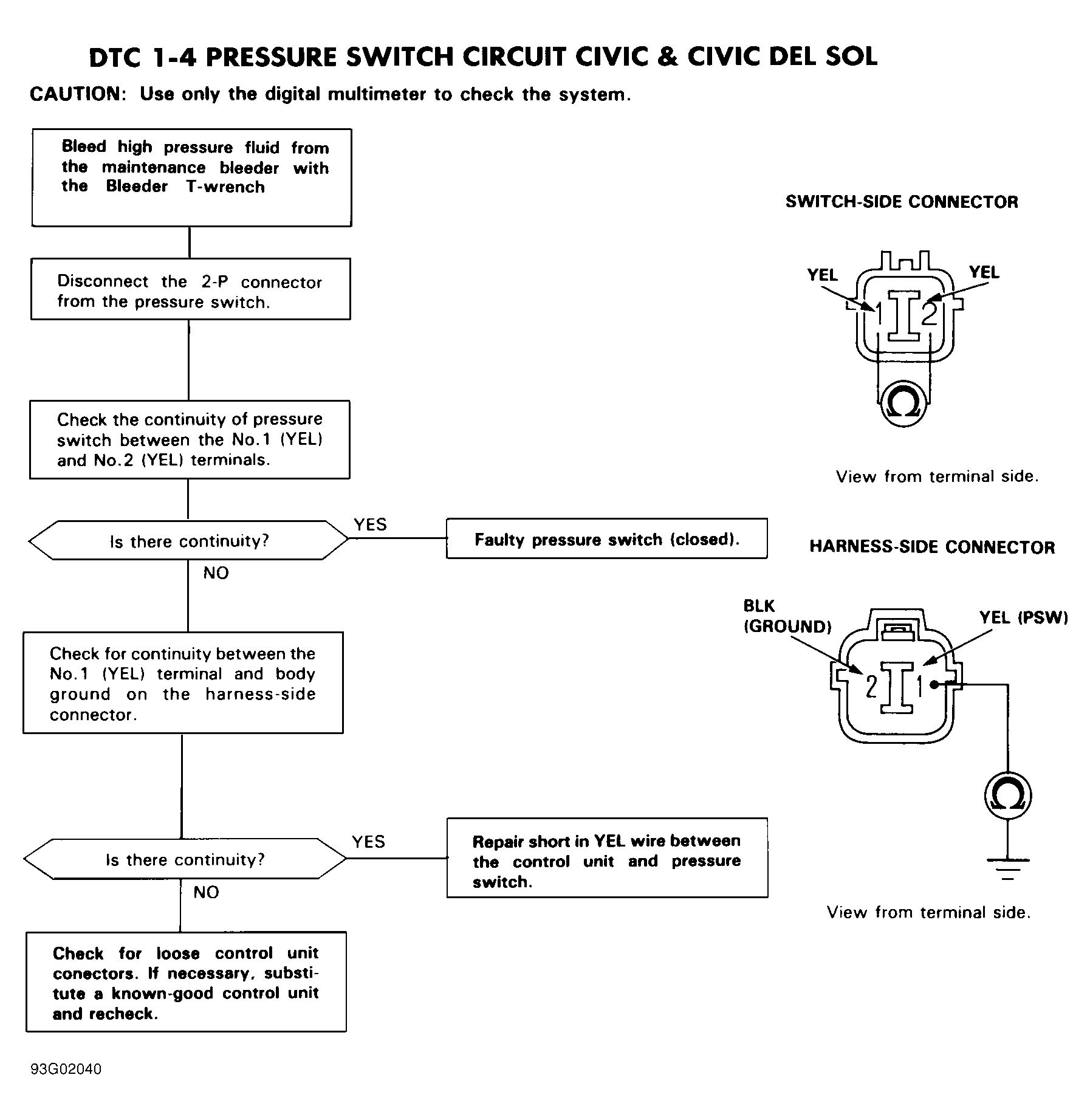

Fig 1: Pressure Switch Circuit Flowchart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: View Of Switch-Side Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: View Of Harness-Side Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
