Codes 4, 8 & 9 - TDC/Crank/CYL Sensor Circuits

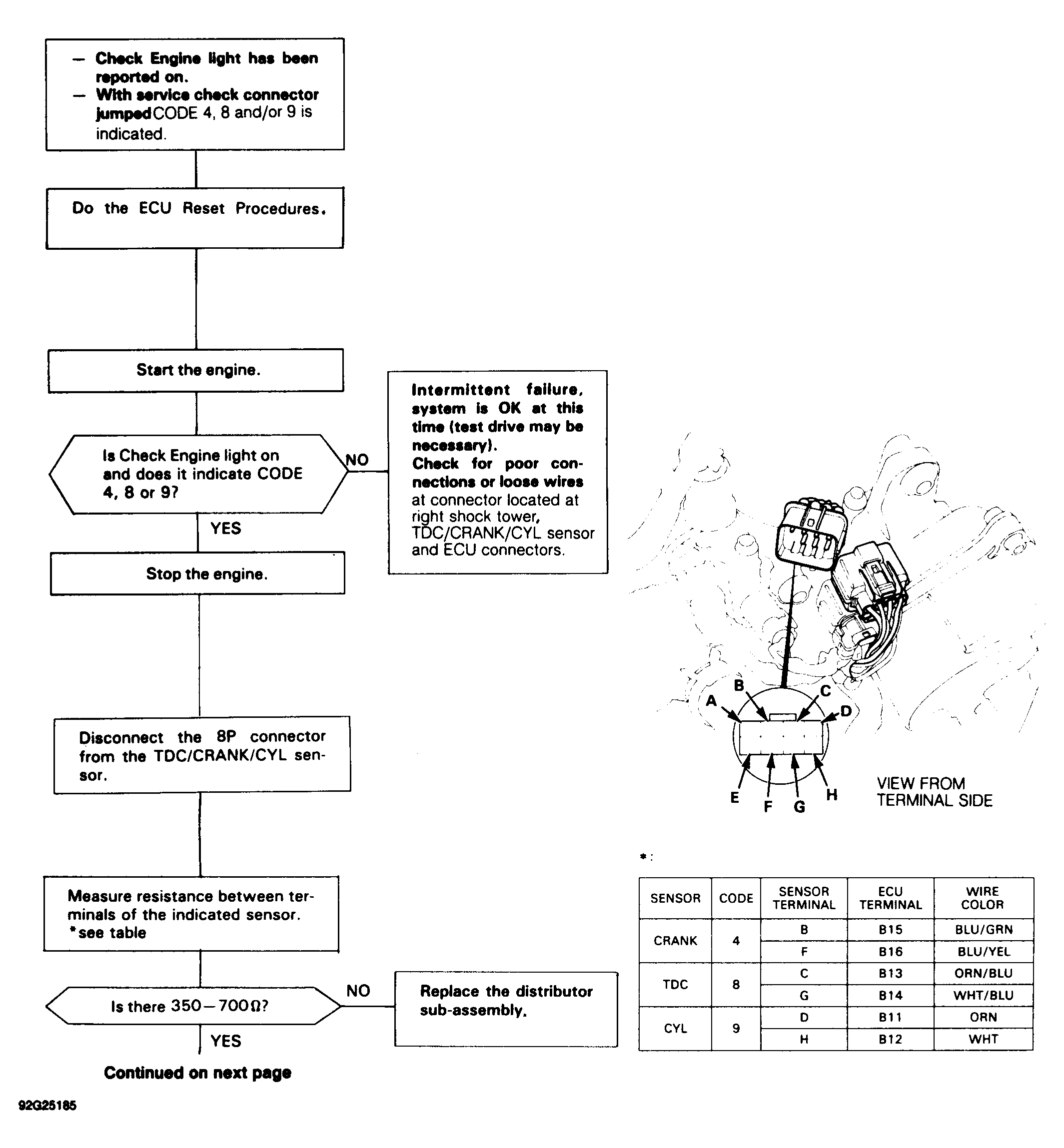

Fig 1: Codes 4, 8 & 9 Chart (1 Of 2) TDC/CRANK/CYL Sensor CKT.
G92G25185
Fig 2: Codes 4, 8 & 9 Chart (1 Of 2) TDC/CRANK/CYL Sensor CKT.
G92H25186
