Steering Column Assembly

See STEERING COLUMN  under REMOVAL & INSTALLATION. Also see Fig 1 .

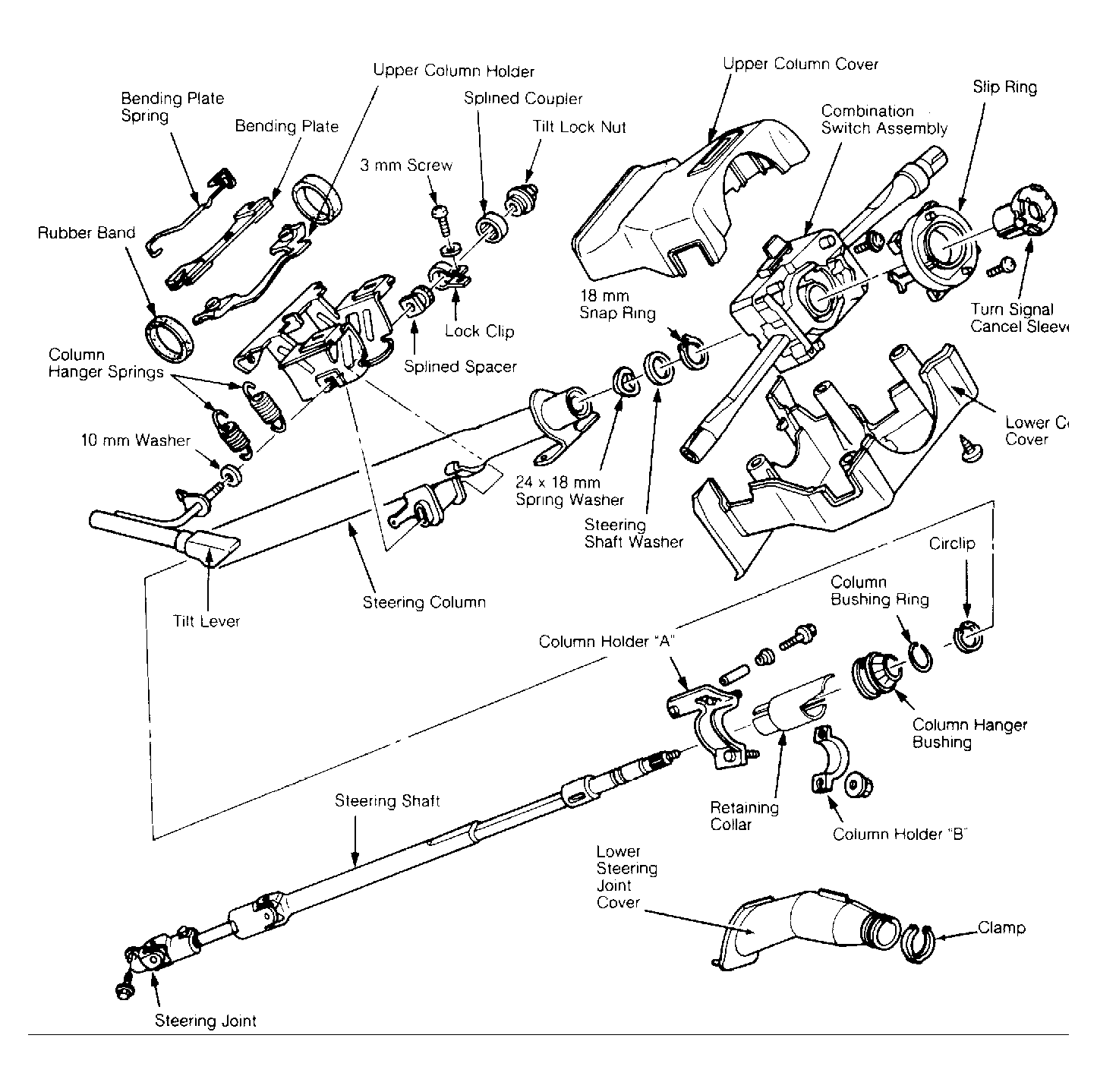

Fig 1: Exploded View of Steering Column Assembly
G90I05964Courtesy of AMERICAN HONDA MOTOR CO.
