Pump Pressure Check

Check fluid level and belt tension. Adjust as necessary. Disconnect outlet hose from pump. Install Pressure Gauge Set (07406-0010200 ). Fully open shut-off and pressure control valves.
Start engine and let idle. Turn steering wheel from lock-to-lock several times until fluid is at operating temperature. Completely close shut-off valve.
CAUTION: Do not keep shut-off valve closed for more than 5 seconds. Pump damage could result.
Gradually close pressure control valve until pressure gauge needle stabilizes. Read pressure. Fully open shut-off valve. Pump pressure should be at least 1138 psi (80 kg/cm² ). Replace pump if pressure is too low.

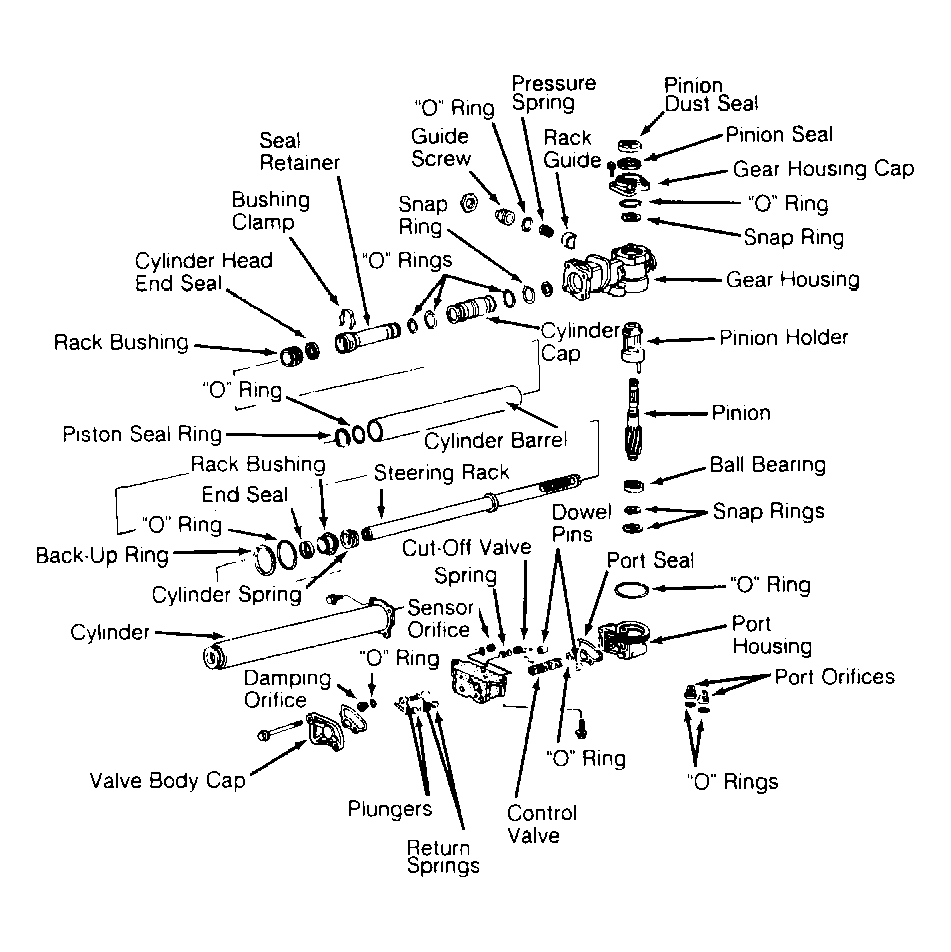

Fig 1: Exploded View of Accord Power Steering Gear

Courtesy of AMERICAN HONDA MOTOR CO., INC.

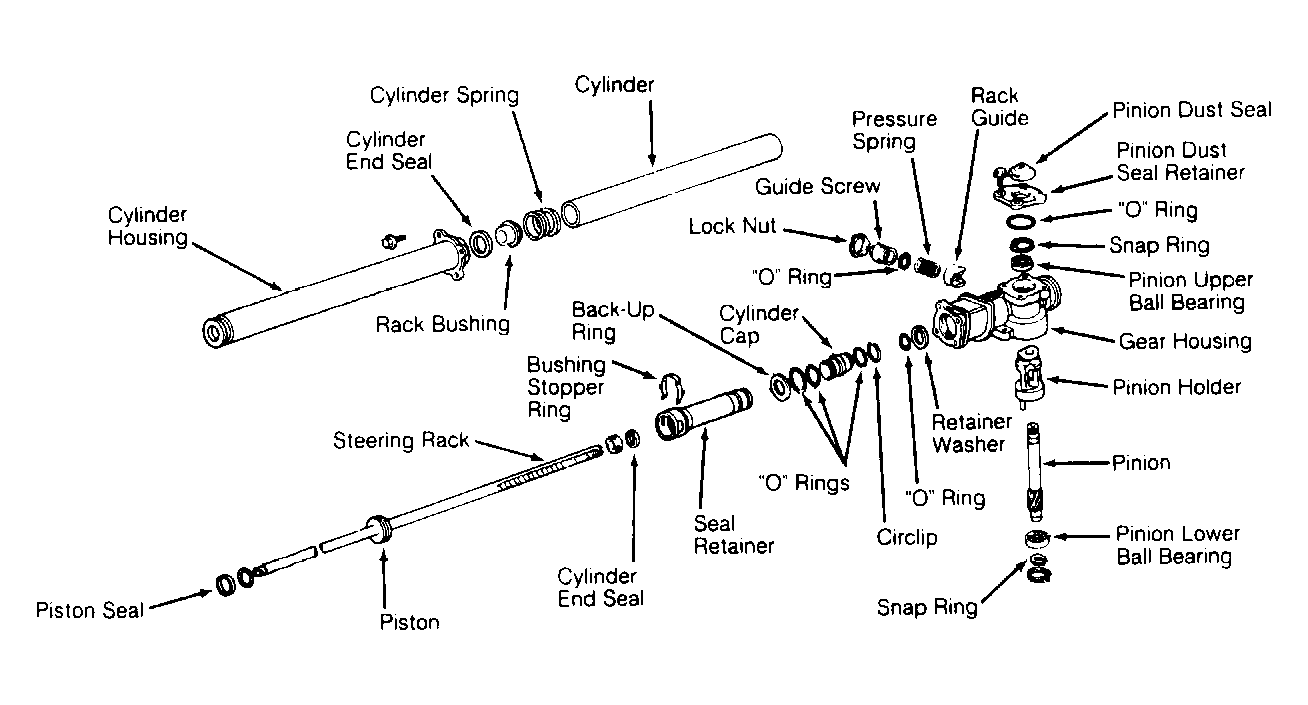

Fig 2: Exploded View of Civic Power Steering Gear

Courtesy of AMERICAN HONDA MOTOR CO., INC.

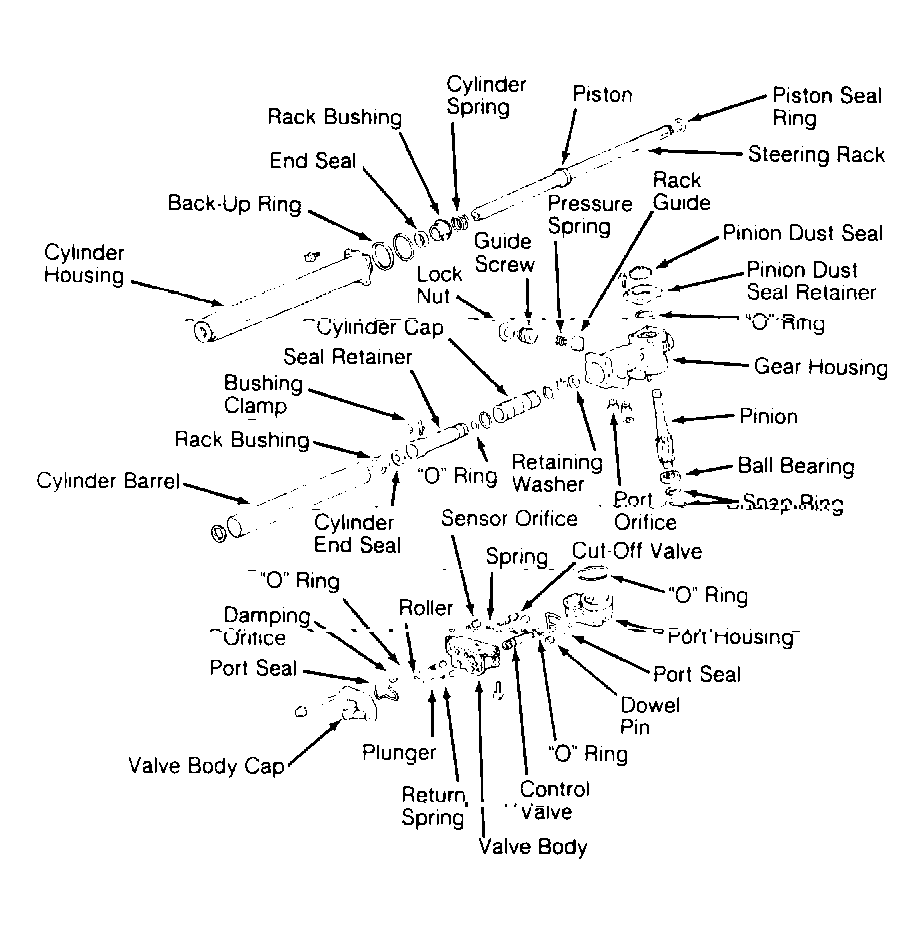

Fig 3: Exploded View of Prelude Power Steering Gear

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: View of Accord & Prelude Speed Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
