W/Carbureted Engine

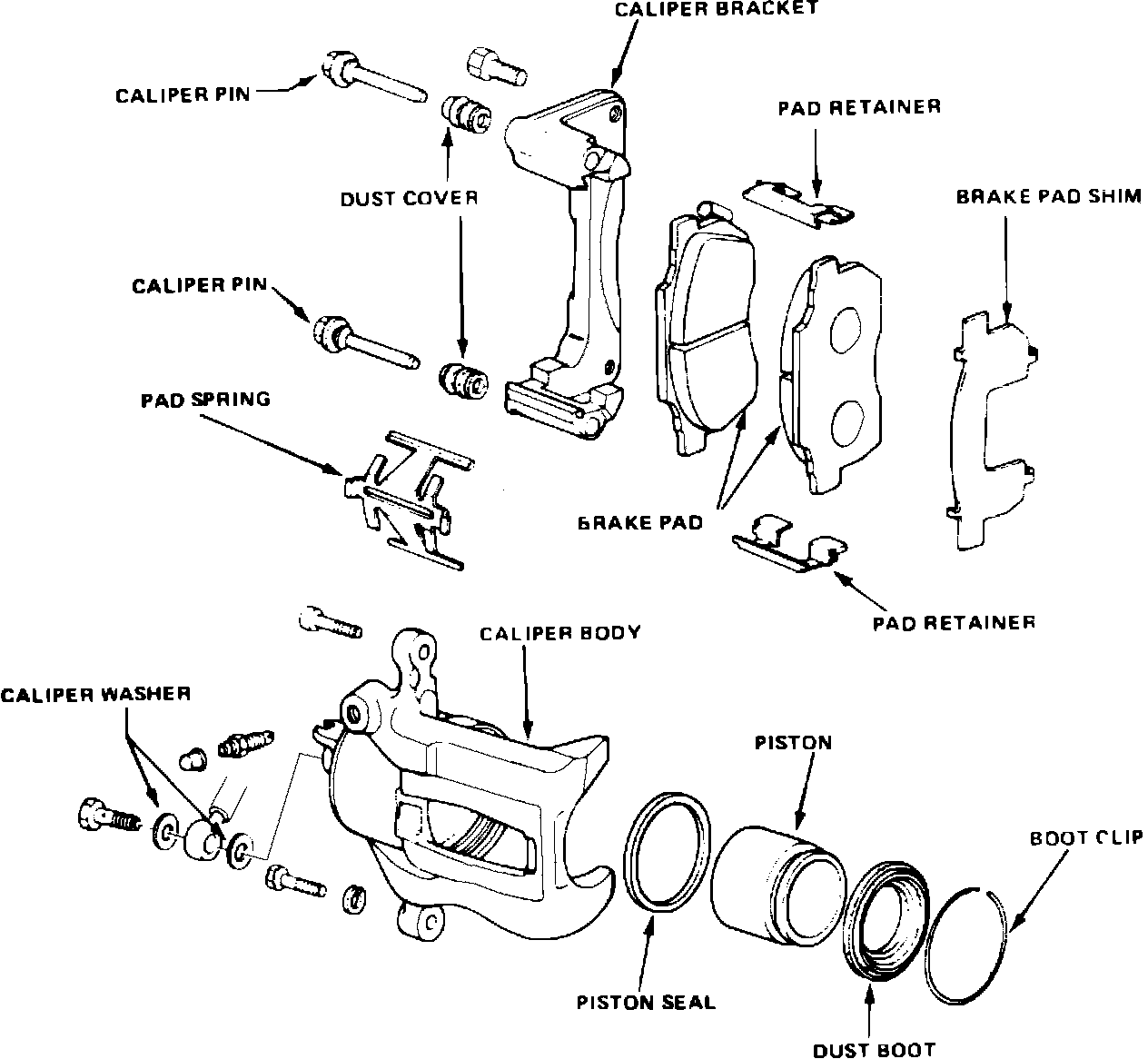

Fig. 8 Front disc brake caliper exploded view. Prelude w/carbureted engine, 1984-87 Civic Wagon & 1985-87 CRX Exc. HF:
