HONDA Vacuum Diagrams

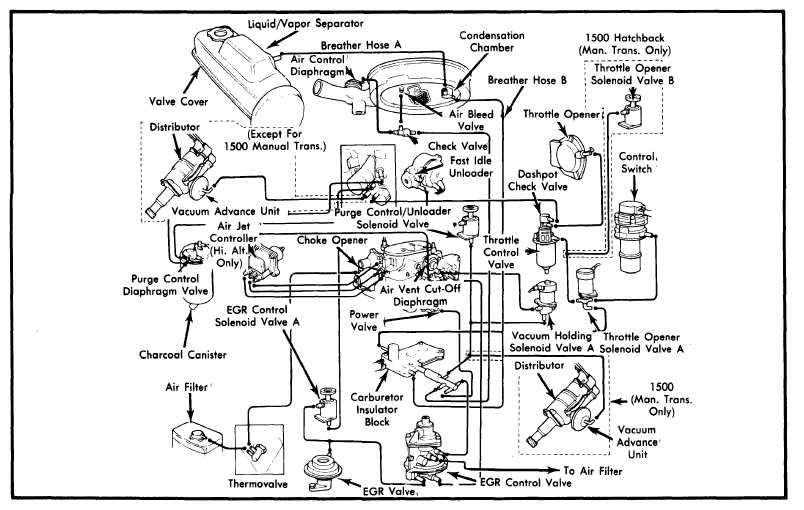

Fig 1: Civic 1300 & 1500 Federal Models

G09313907

Courtesy of AMERICAN HONDA MOTOR CO., INC.

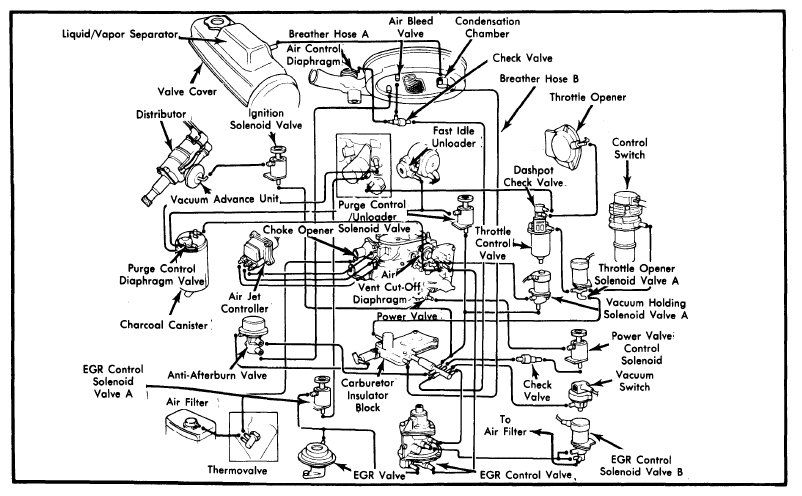

Fig 2: Civic 1300 Calif. Models

G09313908

Courtesy of AMERICAN HONDA MOTOR CO., INC.

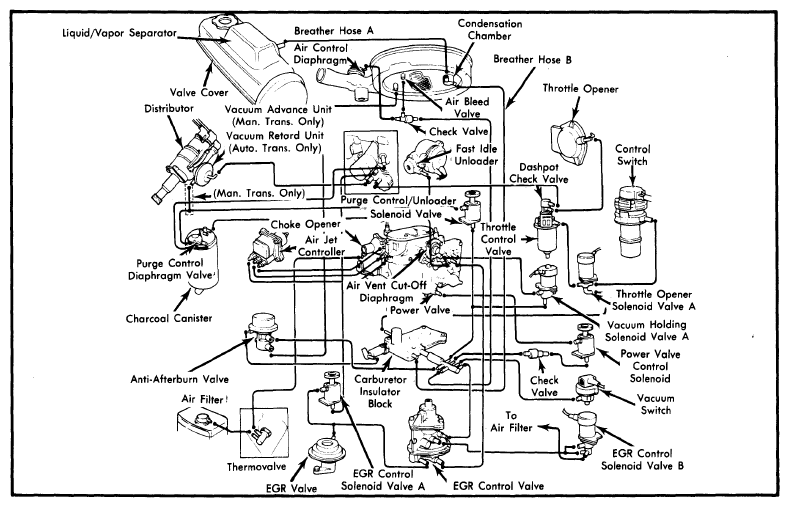

Fig 3: Civic 1500 Calif. Models

G09313909

Courtesy of AMERICAN HONDA MOTOR CO., INC.

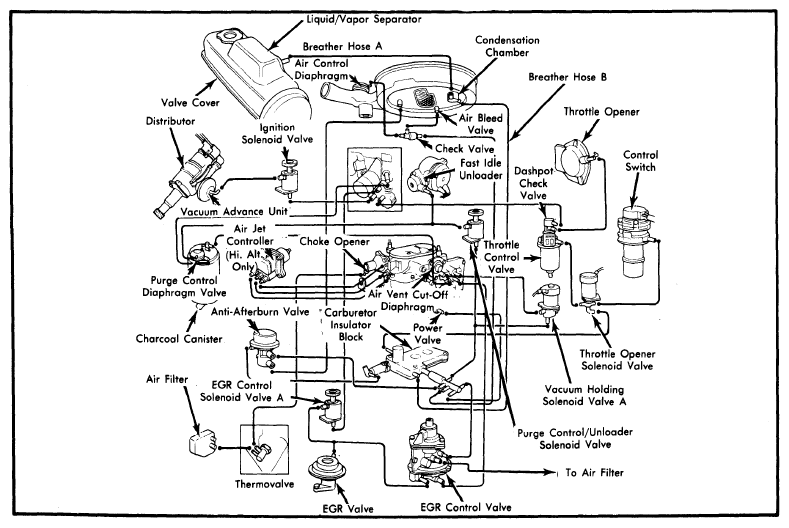

Fig 4: Accord & Prelude Federal Man. Trans.

G09313910

Courtesy of AMERICAN HONDA MOTOR CO., INC.

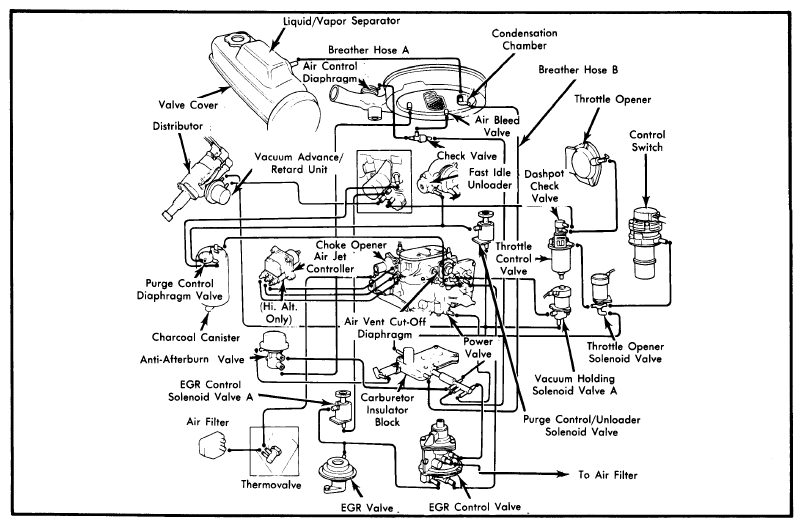

Fig 5: Accord & Prelude Federal Auto. Trans.

G09313911

Courtesy of AMERICAN HONDA MOTOR CO., INC.

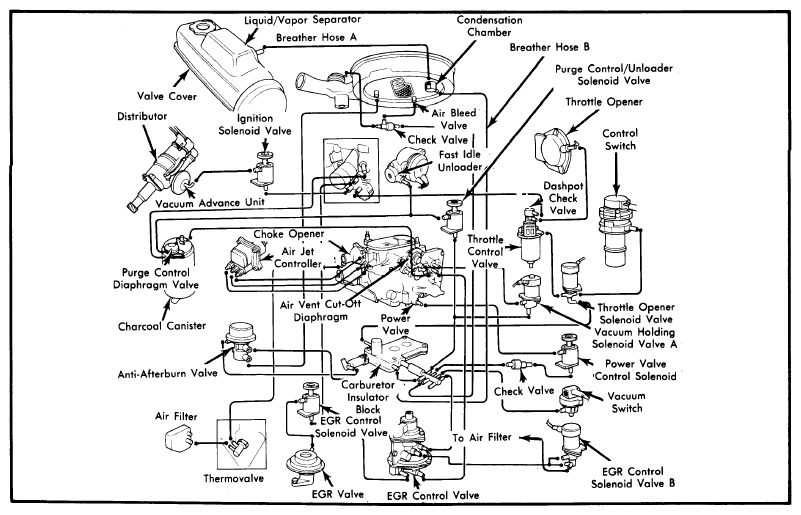

Fig 6: Accord & Prelude Calif. Man. Trans.

G09313912

Courtesy of AMERICAN HONDA MOTOR CO., INC.

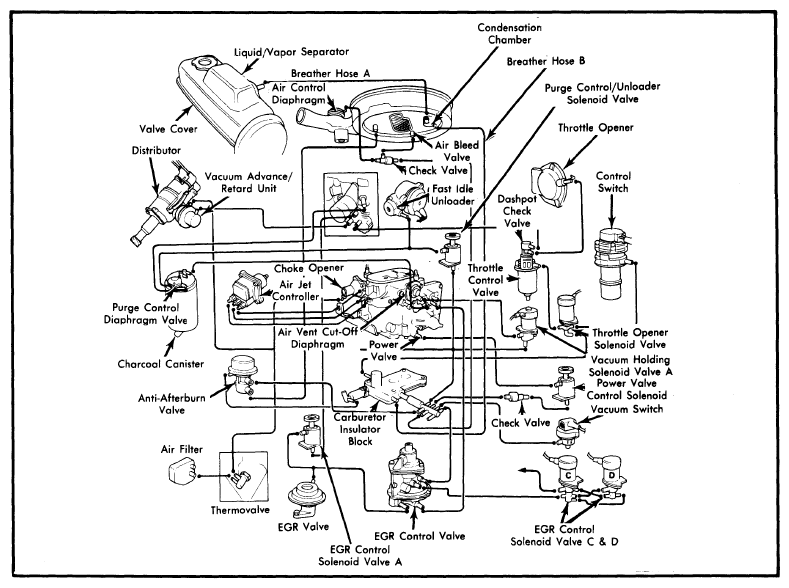

Fig 7: Accord & Prelude Calif. Auto. Trans.

G09313913

Courtesy of AMERICAN HONDA MOTOR CO., INC.
