Fixed Orifice

This unit prevents rapid pressure changes at the diaphragm. It allows smooth operation of the valve door. It also maintains the proper air/fuel ratio.

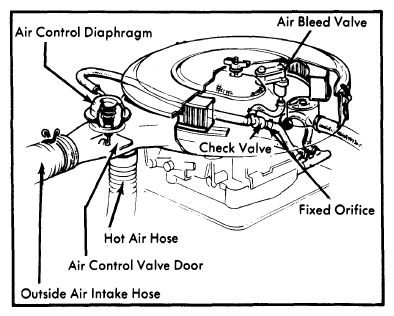

Fig 1: Cutaway View of Air Intake Control System

Courtesy of AMERICAN HONDA MOTOR CO., INC.
