Geo
>>
1997
>>
Tracker 4x2 L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
C3 - PCM Harness Connector
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

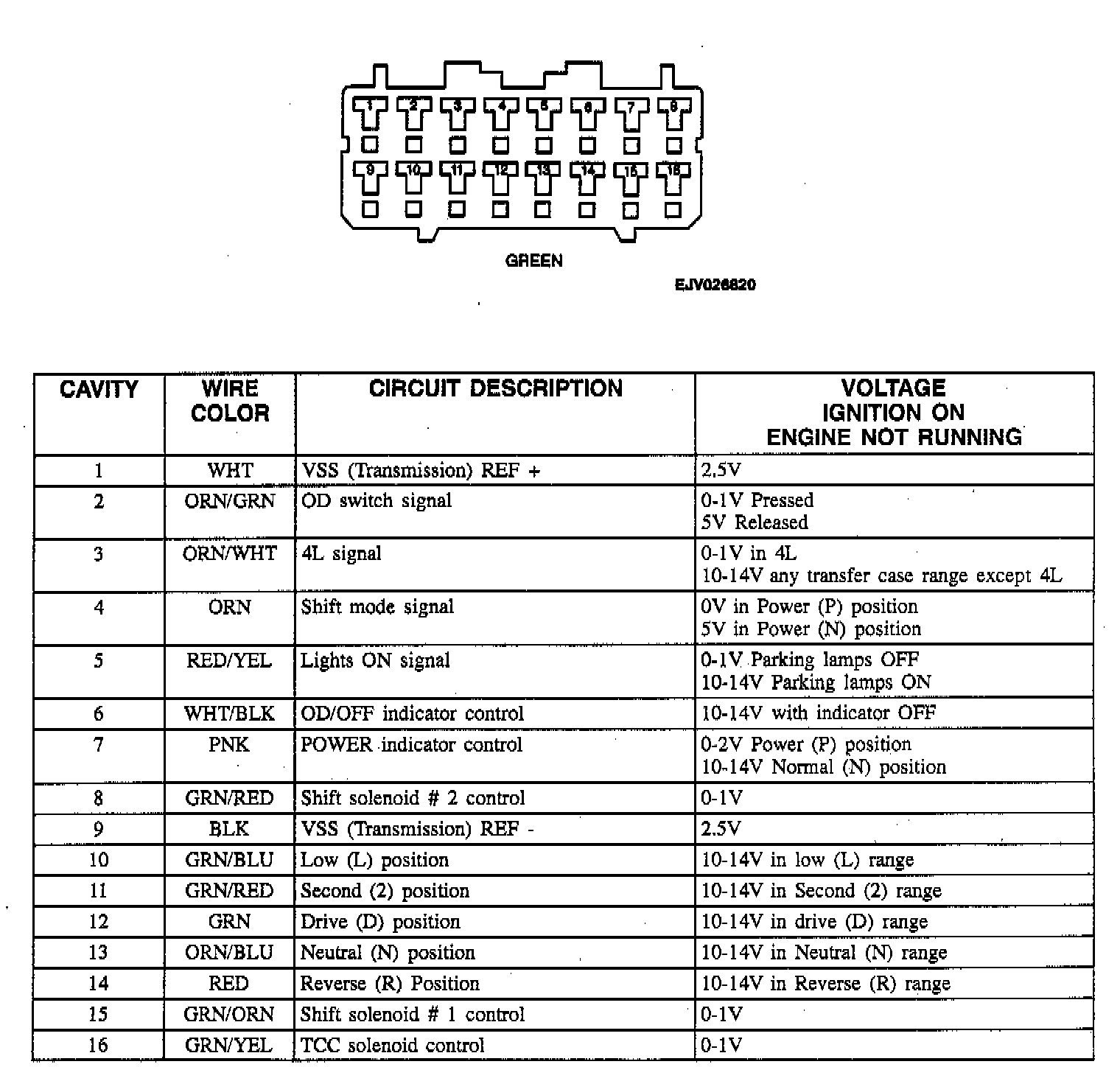

C3 - PCM Harness Connector
Part 1 Of 2:
