Powertrain Control Module (Pcm)

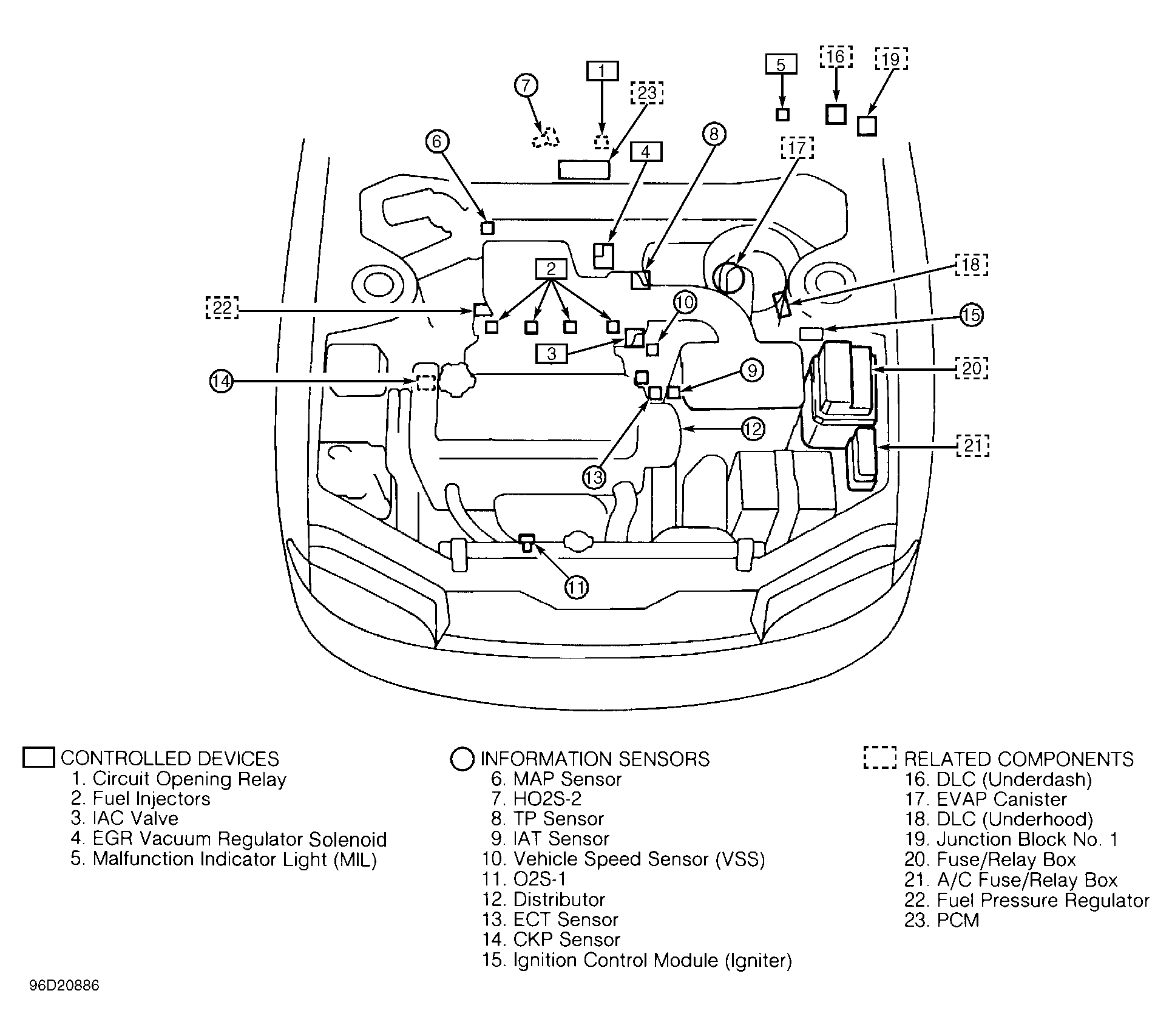

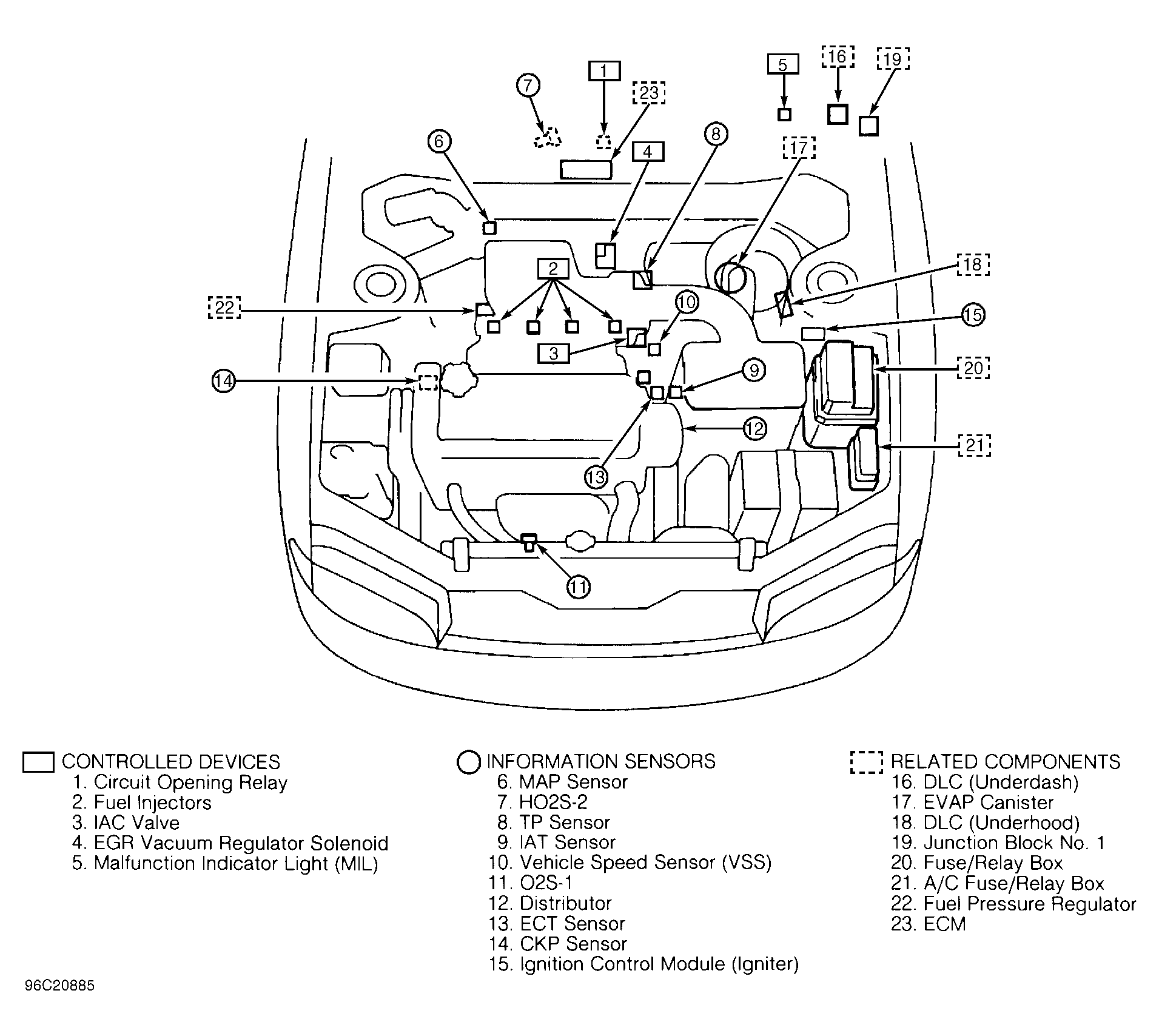

Power for PCM is supplied from 15-amp EFI fuse through EFI relay, located in relay/fuse box. PCM memory power is supplied from 15-amp EFI F-HTR fuse. PCM distributes power and controls ground of various sensors, switches and solenoids for engine control. See Figure or Figure .

NOTE: Components are grouped into 2 categories. First category is INPUT DEVICES, which are components that control or produce voltage signals monitored by PCM. Second category is OUTPUT SIGNALS  , which are components controlled by PCM.
