Connector Identification

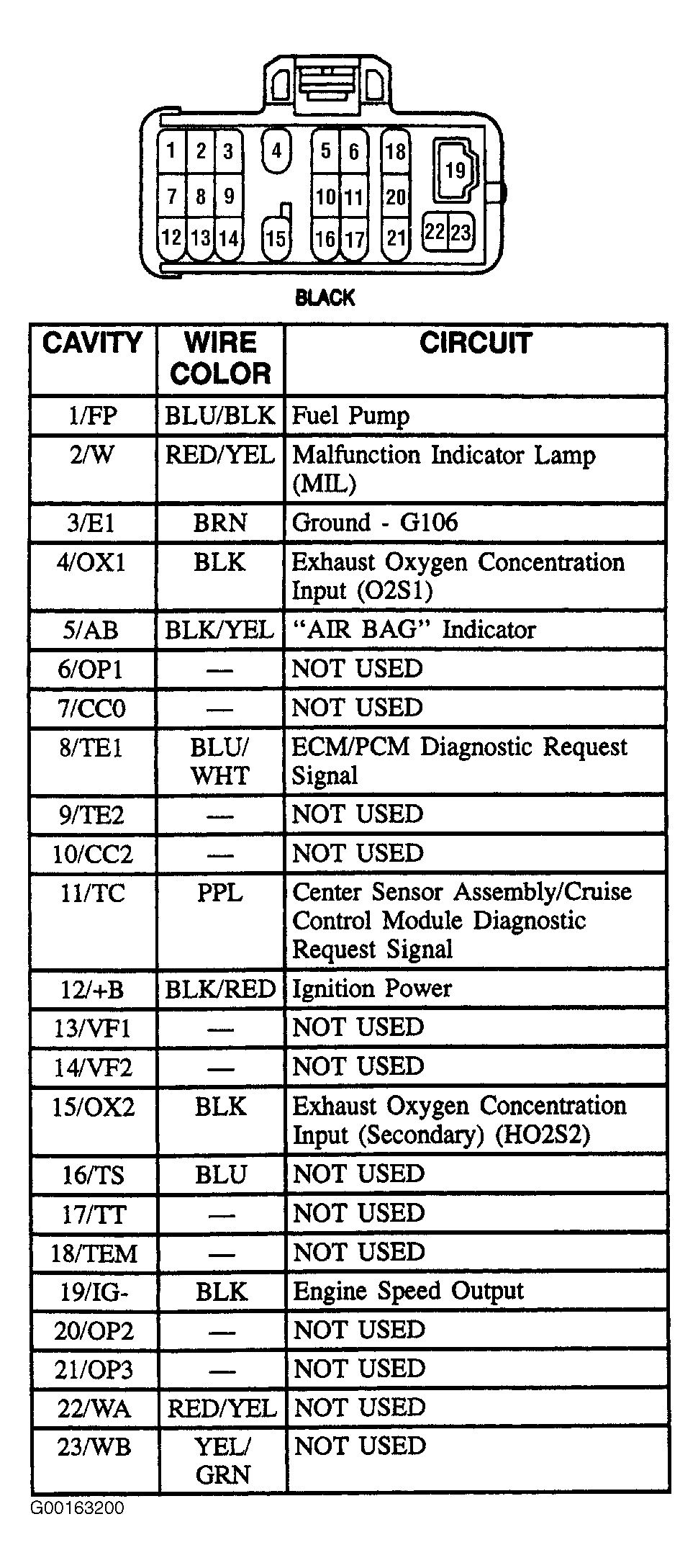

Fig 1: Identifying DLC Terminals
G00163200Courtesy of GENERAL MOTORS CORP.

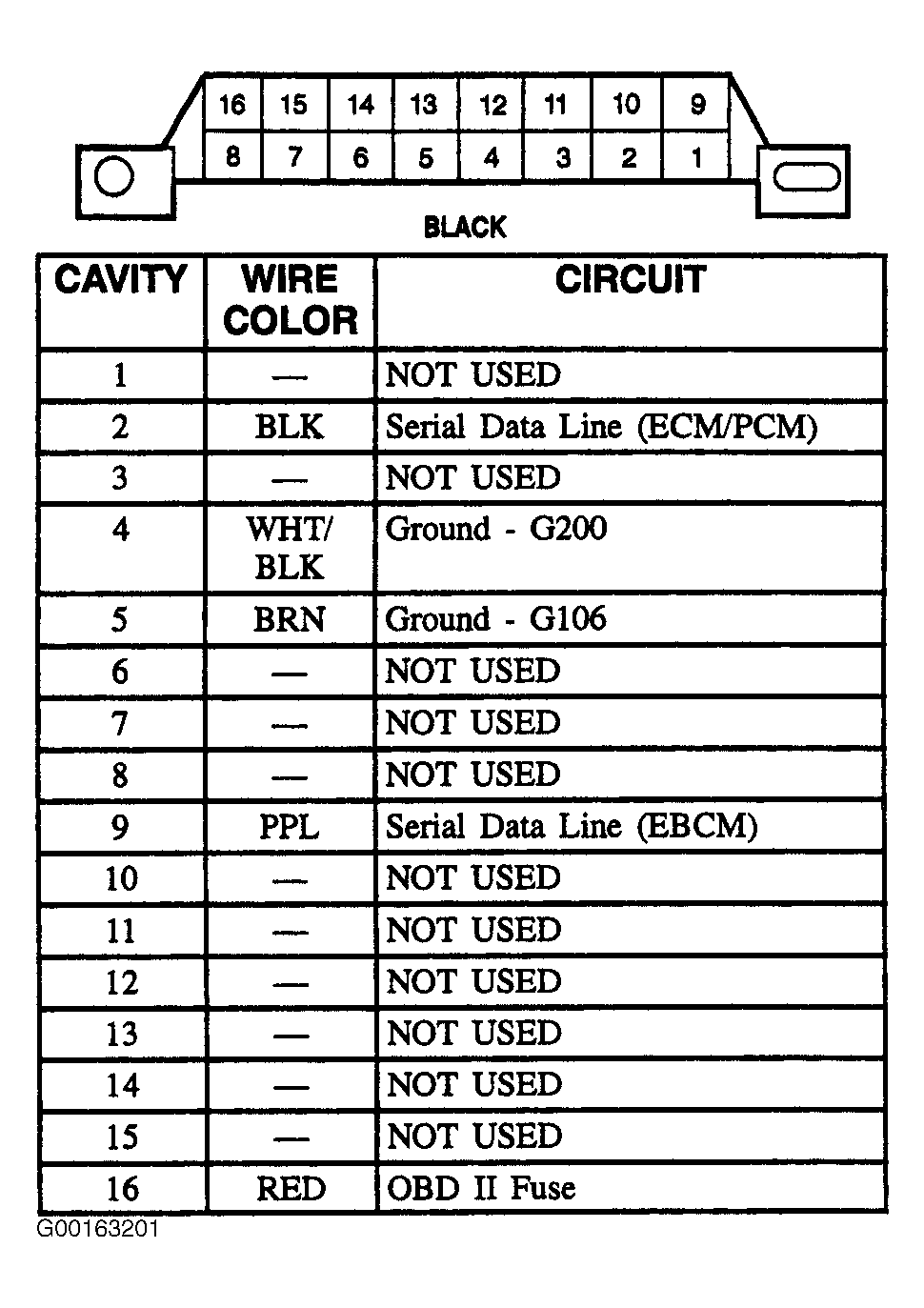

Fig 2: Identifying OBD-II DLC Terminals
G00163201Courtesy of GENERAL MOTORS CORP.
