Ignition Coil: Service and Repair

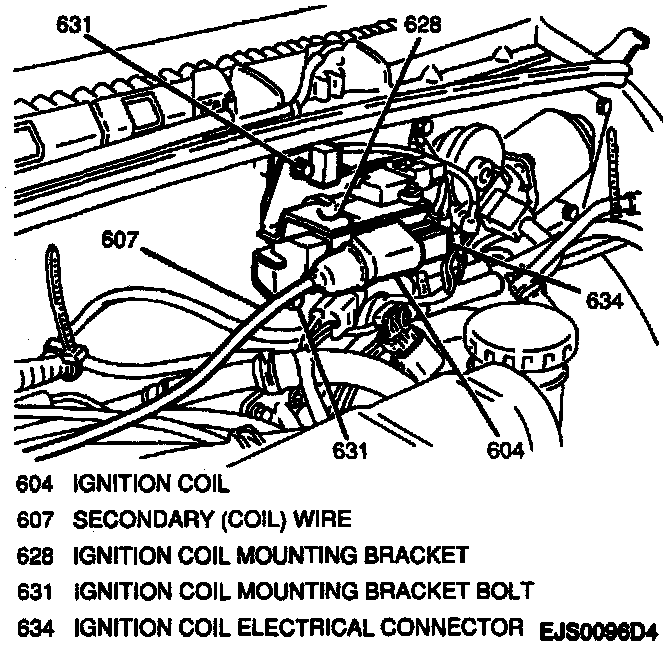

IGNITION COIL REPLACEMENT

REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. Ignition coil electrical connector.
3. Secondary (coil) wire from ignition coil.
4. Two bolts and ignition coil mounting bracket from bulkhead.
5. Two screws and ignition coil from ignition coil mounting bracket.

INSTALL OR CONNECT
1. Ignition coil to ignition coil mounting bracket; secure with two screws.
2. Ignition coil mounting bracket to bulkhead; secure with two bolts. Tighten ignition coil mounting bracket bolts to 20 Nm (15 lb. ft.).
3. Secondary (coil) wire to ignition coil.
4. Ignition coil electrical connector.
5. Negative (-) battery cable. Tighten negative (-) battery cable-to-negative (-) battery terminal retainer to 15 Nm (11 lb. ft.).
