EBCM Connector Terminal Identification
1995 EBCM CONNECTOR TERMINAL IDENTIFICATION
| Terminal No. (Wire Color) |
Circuit |
| Connector C1 |
| 1 (RED/WHT) |
Right Front Motor High |
| 3 (GRN/WHT) |
Stoplight Switch Input |
| 5 (PPL) |
Serial Data Line Information |
| 7 (BLU/WHT) |
Left Front Motor Low |
| 9 (BLU/RED) |
Left Front Motor High |
| 10 (RED) |
Left Front Wheel Signal Input |
| 11 (BLK) |
Right Front Wheel Signal Input |
| 12 (WHT) |
Right Front Wheel Signal Input |
| 13 (YEL) |
Right Rear Wheel Signal Input |
| 14 (BRN) |
Right Rear Wheel Signal Input |
| 16 (GRN/YEL) |
Rear Motor Low |
| 17 (RED/GRN) |
Right Front Motor Low |
| 20 (GRN/RED) |
"ABS ACTIVE" Indicator Control |
| 21 (RED/YEL) |
"ABS" Indicator Control |
| 22 (BLU/BLK) |
ABS Enable Relay Control |
| 23 (RED/BLK) |
"BRAKE" Indicator Control |
| 24 (BLU/YEL) |
B+ Feed |
| 25 (GRY) |
Switched Ignition |
| 26 (GRN) |
Left Front Wheel Signal Input |
| 27 (BLU) |
Left Rear Wheel Signal Input |
| 28 (PPL) |
Left Rear Wheel Signal Input |
| 29 (BRN/WHT) |
Right Front ABS Solenoid |
| 30 (BRN/RED) |
Left Front ABS Solenoid |
| 32 (GRN/BLK) |
Rear Motor High |
| Connector C2 |
| 1 (BLU/ORG) |
Switched Battery Input |
| 2 (WHT/BLK) |
Ground - G103 |

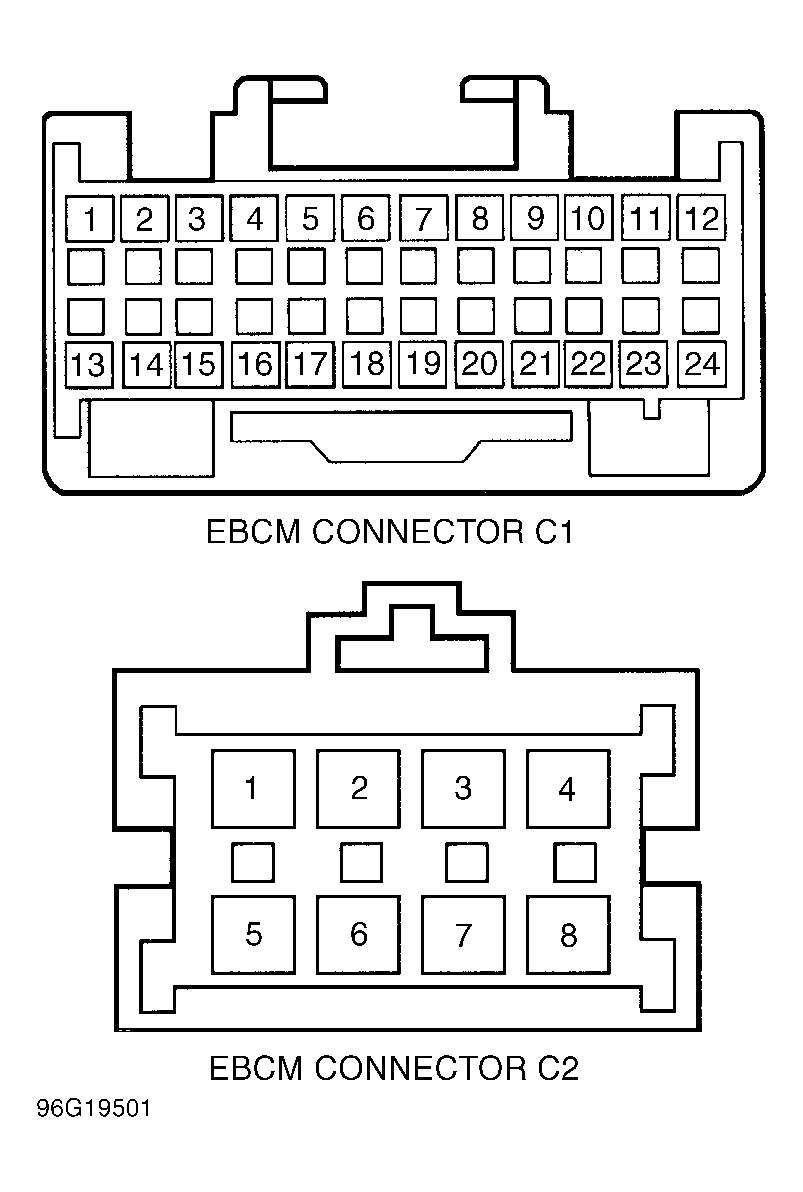

1996 EBCM CONNECTOR TERMINAL IDENTIFICATION
| Terminal No. (Wire Color) |
Circuit |
| Connector C1 |
| 1 (PPL) |
Serial Data Line Information |
| 2 (YEL) |
Right Rear Wheel Signal Input |
| 3 (BLU) |
Left Rear Wheel Signal Input |
| 4 (BLK) |
Right Front Wheel Signal Input |
| 5 (RED) |
Left Front Wheel Signal Input |
| 6 (GRN/RED) |
"ABS ACTIVE" Indicator Control |
| 7 (RED/YEL) |
"ABS" Indicator Control |
| 9 (GRY) |
Switched Ignition |
| 10 (BRN/RED) |
Left Front ABS Solenoid |
| 11 (BLU/BLK) |
ABS Enable Relay Control |
| 13 (BRN) |
Right Rear Wheel Signal Input |
| 14 (PPL) |
Left Rear Wheel Signal Input |
| 15 (WHT) |
Right Front Wheel Signal Input |
| 16 (GRN) |
Left Front Wheel Signal Input |
| 17 (RED/BLK) |
"BRAKE" Indicator Control |
| 18 (BRN/WHT) |
Right Front ABS Solenoid |
| 21 (GRN/WHT) |
Stoplight Switch Input |
| 24 (BLU/YEL) |
B+ Feed |
| Connector C2 |
| 1 (BLU/WHT) |
Left Front Motor Low |
| 2 (BLU/RED) |
Left Front Motor High |
| 3 (GRN/BLK) |
Rear Motor High |
| 4 (GRN/YEL) |
Rear Motor Low |
| 5 (RED/WHT) |
Right Front Motor High |
| 6 (RED/GRN) |
Right Front Motor Low |
| 7 (BLU/ORG) |
Switched Battery Input |
| 8 (WHT/BLK) |
Ground - G103 |
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP. ABS CONNECTOR LOCATION
| Connector |
Pins (Color)/Location |
| C201 |
12 (BLU)/Behind Left Kick Panel At Junction Block No. 1 |
| C203 |
4 (WHT)/Behind Left Instrument Panel Above Brake Pedal |
| C206 |
18 (BLU)/Behind Right Kick Panel |
| C212 |
| 1995 |
18 (WHT)/Behind Left Kick Panel |
| 1996 |
18 (DK GRY)/Behind Left Kick Panel |
| C217 |
3 (N/A)/Behind Instrument Panel Left Of Steering Column |
NOTE:
1995 models use a 32-pin (C1) and a 2-pin (C2) EBCM connector. 1996 models use a 24-pin (C1) and a 8-pin (C2) EBCM connector. See Fig 1
and Fig 2
.
Wire colors and circuit numbers are identical, however terminal numbers are different. All DTC chart testing and mini-schematics, except DTC A032, A033, A034 and A035 use 1995 EBCM terminal numbers. For 1996 model terminal numbers, refer to EBCM CONNECTOR TERMINAL CROSS-REFERENCE
table. DTC A032, A033, A034 and A035 apply to 1996 models only. EBCM CONNECTOR TERMINAL CROSS-REFERENCE
| Connector & Terminal No. (1995) |
Wire Color |
Circuit No. |
Connector & Terminal No. (1996) |
| C1-1 |
RED/WHT |
1282 |
C2-5 |
| C1-3 |
GRN/WHT |
20G |
C1-21 |
| C1-5 |
PPL |
461A |
C1-1 |
| C1-7 |
BLU/WHT |
1281 |
C2-1 |
| C1-9 |
BLU/RED |
1280 |
C2-2 |
| C1-10 |
RED |
873 |
C1-5 |
| C1-11 |
BLK |
833 |
C1-4 |
| C1-12 |
WHT |
872 |
C1-15 |
| C1-13 |
YEL |
882A |
C1-2 |
| C1-14 |
BRN |
883A |
C1-13 |
| C1-16 |
GRN/YEL |
1285 |
C2-4 |
| C1-17 |
RED/GRN |
1283 |
C2-6 |
| C1-20 |
GRN/RED |
34A |
C1-6 |
| C1-21 |
RED/YEL |
852A |
C1-7 |
| C1-22 |
BLU/BLK |
879 |
C1-11 |
| C1-23 |
RED/BLK |
33A |
C1-17 |
| C1-24 |
BLU/YEL |
140 |
C1-24 |
| C1-25 |
GRY |
350A |
C1-9 |
| C1-26 |
GRN |
830 |
C1-16 |
| C1-27 |
BLU |
884A |
C1-3 |
| C1-28 |
PPL |
885A |
C1-14 |
| C1-29 |
BRN/WHT |
1289 |
C1-18 |
| C1-30 |
BRN/RED |
1288 |
C1-10 |
| C1-32 |
GRN/BLK |
1284 |
C2-3 |
| C2-1 |
BLU/ORG |
850 |
C2-7 |
| C2-2 |
WHT/BLK |
150A |
C2-8 |
