Chart E, Abs Active Indicator Malfunctioning

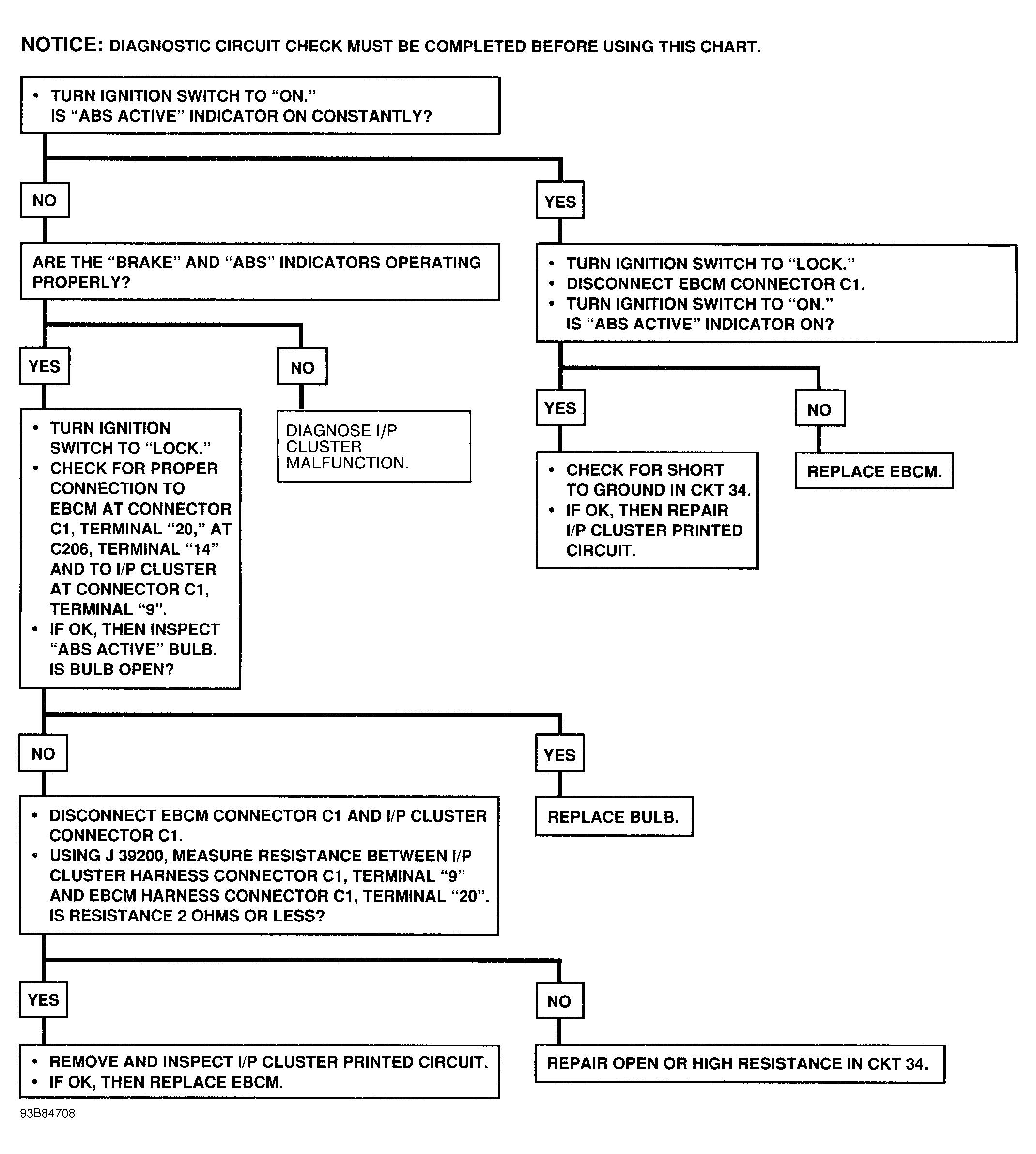

Fig 1: Chart E Flow Chart, ABS Active Indicator Malfunctioning
Courtesy of GENERAL MOTORS CORP.
