Chart #4 Right Window Does Not Open With Either Right Window Switch Depressed

If right window does not open with either right window switch depressed, see Fig 1 .

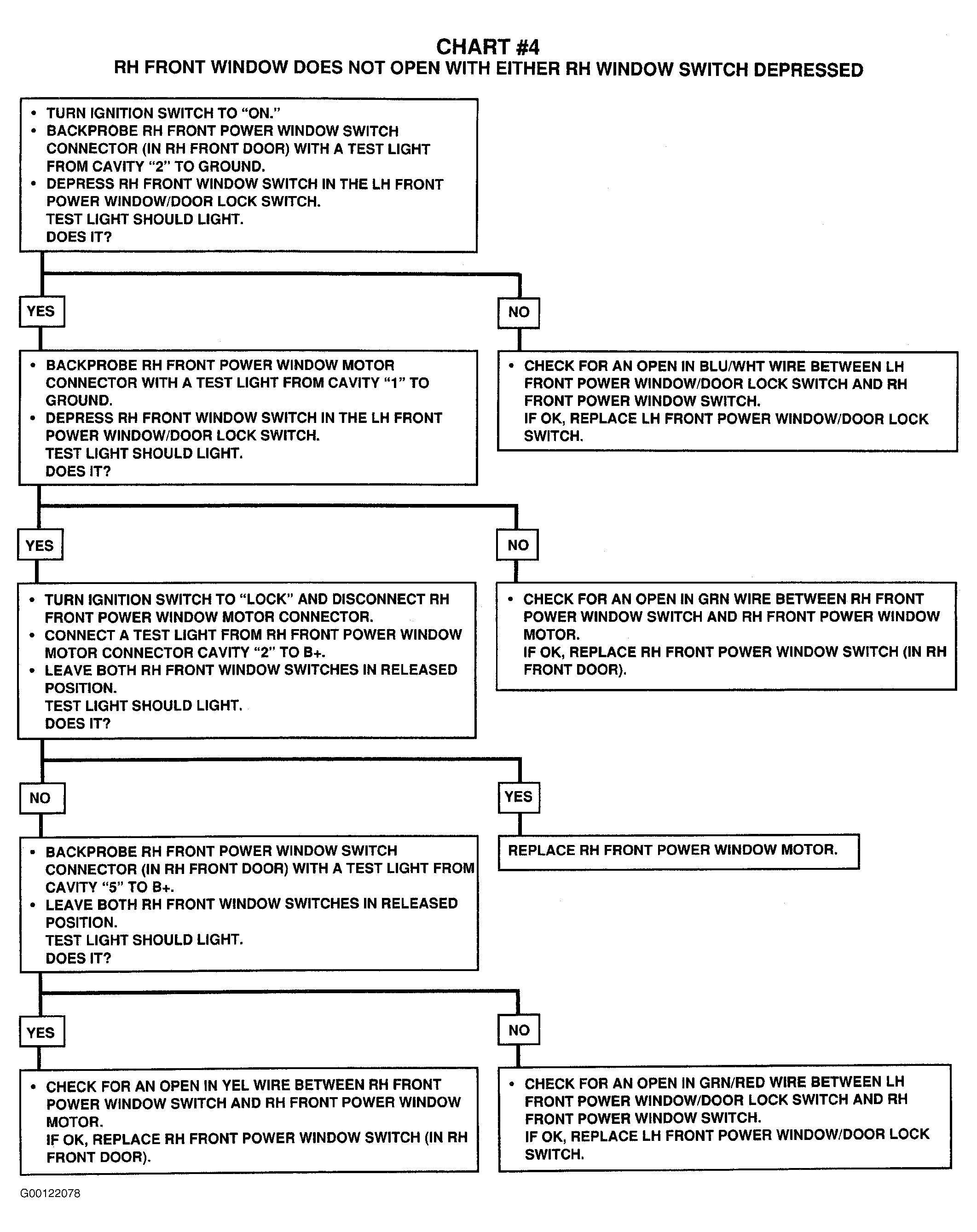

Fig 1: Chart #4: Right Window Does Not Open With Either Right Window Switch Depressed
G00122078Courtesy of GENERAL MOTORS CORP.
