Control Module, A/T
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Control Module, A/T
Automatic Transaxle Control Module:

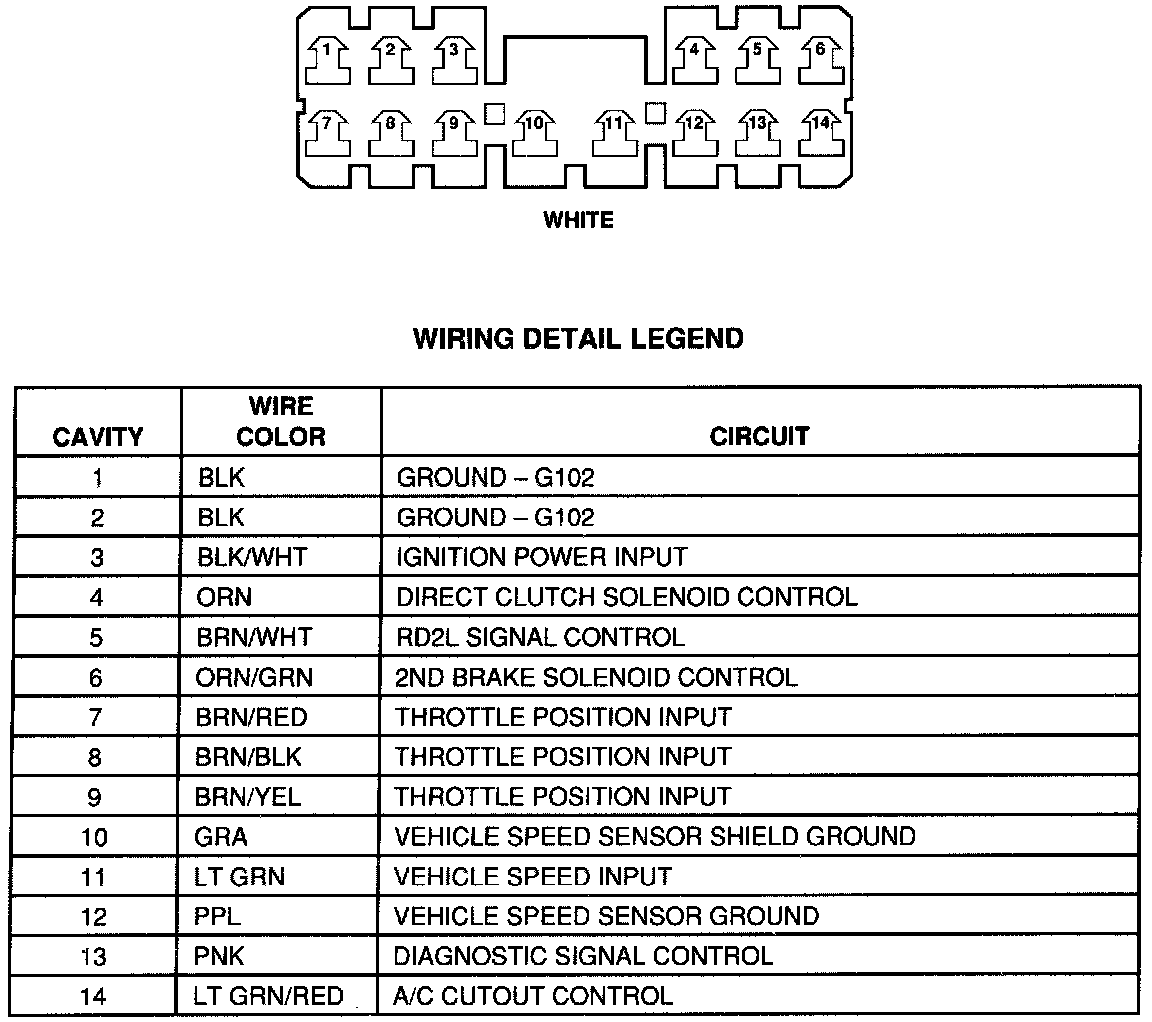

Transaxle Control Module (TCM) Connector 2:
