Code 71, EGR Gas Temp Sensor CKT (CALIFORNIA Only)

Code 71 indicates that EGR gas temperature sensor has signaled the ECM of a temperature greater than, or less than, the calibrated range.

1. ECM should provide 4-5 volts to the EGR gas temperature sensor.
2. ECM provides ground for the EGR gas temperature sensor.

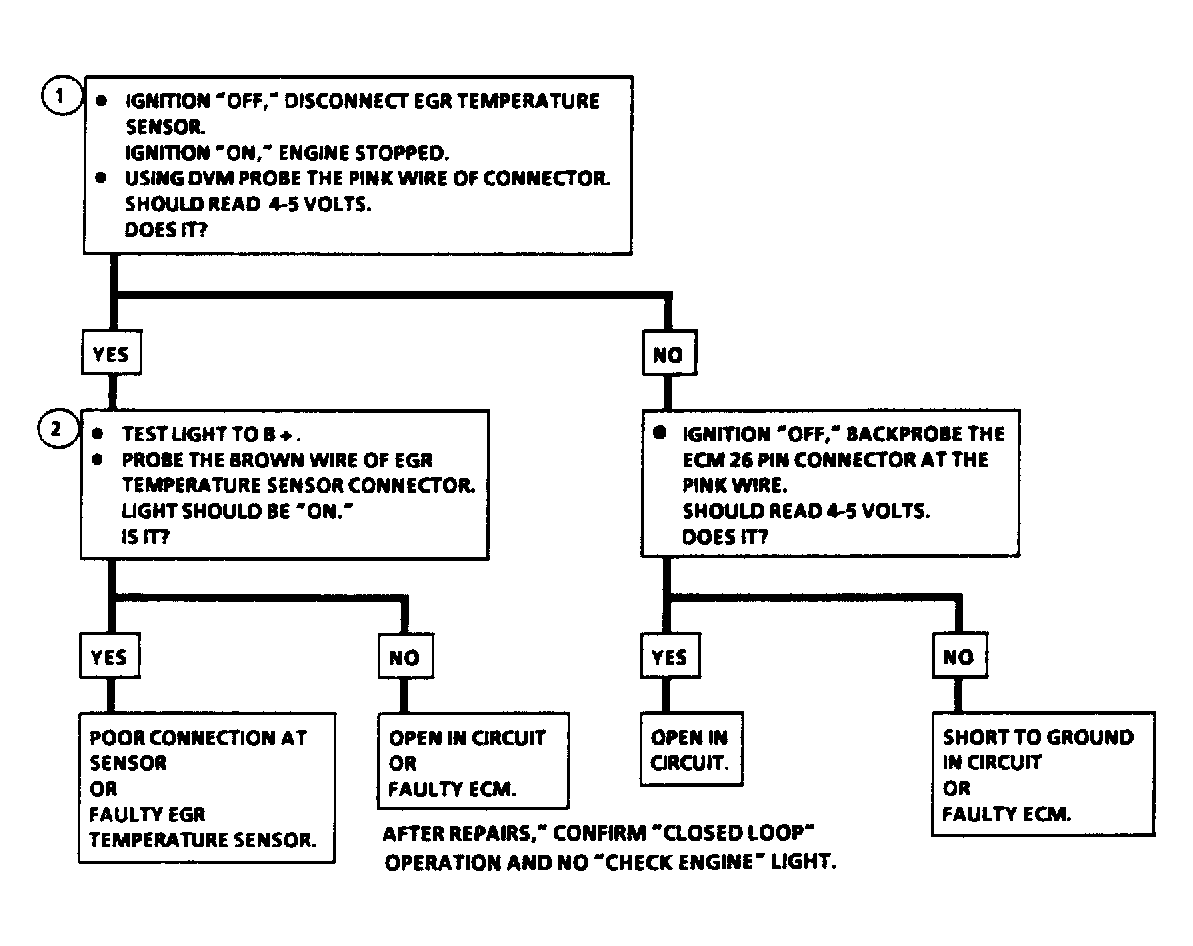

Fig 1: Code 71 Flow Chart, EGR Gas Temp. Sensor Ckt. (Calif. Only)

Courtesy of GENERAL MOTORS CORP.

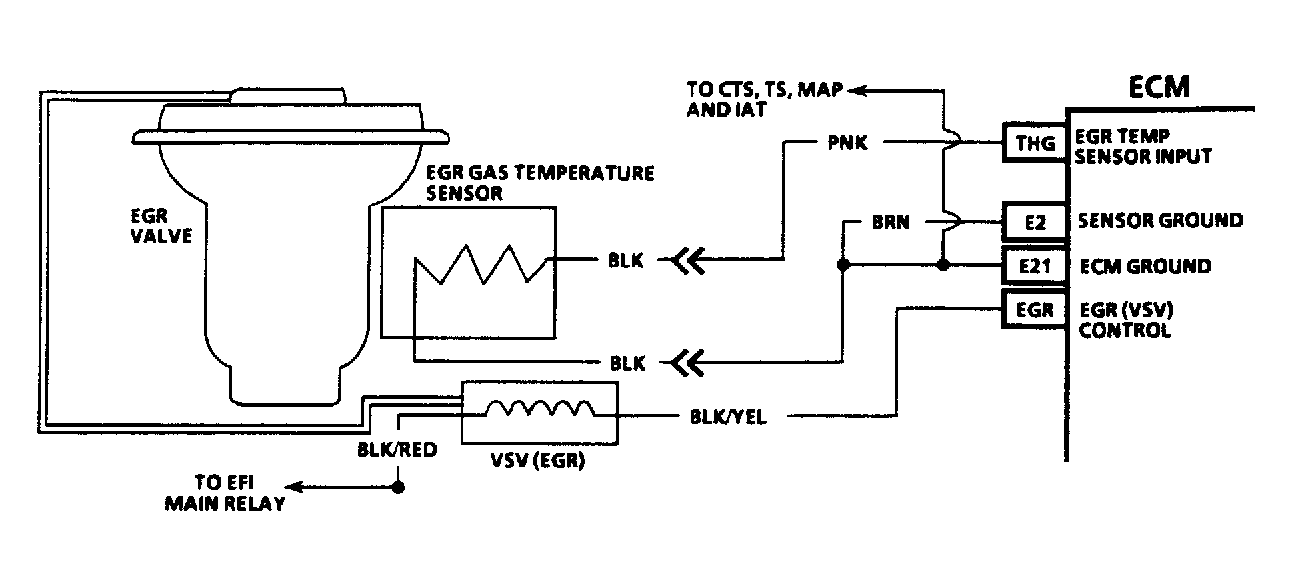

Fig 2: Code 71 Schematic, EGR Gas Temp. Sensor Ckt. (Calif. Only)

Courtesy of GENERAL MOTORS CORP.
