Compressor HVAC: Tools and Equipment

Special Tools:

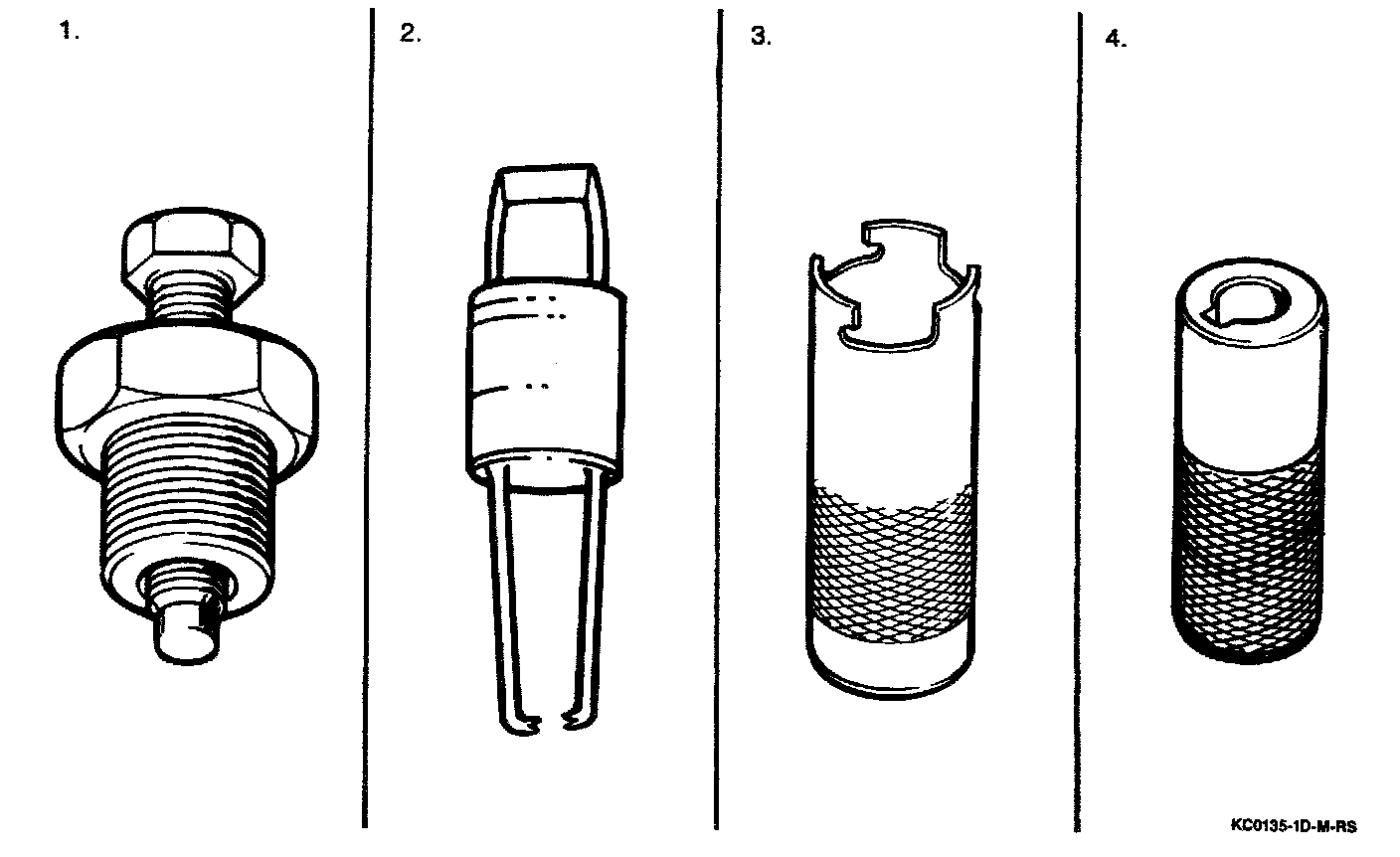

NO./TOOL NAME TOOL NO. USE

1. Pressure Plate Remover J 34878 To remove magnetic clutch
plate

2. Seal Plate Remover J 9393-A To remove seal plate

3. Shaft Seal Remover J 34879 To remove/install shaft seal

4. Key presser J 34880 To install key
