Diagnostic Flowchart

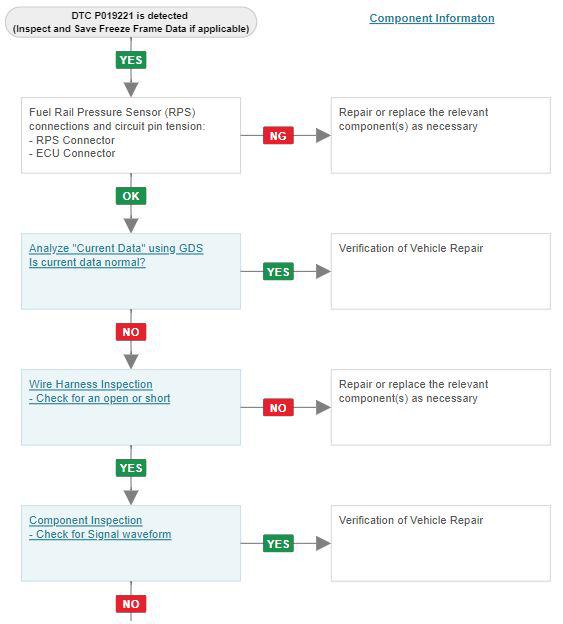

Fig 1: P0192-21 (1 Of 2)
G14737116Courtesy of HYUNDAI MOTOR AMERICA

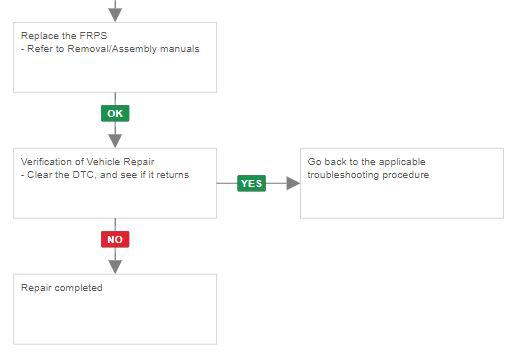

Fig 2: P0192-21 (2 Of 2)
G00618660Courtesy of HYUNDAI MOTOR AMERICA
