Service Information

Item Specification
Rated voltage 13.5V, 150A
Speed in use 1, 000 - 18, 000 RPM
Pin 1 (LIN)

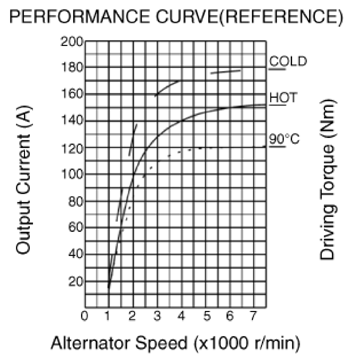

G16846704Courtesy of HYUNDAI MOTOR AMERICA
